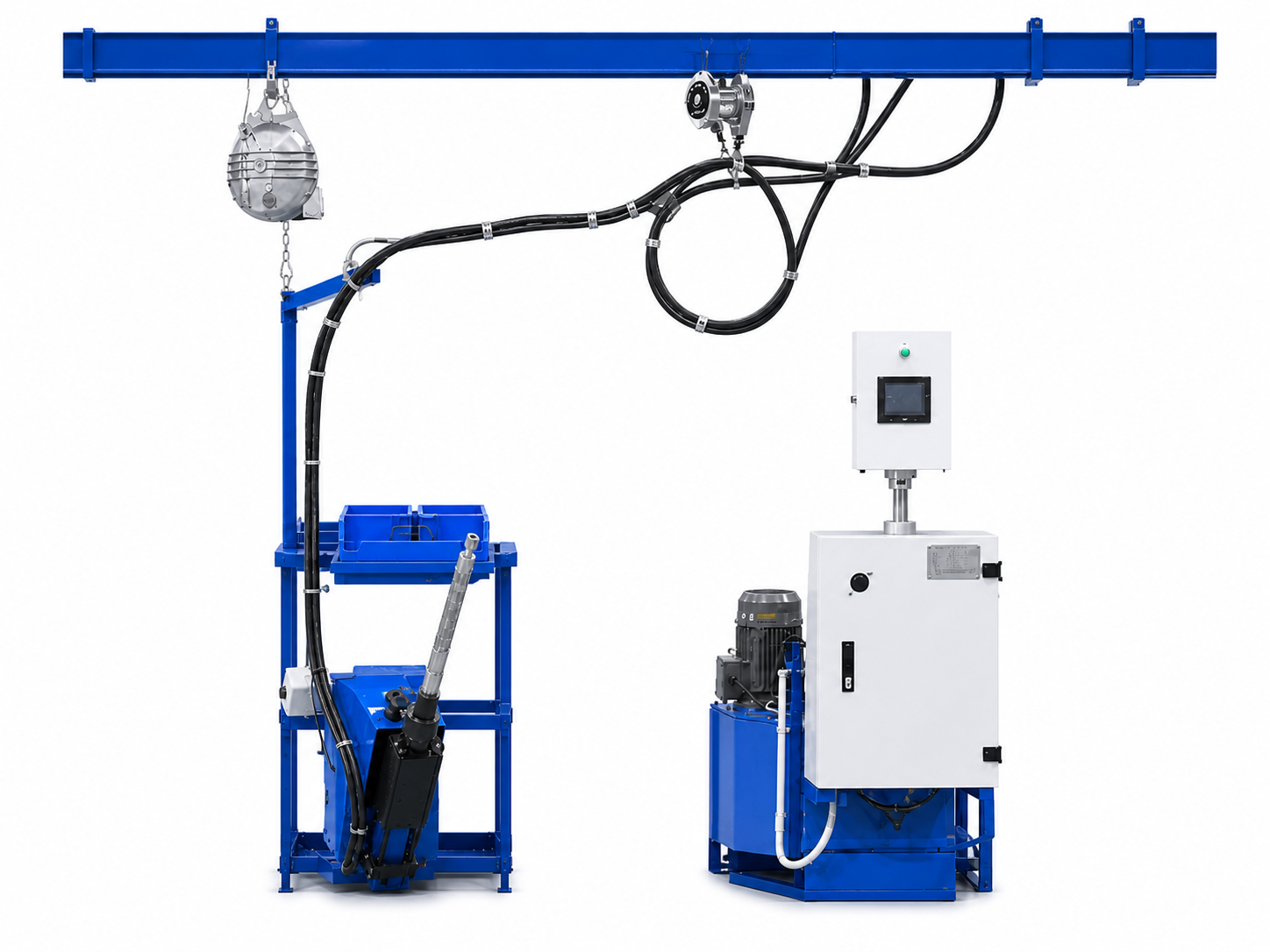

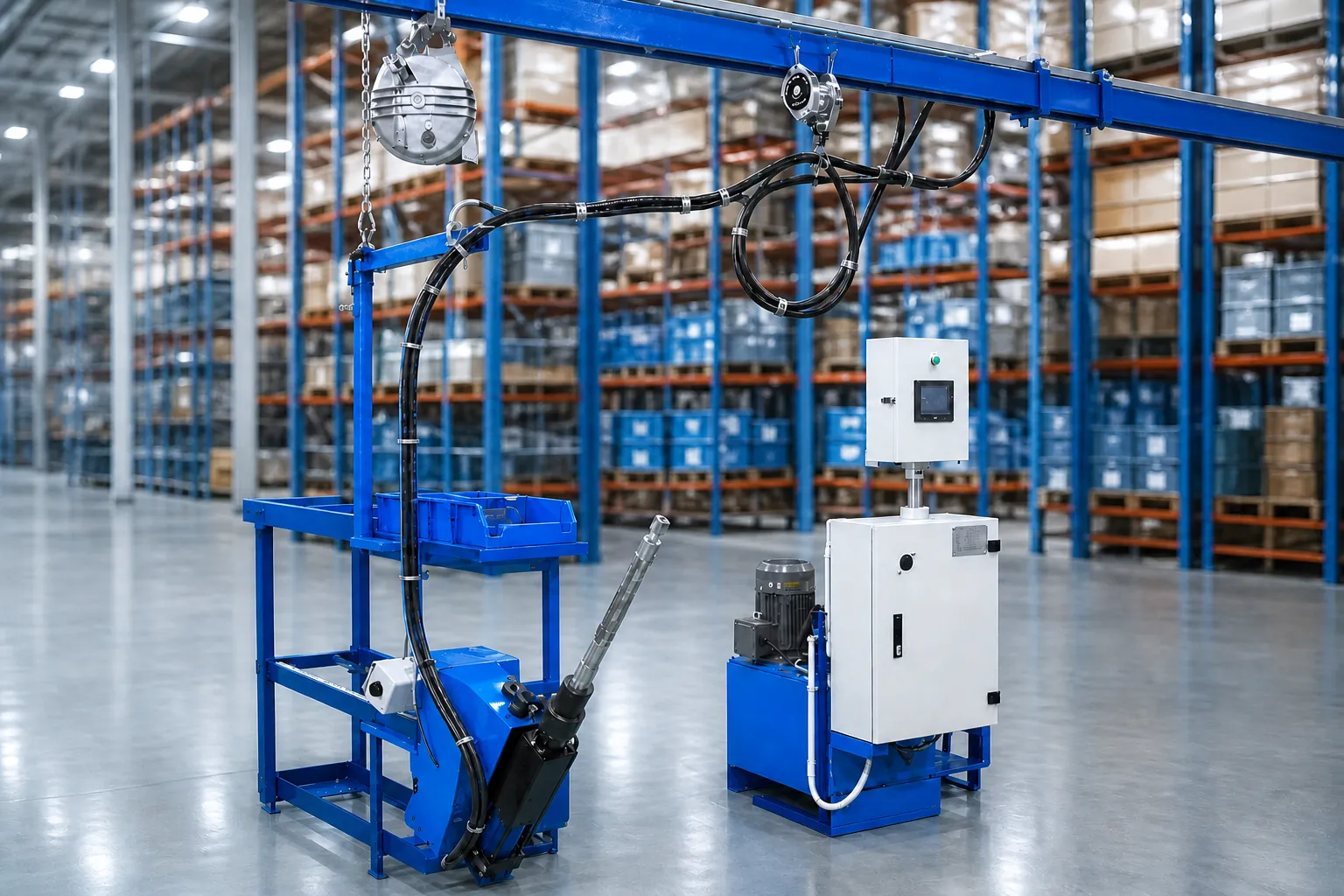

Seal bowl ball press

The seal bowl ball press is a specialized piece of equipment designed by CNC VINA for press-fitting operations, particularly in motorcycle manufacturing and assembly lines. The machine supports the assembly of components such as bearings into steering head cups, where high precision and stability are required. It helps reduce manual pressing operations, thereby reducing labor requirements and minimizing errors during assembly. The pressing process is controlled according to the technical specifications of each product and incorporates monitoring and inspection systems during operation to detect pressing processes that do not meet the required standards. As a result, businesses can minimize errors, reduce defective products, and maintain quality control directly at the assembly stage. So, how is the ball bearing and oil seal cup press machine applied in electric motorcycle production lines? The following article will provide a detailed overview of these applications.

Technical specifications of the ball bearing and oil seal cup press machine

Operating principle and process of the motorcycle ball bearing and oil seal cup press machine

The seal bowl ball press performs the assembly process using hydraulic pressing force, combined with a sensor system to monitor and control the pressing operation. From positioning the components and carrying out the pressing process to checking the results, each step is performed in sequence to ensure stable assembly and compliance with technical requirements. The operating principle and process are described below.

Operating principle of the seal bowl ball press

The ball bearing and oil seal cup press machine operates based on the principle of hydraulic pressing to position the bearing balls correctly within the oil seal cup assembly. Before pressing, the components are positioned and securely fixed in the working area to ensure a stable assembly process. When the machine starts its cycle, the hydraulic cylinder moves the pressing head downward and applies force to the ball, pressing it into the required position according to the technical specifications. The pressing force can be adjusted to suit each type of product using a manual adjustment valve.

Throughout the pressing process, the pressure sensor records the pressing force applied to the component, while the position sensor monitors the movement of the pressing head. These two parameters are recorded simultaneously to generate a force–displacement curve. The control system uses this data to evaluate whether the pressing process is operating normally and meeting the required specifications. Once the pressing process is completed, the pressing head returns to its original position, and the qualified product is transferred to the next production stage.

Operating process of the seal bowl ball press

Step 1: Positioning the components
The bearing balls and oil seal cup assembly are placed into the machine’s fixture. The components must be positioned correctly to ensure that the balls can be pressed accurately into the required position.

Step 2: Securing the product
The fixture securely holds the product in place during the pressing process, preventing movement or misalignment when the pressing head applies force to the balls.

Step 3: Starting the pressing cycle
Once the product has been correctly positioned, the operator starts the pressing cycle. The hydraulic cylinder begins moving the pressing head downward to apply force to the balls.

Step 4: Performing the pressing process
The pressing head applies the preset force to the balls, pressing them into the required position within the oil seal cup assembly. Depending on the requirements of each product, the pressing force and stroke can be adjusted to meet the specified assembly standards.

Step 5: Monitoring pressing force and stroke
As the pressing head moves, the pressure sensor records the pressing force while the travel sensor records the position of the pressing head. The data is used to generate a force–displacement curve, reflecting the progression of the pressing process.

Step 6: Checking the pressing result
The automatic inspection system analyzes the data collected during the pressing process and compares it with the preset technical requirements. If the pressing process shows abnormal conditions or does not meet the requirements, the system can detect the issue for timely handling, helping prevent defective products from being transferred to the next stage. This process provides an advantage over manual pressing by allowing the pressing operation to be checked directly as it takes place.

Step 7: Completing the cycle
After the pressing and inspection processes are completed, the pressing head returns to its original position. The product that meets the requirements is removed or transferred to the next production stage, after which the machine starts a new cycle.

Technical characteristics of the seal bowl ball press

The ball bearing and oil seal cup press machine uses a hydraulic cylinder to generate pressing force, making it suitable for assembling balls into oil seal cup assemblies. The pressing force can be adjusted using a manual adjustment valve, allowing the force to be set according to the technical requirements of each product.

• Adjustable pressing force according to technical requirements: The machine allows the pressing force to be adjusted using a manual adjustment valve. The operator can set the appropriate pressing force for each product according to its specified standards, helping ensure that the pressing process is performed correctly without applying excessive or insufficient force.
• Real-time monitoring of pressing force and stroke: The machine is equipped with a travel sensor and a pressure sensor to record the position of the pressing head and the applied force throughout the pressing process. These data are combined to generate a force–displacement curve, allowing the operator to easily monitor the pressing process of each product.
• Automatic inspection of pressing results: Based on the pressing force and stroke data, the control program checks whether the pressing process falls within the preset technical range. If abnormal pressing force, stroke, or other irregularities are detected, the system can identify products that do not meet the requirements for timely handling.
• Pressing stroke adjustment via touchscreen: Parameters related to the pressing stroke can be set and adjusted directly through the HMI touchscreen, making setup quick and convenient when changing products or pressing requirements.

Key features of the ball bearing and oil seal cup press machine

The seal bowl ball press stands out for its accurate pressing performance, precise control of pressing force and stroke, and automatic quality inspection during operation. The machine offers the following key features:

• In-process quality inspection: The machine not only performs the pressing operation but also monitors and evaluates the pressing process simultaneously. This allows pressing operations that do not meet the requirements to be detected during production, helping reduce defective products.
• Precise pressing force control: The pressing force can be adjusted according to the technical requirements of each product, ensuring stable assembly of the bearing balls and oil seal cup while minimizing the risk of insufficient or excessive pressing force.
• Easy pressing stroke adjustment: The operator can adjust the pressing stroke directly through the touchscreen without performing complicated mechanical adjustments. This is particularly convenient when the machine is used for different products or various pressing requirements.
• Visual monitoring through a force–displacement curve: The curve generated from sensor data allows the operator to easily monitor the characteristics of the pressing process and identify abnormal conditions.
• Reduced reliance on manual inspection: The combination of sensors, inspection programs, and the control system enables product evaluation to be performed automatically, contributing to consistent quality throughout the production process.

Applications of the ball bearing and oil seal cup press machine in electric motorcycle assembly lines

The ball bearing and oil seal cup press machine is used for assembling bearings into motorcycle steering head cups, helping position the bearings accurately with appropriate and consistent pressing force. The machine uses a hydraulic cylinder to generate pressing force, combined with a travel sensor and pressure sensor to monitor the pressing process, thereby inspecting and detecting assembly operations that do not meet the required standards.

In addition to assembling bearings into steering head cups, the machine can also be applied to press-fitting operations in manufacturing facilities, particularly for components that require pressing force and stroke to be controlled during assembly. Automating the pressing process helps reduce manual operations, improve process stability, and support product quality control.

CNC VINA provides a range of press machines, assembly machines, and automated production lines for the automotive and motorcycle industries, meeting requirements for automation, quality control, and stable operation in industrial production environments.

Conclusion

The seal bowl ball press is a modern and effective solution for motorcycle production lines. With its intelligent design and advanced technology, the machine helps increase productivity while reducing operating and maintenance costs. Its stable operation and long service life are key advantages, providing long-term value for businesses. In addition, the use of the ball bearing and oil seal cup press machine contributes to improved product quality and helps meet the stringent requirements of the market. This makes it an ideal choice for businesses looking to improve production efficiency and optimize profitability. If you are looking to integrate this type of machine into an electric motorcycle production line, please contact CNC VINA for consultation and the most suitable solution for your production requirements.
