Oil dispenser

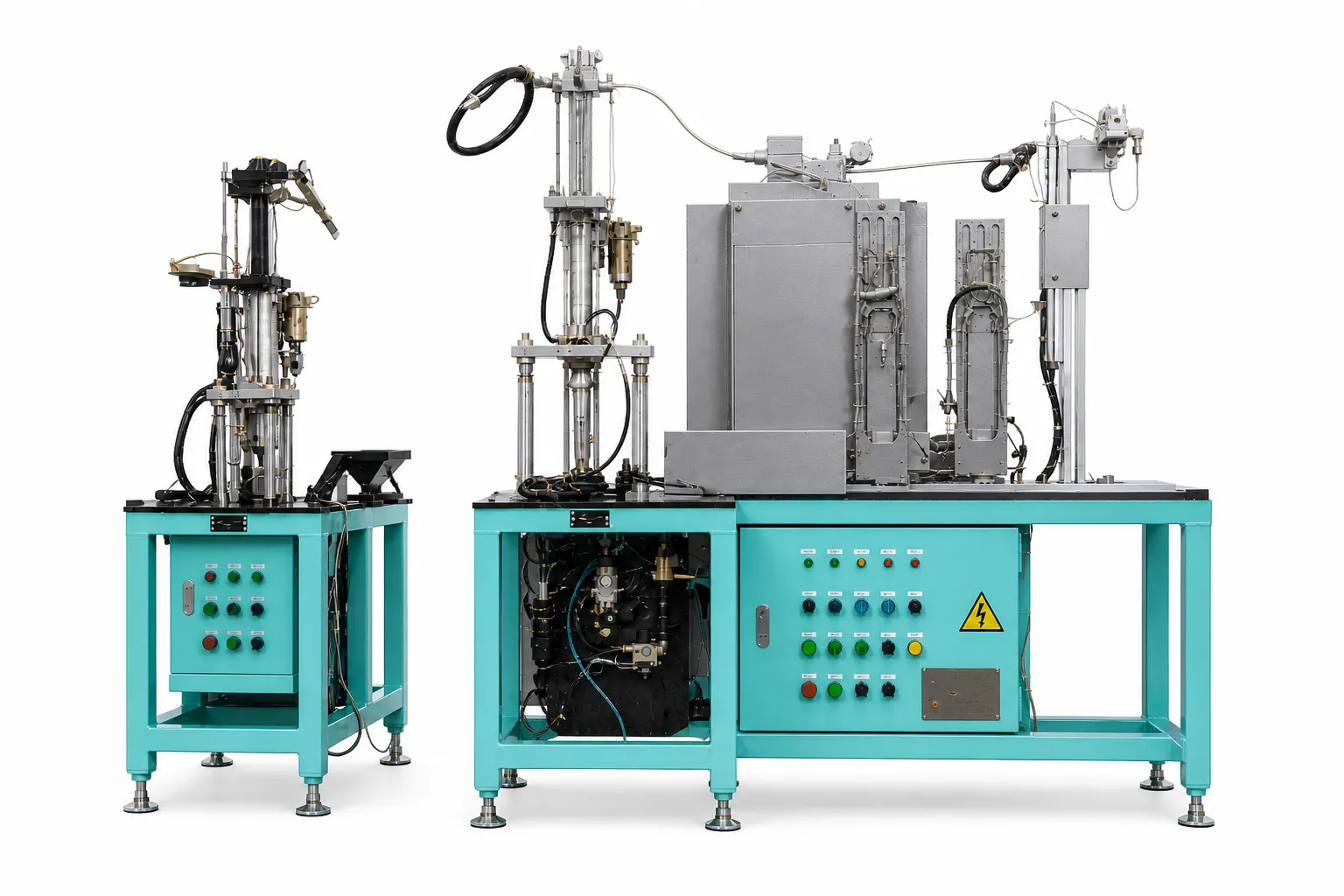

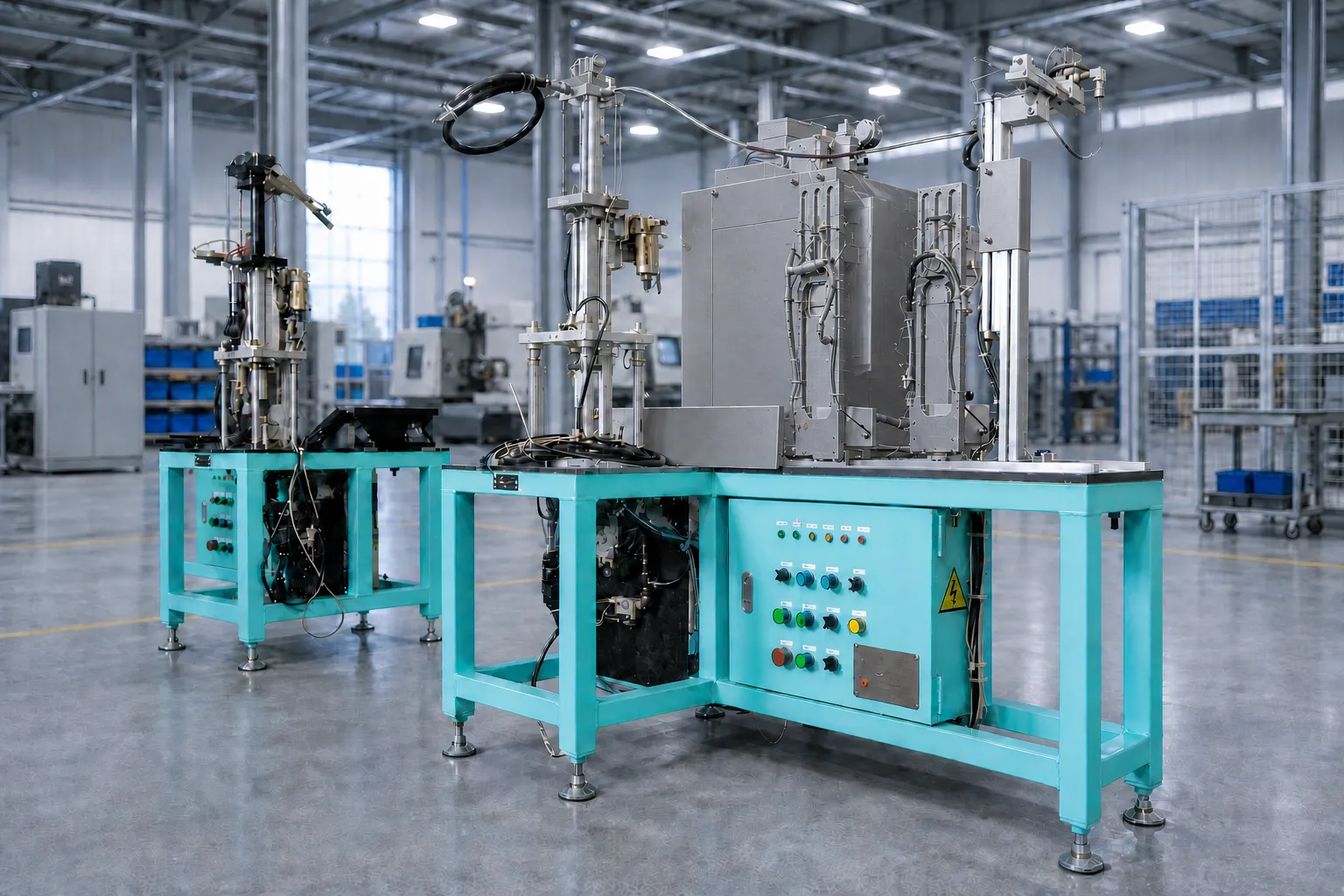

The automatic oil filling machine is a specialized piece of equipment designed to supply and accurately dispense oil into shock absorber and motorcycle fork assemblies on automotive and motorcycle assembly lines. Equipped with a piston-based metering mechanism, oil-level sensors, and an automatic control system, the machine precisely controls the required oil volume for each product while reducing manual operations during assembly. In the production of shock absorbers and motorcycle forks, the oil volume needs to be consistently controlled to meet the technical requirements of each model. Therefore, using an automatic oil filling machine not only helps shorten operating time but also contributes to maintaining consistent quality across products. CNC VINA designs and manufactures the machine according to the actual requirements of each production line, with customizable fixtures, oil filling positions, and control programs to suit different products.

What is an oil filling machine?

An oil filling machine is an automated piece of equipment that supplies a preset amount of oil to components requiring oil filling. In motorcycle manufacturing and assembly, the machine is commonly used to fill oil into shock absorber and fork assemblies.

Instead of requiring workers to manually measure and fill the oil, the machine automatically controls the oil volume according to the preset program. Sensors and the metering mechanism monitor the oil filling process, while sensors integrated into the fixture confirm that the component has been correctly positioned before the machine starts the cycle.

As a result, the machine is suitable for production lines that require fast oil filling, consistent metering, and continuous operation.

The importance of accurate oil filling for shock absorbers

Shock absorber oil, also known as fork oil, is an important component of shock absorber and motorcycle fork assemblies. The oil volume must meet the technical requirements of each product to ensure that the assembly operates as designed.

If the oil volume varies between products, the quality and performance consistency of the shock absorber assembly may be affected. In high-volume production, manually controlling the oil filling process can also lead to variations between products.

Therefore, automating the oil filling process offers several benefits:

• Control the oil volume according to the preset value.
• Minimize variations caused by manual operations.
• Shorten the oil filling time for each product.
• Maintain consistency among products within the same production batch.
• Improve the productivity of the assembly line.

Main components and systems of the oil filling machine

Depending on the product and production line requirements, CNC VINA can design the oil filling machine with different configurations. The main components may include:

• Piston-based oil metering mechanism: The piston mechanism is used to accurately meter the required amount of oil for each product. The oil volume can be set according to the requirements of each model, helping maintain stable and accurate filling.
• Sensor system: Sensors are used to identify the product status and monitor operating conditions during the oil filling process. The system can check whether the component has been correctly positioned and securely clamped before starting the cycle, helping prevent the machine from operating when the product is not properly positioned.
• Component clamping fixture: The fixture is designed according to the shape and requirements of each component. Its flexible design securely holds the product during oil filling and facilitates adjustment or replacement when switching to another model.
• Oil filling head: The oil filling head supplies oil to the required position on the shock absorber or motorcycle fork assembly. Depending on the product design, the filling head can be positioned and adjusted to match the actual oil filling location.
• Control system: The automatic control system manages the machine's operating sequence, from checking the fixture and product positioning to oil filling and cycle completion. The necessary parameters can be configured according to the requirements of each product.

Operating principle of the automatic oil filling machine

The automatic oil filling machine combines a metering mechanism, sensors, fixtures, and an automatic control system to perform the oil filling process according to a preset sequence. From product positioning and inspection to oil metering, filling, and cycle completion, each step is automatically controlled to ensure consistent oil volume, reduce manual operations, and meet the requirements of continuous production.

Operating process of the automatic oil filling machine

The machine operates through a combination of a metering mechanism, sensors, fixtures, and an automatic control system. The basic operating process is as follows:

Step 1: Place the component in the fixture
The operator places the shock absorber or motorcycle fork assembly into the machine fixture. The fixture securely holds the component to ensure accurate positioning during the oil filling process.

Step 2: Check the product position
Sensors check the product status and confirm that the component has been correctly positioned and clamped. Once the safety and positioning conditions are satisfied, the machine allows the cycle to begin.

Step 3: Meter the oil
The piston-based metering mechanism dispenses the required amount of oil according to the preset value for the product.

Step 4: Fill the oil
The oil filling head supplies the metered amount of oil to the required position of the shock absorber or motorcycle fork assembly.

Step 5: Complete the cycle
Once the preset oil volume has been reached, the system completes the filling process and returns the machine to the ready state for the next cycle.

Automatic control of the operating sequence reduces dependence on manual operations and makes the machine suitable for production lines requiring high productivity and stable operation.

Operating procedure of the oil flling machine

To ensure stable operation, the machine can be operated according to the following main steps:

1. Check the power supply, control system, and overall condition of the machine.

2. Check the filling oil and ensure that it meets the product requirements.

3. Place the shock absorber or motorcycle fork assembly into the fixture.

4. Check the sensors and confirm that the product is correctly positioned.

5. Set or select the program corresponding to the product model.

6. Start the automatic oil filling cycle.

7. Monitor the machine status and filling results.

8. Once the cycle is completed, remove the product and transfer it to the next process.

Operating parameters and specific procedures can be adjusted according to the design of each production line and the customer's technical requirements.

Applications of the automatic oil filling machine in production

The automatic oil filling machine is mainly used in motorcycle assembly lines, particularly for the following applications:

• Filling oil into shock absorber and motorcycle fork assemblies during the motorcycle assembly process.

• Integrating into shock absorber production lines to automate the oil filling process and connect it with other assembly processes.

• Applying to processes that require a specific amount of fluid to be supplied to each product, depending on technical requirements.

• Integrating into automated assembly lines.

• When combined with conveyors, robots, or other assembly equipment, the machine can become an integrated process within the overall production line. This helps reduce manual material handling and feeding operations while facilitating better control of the production sequence.

The automatic oil filling machine for motorcycle shock absorbers is a suitable solution for automating the oil filling process in manufacturing and assembly lines. With a piston-based metering mechanism, sensor system, dedicated fixtures, and automatic control capabilities, the machine helps maintain consistent oil volume, reduce manual operations, and improve productivity. In addition to filling oil into shock absorber and motorcycle fork assemblies, the equipment can be designed and customized according to product models, production requirements, and production line configurations. This makes it a suitable solution for businesses looking to gradually increase automation, maintain consistent quality, and optimize production efficiency. If you are looking for an automatic oil filling machine, an oil filling machine for motorcycle shock absorbers, or an automation solution for an electric motorcycle assembly line, contact CNC VINA for consultat
