Rim detail washing machine (Model: RCWM-01)

The rim detail washing machine is used to remove oil, dust, dirt, and other contaminants from product surfaces during the manufacturing process. The equipment is designed to automate the washing process, reducing reliance on manual cleaning methods while improving the consistency of the cleaning process. The machine can handle various types of ring-shaped parts with different sizes, shapes, and cleaning requirements. The washing and drying processes are carried out continuously according to a preset cycle, helping save time and making operation more convenient. The automatic ring-shaped parts washing machine researched and manufactured by CNC VINA is a suitable solution for production lines that require effective control of the cleaning process before products move on to subsequent machining or assembly stages. So, how does the ring-shaped parts washing machine help replace manual cleaning operations? In the following article, CNC VINA will provide more detailed information on this solution.

Technical specifications of the RCWM-01 rim detail washing machine

Construction of the automatic ring-shaped parts washing machine

The rim detail washing machine is designed to remove oil, dust, dirt, and other contaminants from the surface of parts before they are transferred to the next production stage. The machine combines product positioning, rotation, washing, and air drying in a single cycle, allowing the cleaning process to be carried out quickly and consistently compared with manual cleaning methods.

The machine consists of several main functional units that work together throughout the washing and drying process:

- Washing and drying system: This unit performs the cleaning and drying processes directly. It is equipped with washing nozzles and air nozzles that act on the product surface. During operation, the part is held and rotated by a roller mechanism, allowing different areas of the ring-shaped part to pass through the spray area. Water is used as the washing solution and is circulated within the system. After the washing process is completed, the air nozzles blow-dry the part to remove any remaining water from its surface before the product is removed from the machine.

- Spray nozzle position adjustment unit: Since ring-shaped parts can vary in size and structure, the machine is equipped with a mechanism that allows the spray nozzle positions to be adjusted according to each product model. The operator can set the nozzle position to suit the diameter and areas requiring cleaning. This adjustment mechanism allows the machine to handle different types of ring-shaped parts without requiring a complete system change when switching between product models.

- Product clamping and rotation unit: The part is placed in the working position and secured by a clamping mechanism combined with rollers. Spray nozzles are mounted on the clamping arm to deliver the washing solution directly to the areas requiring cleaning. When the cycle starts, the rotation mechanism continuously rotates the part while the spray nozzles apply the washing solution, increasing contact between the water and the product surface. After the washing process is completed, the part continues to rotate during the air-drying process before the cycle is finished.

- Mist collector system: During the washing of parts contaminated with oil, oil vapor and oil mist may be generated inside the working area. The mist collector system is used to extract and collect oil mist, helping prevent it from spreading into the surrounding environment. It also helps control the amount of oil mixed into the washing solution, contributing to maintaining the quality of the circulating water and reducing the rate at which the solution becomes contaminated with oil.

- Control system: The machine features two operating modes: automatic and manual, supporting both production operations and machine inspection or setup. In automatic mode, the operator only needs to place the product in the correct position, start the cycle, and remove the product once the machine has completed the process. Manual mode is used when checking individual mechanisms, adjusting spray nozzle positions, or carrying out machine setup and maintenance operations.

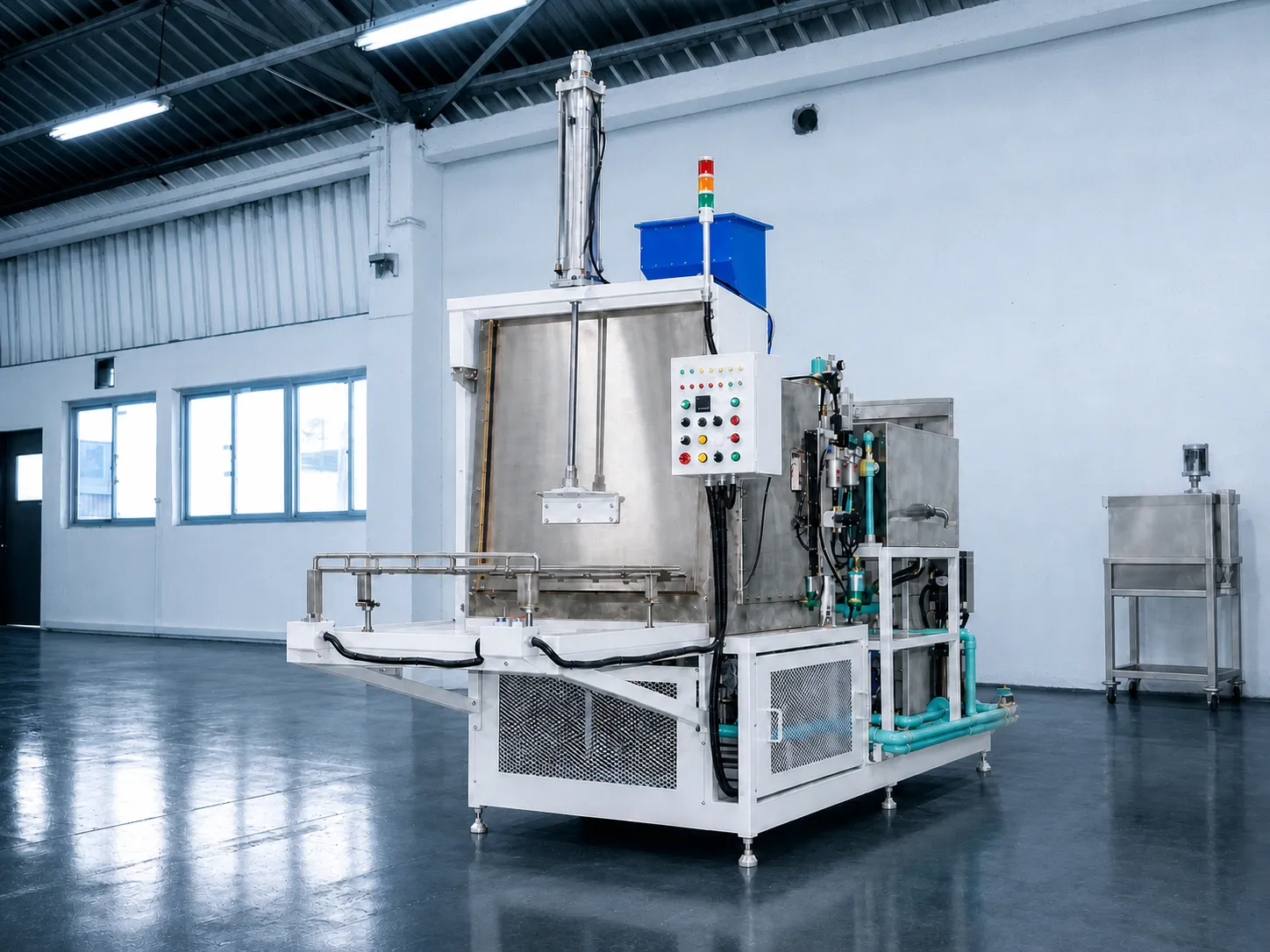

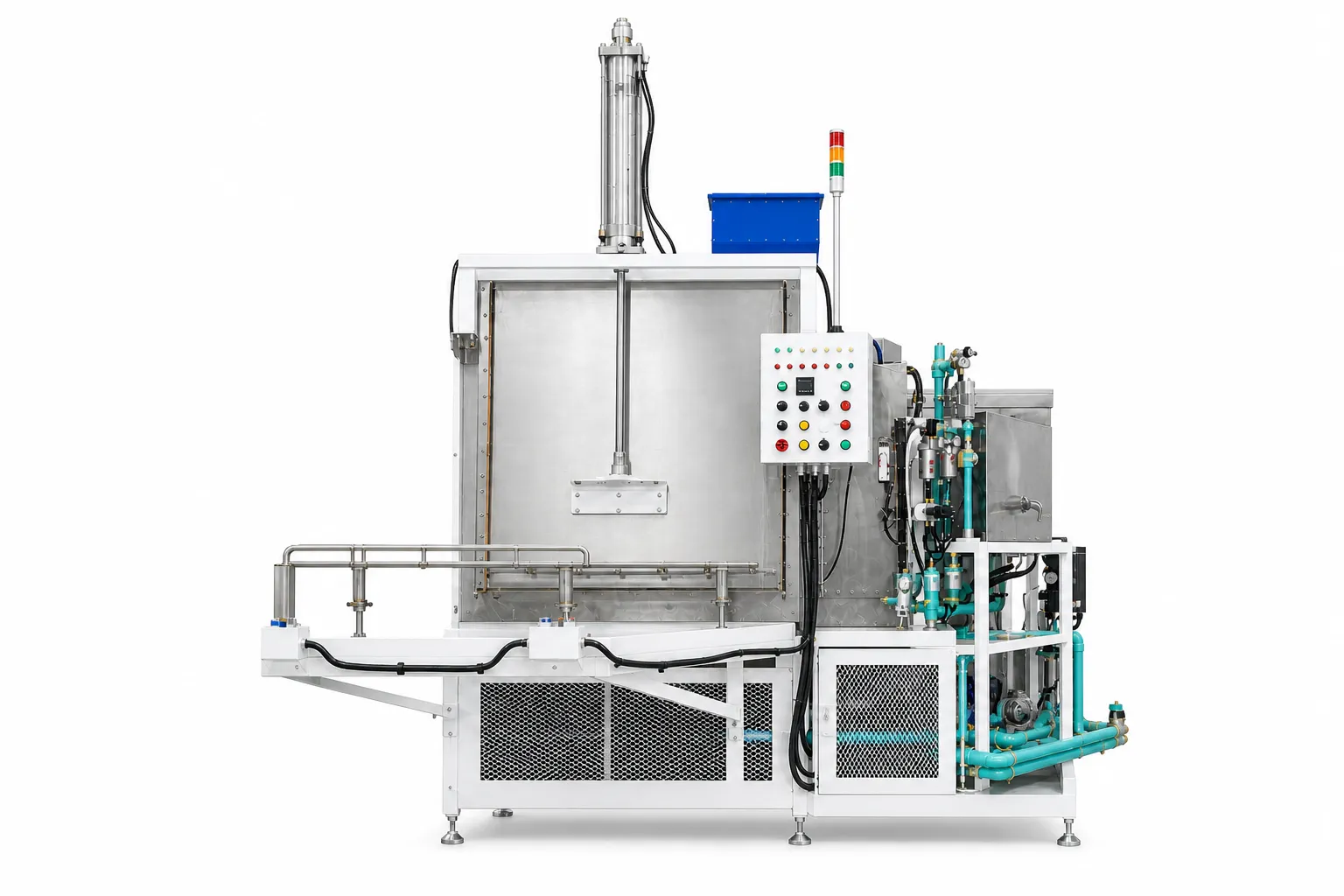

Image of automatic rim washing machine designed and manufactured by CNC VINA for customer

Operating principle and maintenance procedure of the rim detail washing machine

The ring-shaped parts washing machine operates through a sequence of product positioning, clamping, rotation, washing, and air drying. Following the proper operating procedure combined with regular maintenance helps the machine operate stably, maintain cleaning performance, and extend its service life.

Operating principle of the automatic ring-shaped parts washing machine

The machine operates according to the following basic sequence: product positioning → clamping and rotation → washing → air drying → cycle completion. The detailed operating process of the ring-shaped parts washing machine is as follows:

Step 1: Positioning the product

The operator places the ring-shaped part on the roller assembly and positions it correctly in the working area. Depending on the size and model of the product, the spray nozzle positions are adjusted in advance to ensure that the spray reaches the areas requiring cleaning.

Step 2: Clamping and starting rotation

Once the product is correctly positioned, the clamping mechanism securely holds it in place. When the cycle is activated, the rollers begin rotating the part at the preset speed. Rotating the product allows different areas of the ring to pass through the spray zone, helping minimize areas being missed during the cleaning process.

Step 3: Washing

The pump supplies washing water to the spray nozzles. At the same time, the rotation mechanism continues to rotate the part, allowing the washing water to reach multiple areas of its surface. The washing time can be adjusted according to the product requirements. The reference cycle time is approximately 70 seconds, while the actual processing time can be adjusted depending on the level of contamination, product size, and cleaning requirements of each type of part.

Step 4: Air drying

After the washing process is completed, the system switches to the air-drying mode. Air is blown onto the product surface to remove any remaining water, helping the part become drier before it is removed from the machine. During this process, the product continues to rotate to support water removal from the entire surface.

Step 5: Cycle completion

When the washing and drying cycle is completed, the mechanisms return to their standby positions. The product is released from the clamping mechanism and removed from the machine before being transferred to the next production stage. The used washing solution is collected and returned to the circulation system. At the same time, the mist collector extracts oil mist generated inside the working area, helping maintain a cleaner operating environment and reduce the spread of oil mist to the surrounding area.

Maintenance procedure for the ring-shaped parts washing machine

The ring-shaped parts washing machine designed and manufactured by CNC VINA features a clear operating procedure with convenient controls, making it easy for operators to use during production. However, to ensure stable and safe operation and maintain the required cleaning performance, users should follow the operating instructions provided with the machine as well as the safety regulations applicable to the production area.

• Before starting the machine, check the condition of the mechanical components, product clamping and rotation mechanisms, pump system, and spray nozzles. At the same time, check the power supply, water supply, and compressed air supply to ensure that all systems receive the required utilities. The operator should also check that the washing solution meets the specified requirements, that there are no leaks in the piping, and that the working area is free of obstacles that could affect machine operation.
• During operation, the operator should monitor the washing and air-drying cycles and pay attention to any abnormal signs such as unusual noise, vibration, changes in spray pressure, or leakage. If any abnormality or malfunction is detected, the machine should be stopped and inspected according to the relevant technical instructions before operation is resumed.
• Regular cleaning and maintenance should be carried out for the entire machine and its associated equipment. Particular attention should be given to checking the pump system, cleaning the spray nozzles, inspecting the piping, checking the drive mechanisms, electrical system, and compressed air supply equipment. Proper and timely maintenance helps reduce the risk of malfunctions, maintain cleaning performance, and extend the service life of the equipment.

Following the proper operating procedures, combined with regular inspection and maintenance, helps the CNC VINA ring-shaped parts washing machine maintain stable operation, ensure user safety, and meet long-term production requirements.

Key features of the automatic ring-shaped parts washing machine

The rim detail washing machine is designed to automate the cleaning process, reducing manual operations and shortening product processing time. By integrating washing spray, product rotation, and air drying into a single system, the machine can flexibly meet different cleaning requirements. The following are the key features of the equipment.

• The machine has two operating modes: automatic and manual. This allows operators to easily and quickly wash parts such as motorcycle rims, automotive steering wheels, and ring-shaped components used in transformers.
• Equipped with cylinders, a clamping arm with spray nozzles, and rollers, the machine rotates, washes, and air-dries the parts in a much shorter time compared with manual cleaning methods. The cycle time is approximately 70 seconds and can be adjusted according to production requirements, helping increase washing throughput.
• The spray nozzle positions can be adjusted to suit different ring models. This provides greater flexibility during washing and allows the machine to handle different product configurations, helping optimize the initial equipment investment.
• The machine uses water as the washing solution, providing an economical solution while being more environmentally friendly and convenient for operators.
• The mist collector extracts oil mist generated during the washing process, helping limit oil mist dispersion and maintain a cleaner working environment.

How is the RCWM-01 ring-shaped parts washing machine used?

The automatic ring-shaped parts washing machine designed and manufactured by CNC VINA integrates washing spray, product rotation, and air drying into a single operating cycle. The machine allows the spray nozzle positions to be adjusted for different product models and supports both automatic and manual operation. It is suitable for various ring-shaped parts, including motorcycle rims, automotive steering wheels, and ring-shaped components used in the automotive and motorcycle industries.

• The machine is designed with two operating modes: automatic and manual, making it suitable for different production requirements. In automatic mode, the operator only needs to place the part in the correct position and start the cycle. The machine then automatically performs the clamping, rotation, washing, and air-drying processes according to the preset cycle. Manual mode is used when checking individual mechanisms, adjusting spray nozzle positions, or performing setup and maintenance operations. This makes machine operation and inspection more convenient.
• The machine integrates cylinders, a clamping arm, spray nozzles, and rollers to perform the required processes within a single cycle. After the part is positioned, the clamping mechanism securely holds it in place while the rollers rotate the part. As the product rotates, the spray nozzles continuously apply the washing solution to its surface, allowing the water to reach multiple areas of the part. After the washing process is completed, the system continues with air drying to remove any remaining water from the surface.
• Ring-shaped parts may vary in diameter, dimensions, and surface structure. Therefore, the machine's spray nozzle system is designed with adjustable positions to accommodate different product models.
• The machine uses water as the washing solution, making it suitable for cleaning various ring-shaped parts during production. Depending on the machine design, the used washing solution can be collected and recirculated within the system, helping reduce water consumption during operation.
• During the cleaning of parts containing or contaminated with oil, oil mist and oil vapor may be generated inside the machine. The machine is equipped with a mist collector system to extract and collect the oil mist generated during operation. This system helps limit the dispersion of oil mist into the working area, contributing to a cleaner production environment and reducing workers' exposure to oil vapor and mist during machine operation.

The ring-shaped parts washing machine not only meets product cleaning requirements but also contributes to improving the overall efficiency of the production process. Introducing an automatic washing system helps reduce manual operations, save processing time, and maintain greater consistency during production. At the same time, a properly designed system can contribute to a cleaner and more convenient working environment for operators. However, to ensure stable operation and maintain long-term performance, operators should pay attention to regular inspection and maintenance throughout the machine's service life. Each product and production line has its own requirements regarding dimensions, cleaning methods, and production capacity. If you are interested in the RCWM-01 ring-shaped parts washing machine or auxiliary machinery for the automotive and motorcycle manufacturing industry, contact CNC VINA for consultation and a quotation tailored to your specific product requirements.
