Engine number engraving machine is a piece of equipment used to mark serial numbers, product codes, and identification information directly onto engines during the production process. Assigning a unique identification code to each product not only makes product identification easier but also helps businesses manage information and facilitate data traceability throughout the product lifecycle. The machine can be integrated with a barcode reader to receive input data, process the information, and then transmit it to the marking head according to the preset program. In addition to the marking process, the system can incorporate a camera inspection unit to verify the marking results, helping reduce incorrect codes or marking errors. Depending on the product model, the machine can be configured with corresponding marking programs and data, while also allowing additional product codes to be added when required. The integration of the marking equipment, data management software, and inspection system helps organize the product identification process more consistently and reduces manual data-entry operations. The engine number marking machine designed and manufactured by CNC VINA can be integrated into production lines to meet specific requirements for code marking and product information control.

Technical specifications of the engine number marking machine

Structure of the engine number marking machine

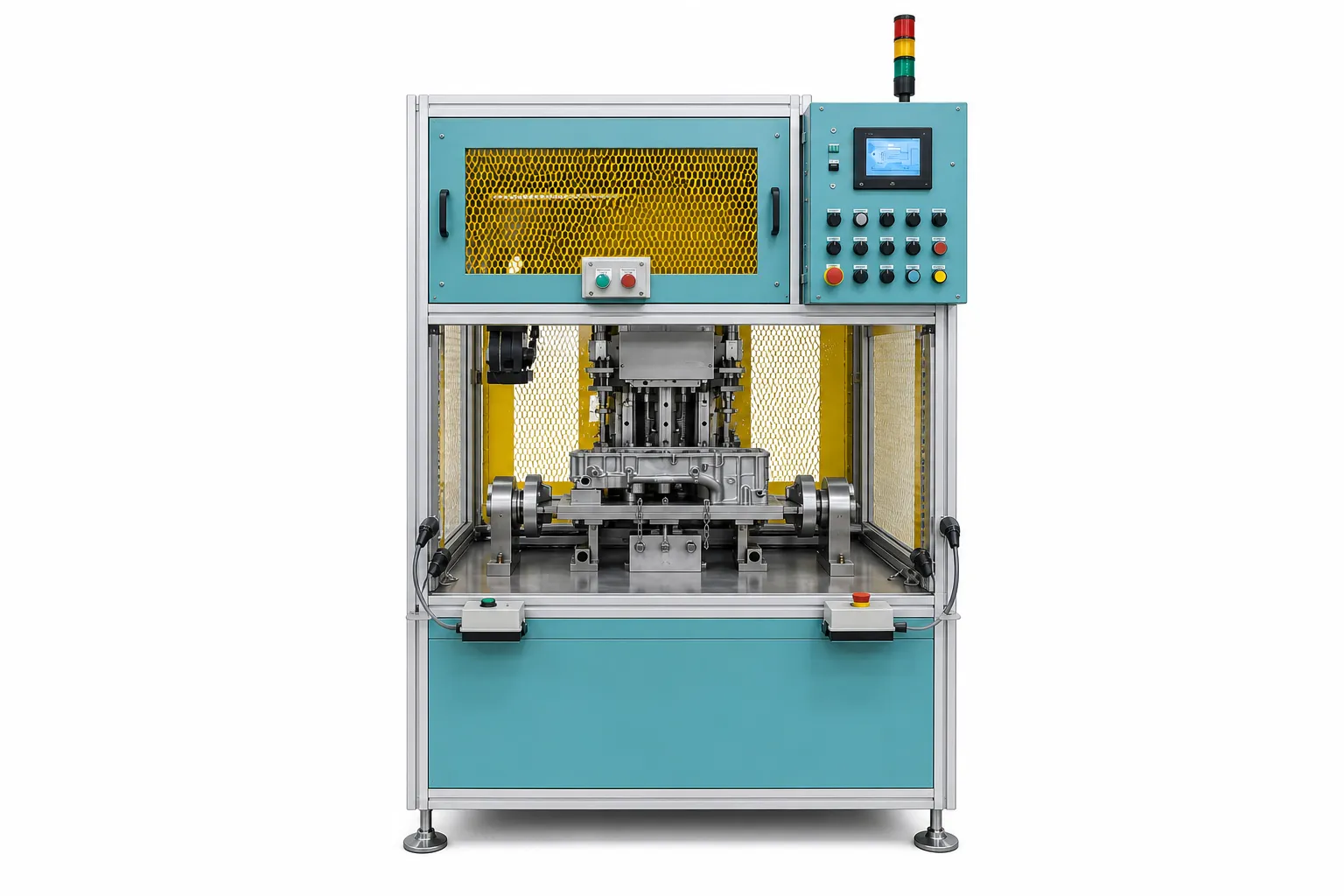

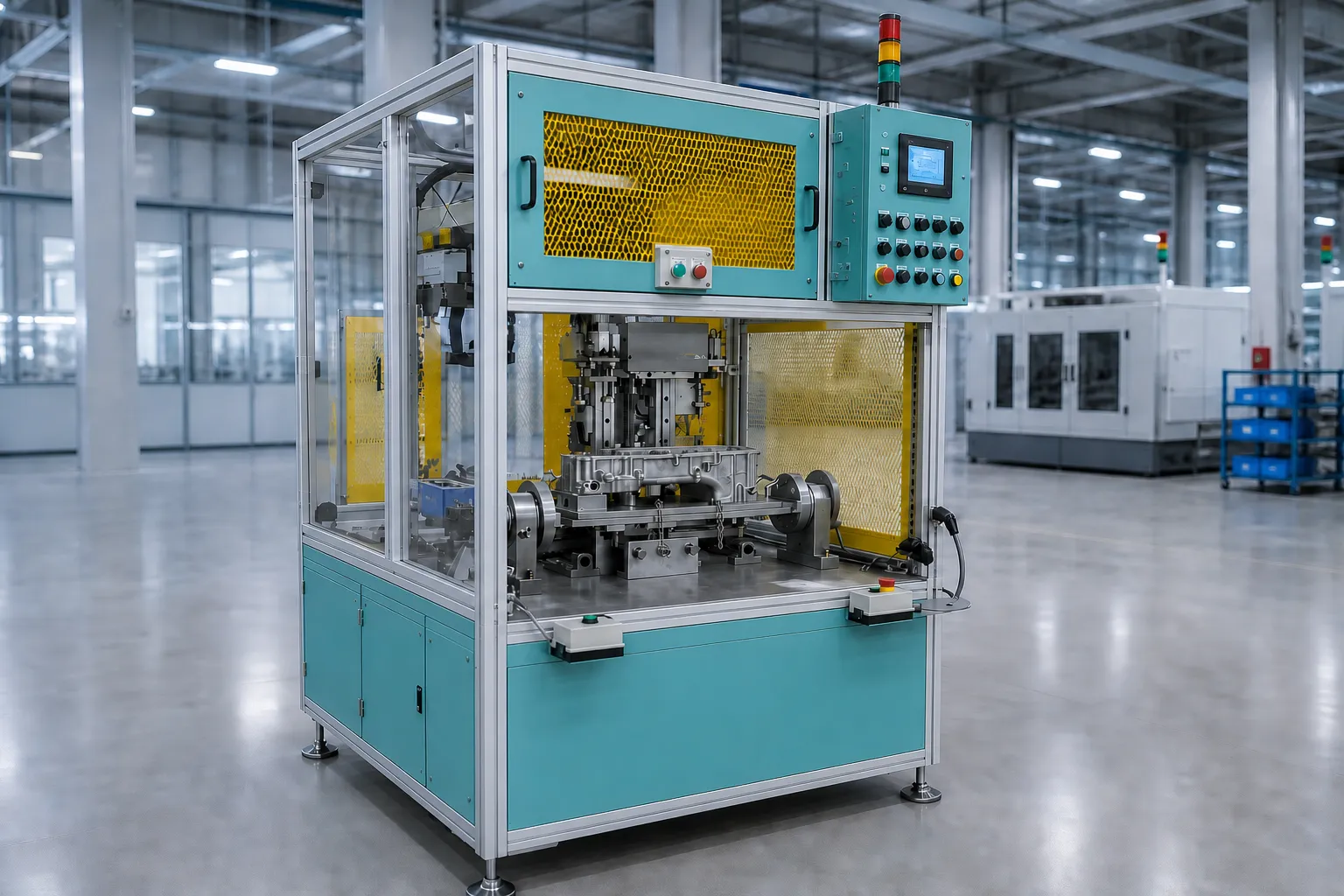

The engine number marking machine is a system designed to mark numbers, symbols, or identification information onto specified positions on engines and related components. Depending on production requirements, the machine can also be integrated with barcode reading, camera-based identification, and post-marking inspection functions.

To ensure accurate and synchronized marking, the machine is generally composed of multiple equipment assemblies working together. Each assembly performs a specific function, from securing the product and entering data into the system to carrying out the marking process and inspecting the results. The basic structure of the machine includes the following main components:

Machine frame assembly

The machine frame assembly is the main structure used to install and connect the mechanisms of the entire system. The frame is designed with sufficient rigidity to minimize vibration during the marking process while providing space for the marking head, fixture, camera, code reader, and control components.

Depending on the product dimensions and production line layout requirements, the size and structure of the machine frame can be customized for each engine model or component to be marked.

Product fixture and positioning mechanism

The fixture is used to securely hold the engine or component in the correct position throughout the marking process. Since each product model may have different shapes, dimensions, and marking positions, the fixture is generally designed specifically for each product model.

Locating pins, support points, and clamping mechanisms are arranged according to the actual shape of the product. Accurate positioning helps minimize positional deviations during marking and ensures that the required information is marked in the correct area.

For production lines handling multiple engine models, the fixture can be designed as a replaceable or modular system to facilitate product changeover.

Laser marking head assembly

The laser marking head assembly is the component that directly performs the marking process on the product surface. Depending on the material and marking requirements, suitable parameters such as laser power, marking speed, marking depth, and working area can be configured.

The marking head is mounted on a motion mechanism or dedicated mounting assembly, allowing it to accurately reach the required marking position. The marking content may include engine numbers, product codes, identification symbols, or other information specified in the production process.

Barcode reader

The barcode reader is used to identify the product code or data code before the marking process. After scanning, the code information can be transmitted to the control system or computer for comparison with the production data.

Integrating a code reader helps reduce the risk of incorrect data entry while also supporting data management and product traceability throughout the production process.

Computer and data management system

The computer, synchronized with the control system, is responsible for receiving, processing, and managing data related to the marking content. The operator can select the appropriate program or product code for each engine model.

Depending on the requirements of the production line, the system can be connected to a database or production management software to transmit and store information. Data such as product codes, marking content, and inspection results can be managed for each production cycle.

Product jig

The product jig is used to accurately position the component in the marking area. Depending on the engine shape and the required marking position, the jig can be designed with suitable support points, locating pins, and product holding mechanisms.

The jig keeps the product stable while the marking head is operating, minimizing vibration or movement that could affect the quality and position of the marked content.

When multiple positions need to be marked on the same product, the jig can be designed to support multiple positioning points or combined with the machine's motion mechanism.

Camera inspection assembly

The camera inspection assembly is used to check the marking results after the marking process. The camera captures images of the marked area and works with image processing software to inspect the predefined criteria.

Depending on the requirements, the camera system can inspect the marking position, character content, symbol shape, or presence of the required information on the product. If the inspection result does not meet the specified requirements, the system can generate an alert for the operator to check and handle the product.

Key features of the engine number marking machine

In a production environment, effective product information management and data accuracy require reliable monitoring of the relevant database. The engine number marking machine is designed to support this process by improving the consistency and transparency of product identification for both businesses and customers. The following are some key features of the engine number marking machine manufactured by CNC VINA:

– The processing software helps prevent duplicate marking, incorrect codes, and incorrect model selection. It also maintains a log of marked codes and records errors that occur during operation.

– The machine can be used with multiple product models and can be easily expanded to accommodate additional models.

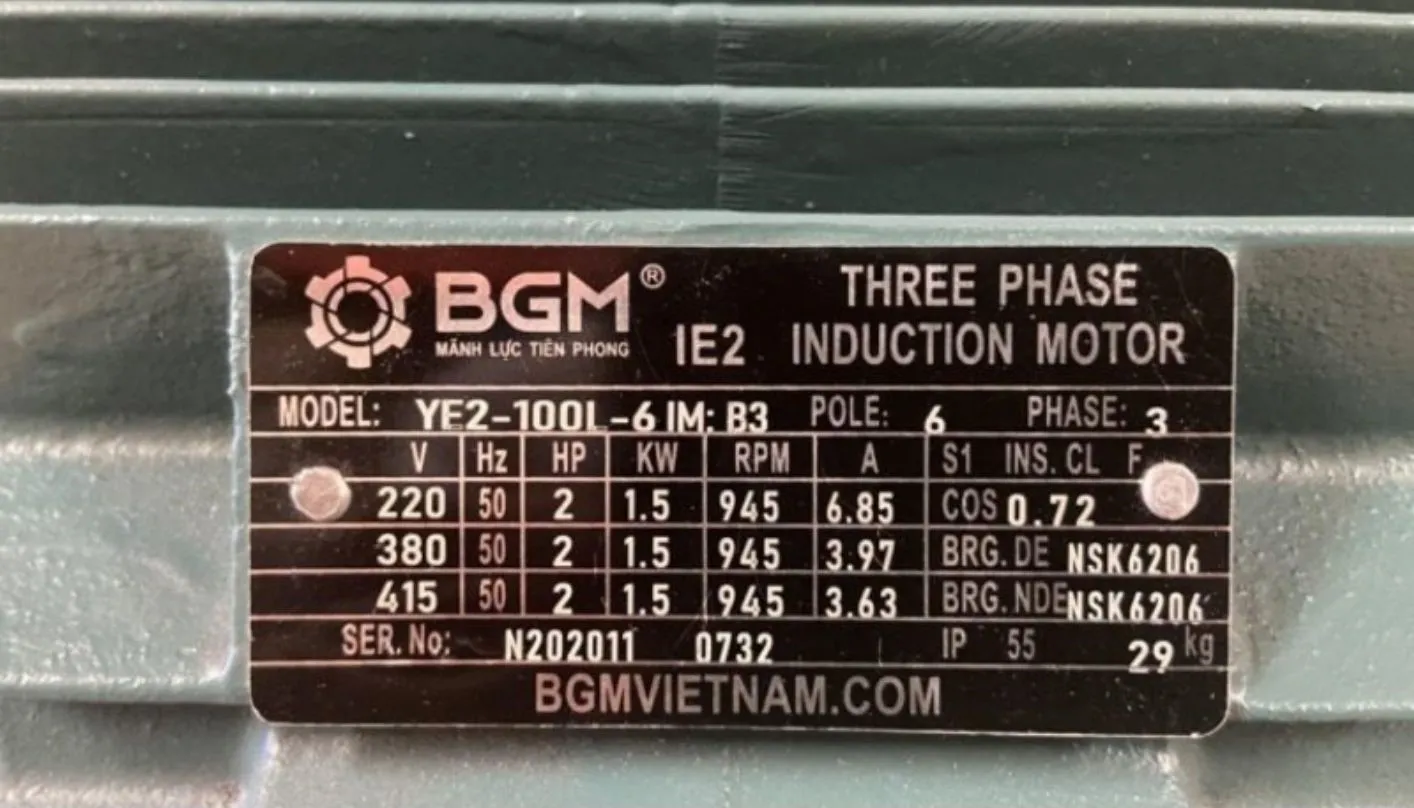

The engine number marking machine is used to mark serial numbers on engines, providing each product with a unique identification code. The marking values are retrieved from the barcode and transmitted to the marking system.

– Engine number: Entered from the information contained in the tire data.

– Production date: Entered from the information contained in the tire data.

– Production location: Entered from the information contained in the tire data.

– Code in the marking head: The value transmitted to the marking head after data processing.

– Camera inspection code: The value received after the camera captures and processes the marked information.

Operating process of the engine number marking machine

To minimize operating errors and maintain stable production output, operators need to understand the machine operating procedure. When the machine is handed over, CNC VINA provides the catalogue along with the necessary operating instructions and precautions for the engine number marking machine. The operating steps include:

• Step 1: The operator manually loads the product onto the jig and uses the barcode reader to scan the barcode on the product.
• Step 2: Press the start button to begin the number marking process.
• Step 3: After marking is completed, the robot moves the product to the camera inspection position, and the screen displays an OK/NG result.
• Step 4: The label printer prints the label based on the data obtained from the barcode reader.

Applications of the engine number marking machine in manufacturing

The engine number marking machine is widely used for product identification and traceability in manufacturing processes. It can be applied across various industries, including:

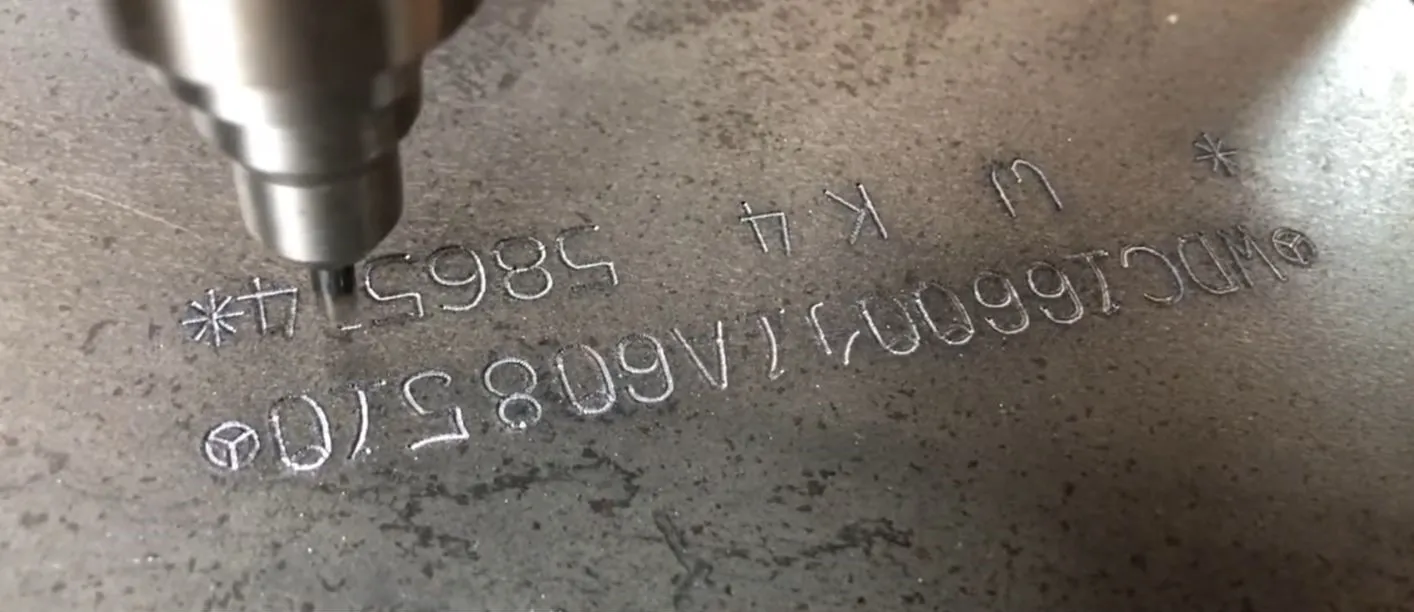

• Automotive and motorcycle industry: The machine helps identify engines and determine the origin of individual engines in the automotive and motorcycle industry. Marking identification codes on engines also makes it easier to track products and support recall processes when an NG condition is detected.
• Aerospace industry: The machine supports quality control and safety requirements for aircraft and related components. Engine and component identification information can also help aircraft manufacturers record and manage product information.
• Industrial equipment: Engine identification and marking can support equipment monitoring, maintenance planning, and inventory management.
• Medical equipment: The machine can be used to manage identification information for medical equipment and support the management of information required by applicable industry standards.

The engine number marking machine not only performs serial number or identification code marking but can also integrate functions such as barcode reading, data processing, and camera-based inspection. Automatically receiving and transmitting marking data helps reduce manual data-entry operations while supporting information verification before and after the marking process. The system can store marking history, product information, and inspection results, making it easier to manage and retrieve production data when required. Depending on production requirements, the machine can be designed for multiple engine models and expanded with additional functions suitable for the production line. When integrated with product feeding mechanisms, robots, camera inspection systems, or label printers, the machine can become part of an automated product identification and data management process. The machine configuration can also be adjusted according to product dimensions, marking positions, marking content, and the data management requirements of each business. If your business is looking for a solution for engine number marking and product data management, please contact CNC VINA for consultation on a machine configuration suitable for your products and actual production process.
