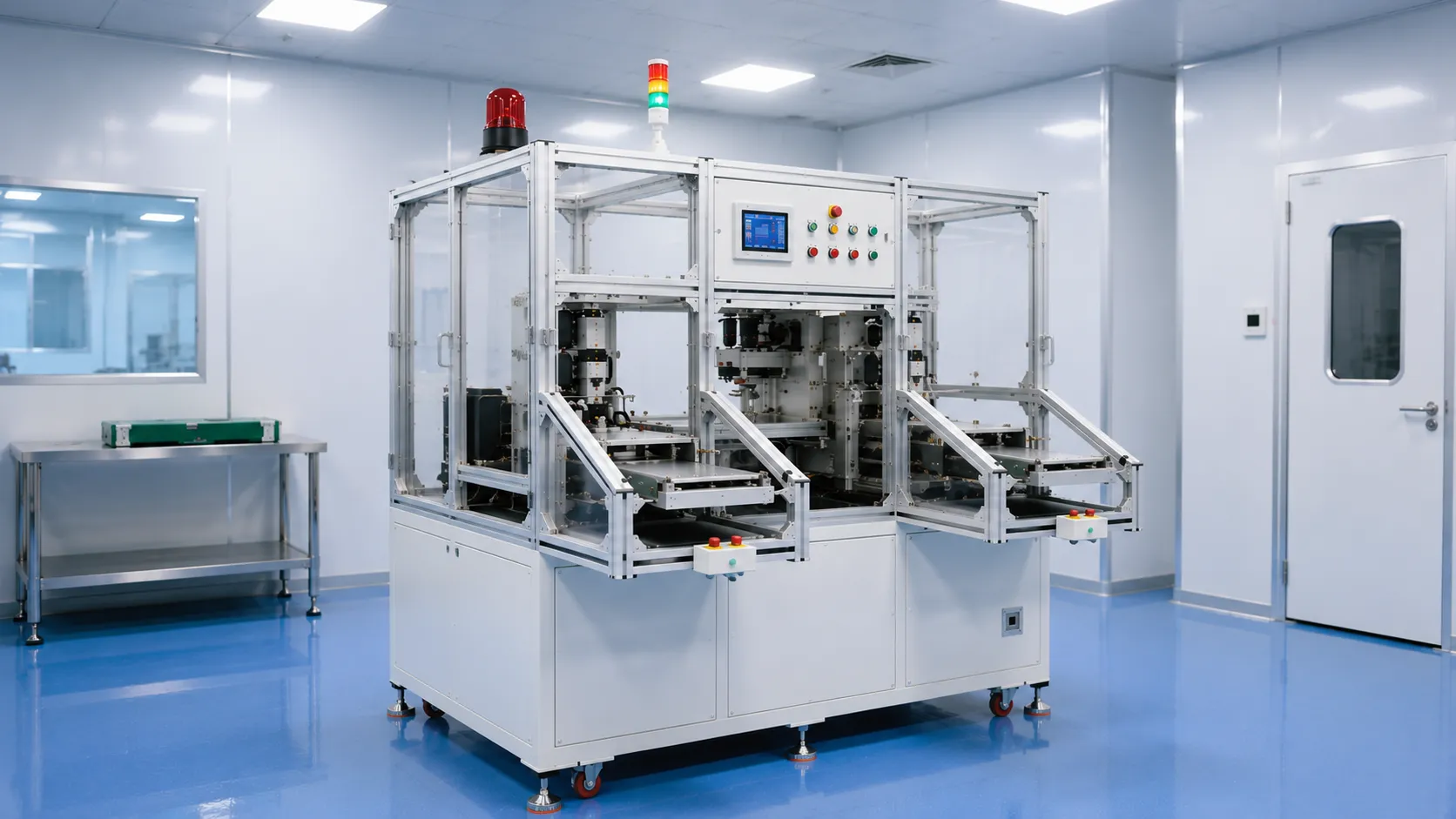

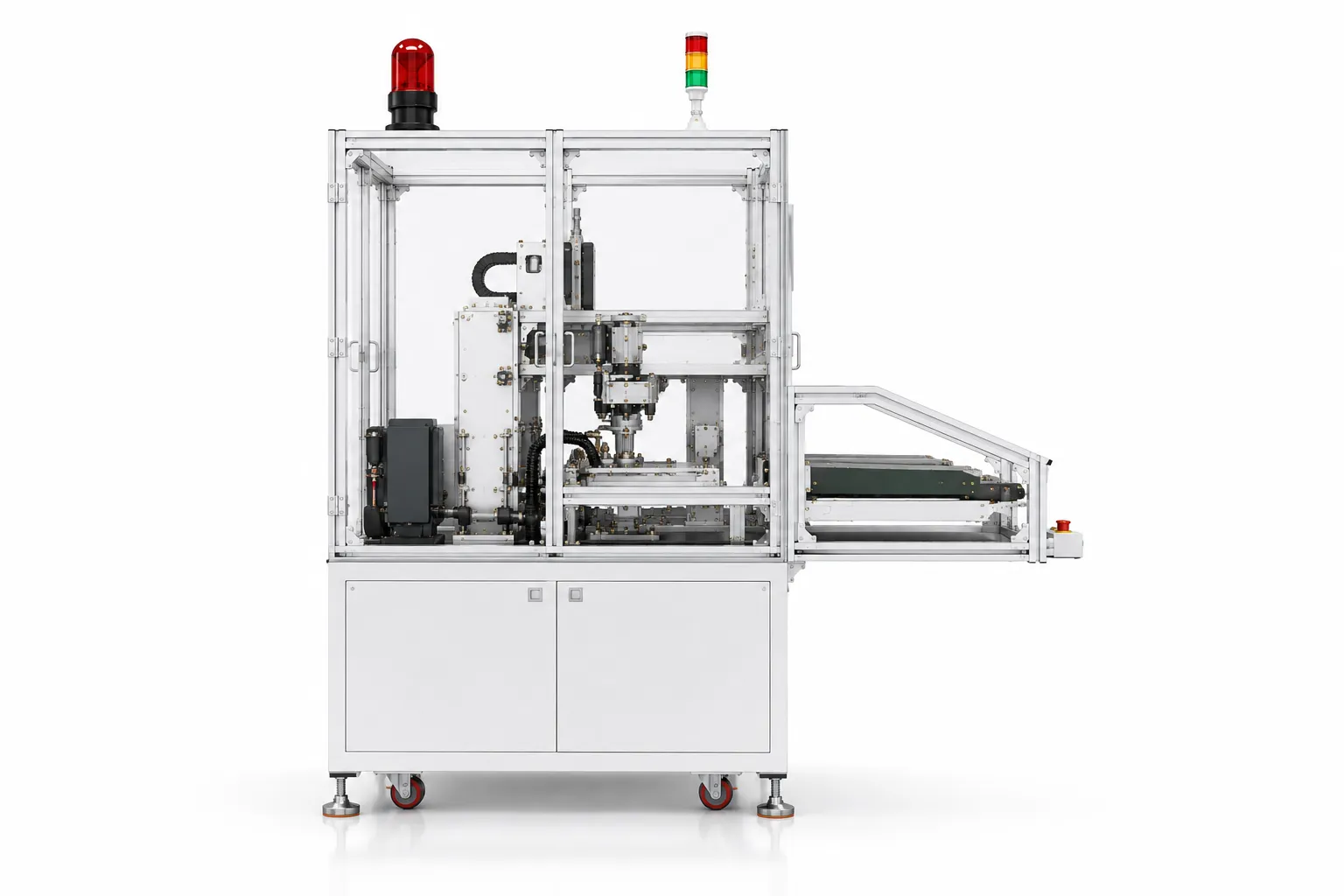

Automatic tin dipping machine

Operating Principle of an Automatic Tin Dipping Machine

The automatic tin dipping machine operates by automatically controlling the entire process of dipping products into a molten tin bath to create a stable and uniform tin coating or solder joint. The entire cycle is controlled by a PLC combined with a servo motor, ensuring that parameters such as temperature, dipping time, movement speed, and dipping depth remain accurate according to the programmed settings. The operating process begins when the product is transferred to the working position by a conveyor, robot, or manually placed onto a fixture (Jig). The positioning system secures the product to ensure that the component pins requiring tin dipping are correctly positioned. For products requiring high precision, the machine can also integrate a Vision camera or sensors to verify the product position before starting the cycle.

The tin bath is continuously heated by an electrical resistance heating system combined with a PID controller to maintain a stable temperature according to the required process parameters. Once the preset temperature is reached, the servo system moves the product into the molten tin bath at an appropriate speed. The dipping depth and dipping time are precisely controlled to ensure that the tin adheres evenly to the component pins while minimizing insufficient tin, excessive tin, or solder bridging. After the dipping process is completed, the product is lifted at the programmed speed, allowing excess tin to flow back into the bath. Depending on product requirements, the machine can integrate a vibration mechanism or nitrogen gas blowing system to reduce oxidation and improve solder surface quality. Finally, the product is transferred to the cooling process or directly to subsequent inspection and assembly stages. The entire process is performed automatically, ensuring high productivity and consistent quality in mass production.

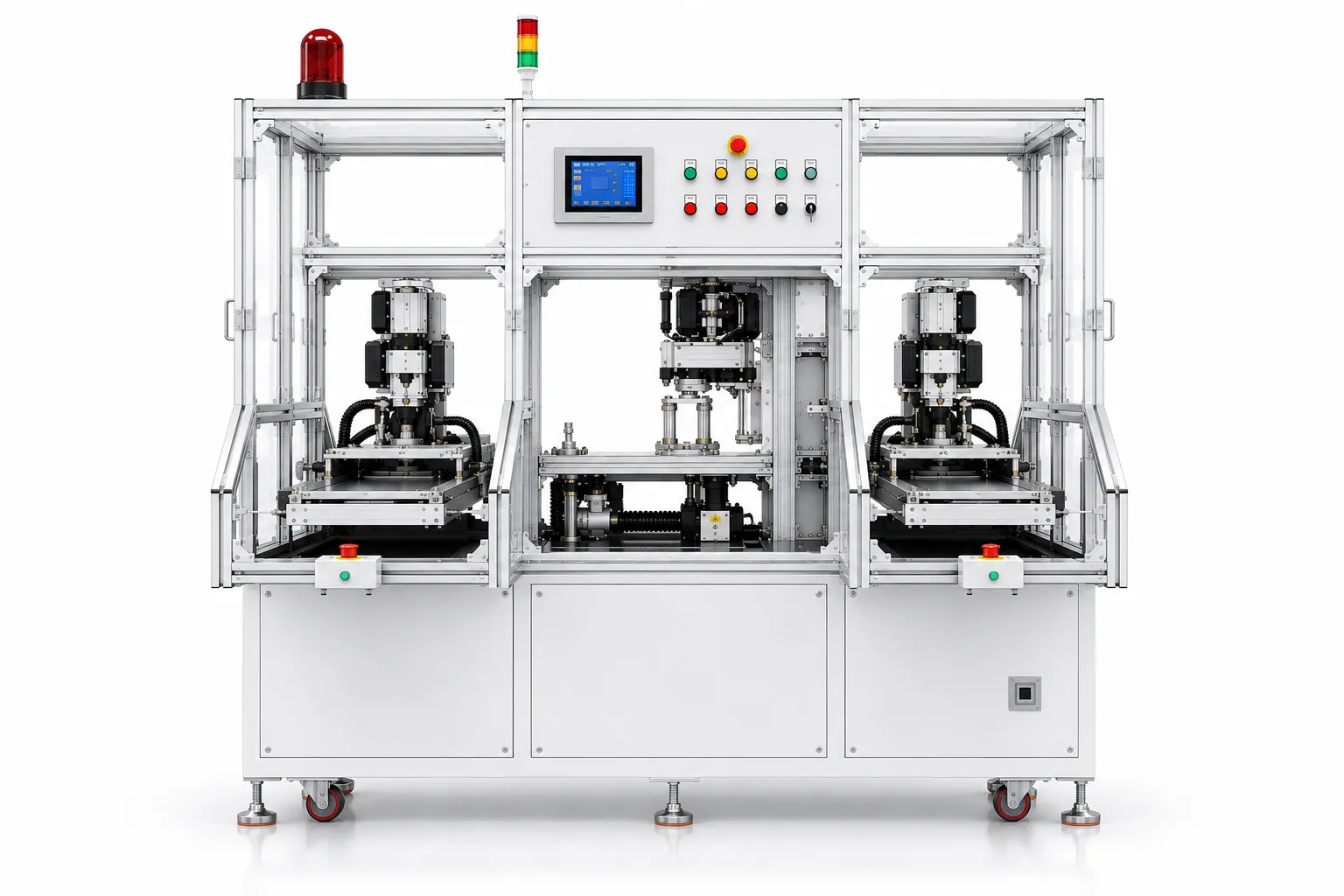

Structure of an Automatic Tin Dipping Machine

To ensure that the tin dipping process is stable, accurate, and safe, the machine is designed with multiple mechanical, electrical, and control systems operating in coordination. Depending on the product requirements and level of automation, the machine configuration may vary. However, most current models generally include the following main components.

Machine Frame and Drive Mechanism

The machine frame is the main load-bearing structure and is typically manufactured from powder-coated steel or industrial aluminum profiles to ensure rigidity and minimize vibration during operation. The drive system uses a servo motor combined with a ball screw or precision linear guide rails, enabling stable and accurate control of the product's vertical movement. For systems requiring high productivity, the machine can also integrate robots or automatic conveyors for product loading and unloading.

Tin Bath and Heating System

The tin bath is one of the most important components of the machine. It is responsible for melting the tin alloy and maintaining a stable temperature throughout the production process. The bath is typically manufactured from heat-resistant and corrosion-resistant materials to ensure long service life when operating at high temperatures. The heating system uses high-power heating elements combined with a PID controller and temperature sensors to maintain accurate temperature control, reduce tin oxidation, and ensure consistent soldering quality.

Control System

The machine uses a PLC combined with an HMI touchscreen to set the temperature, dipping time, movement speed, and store production programs. The intuitive interface allows operators to configure parameters quickly and easily switch between different product types.

Jig and Positioning System

The Jig is responsible for securing the product throughout the tin dipping process, ensuring that the component pins remain accurately positioned relative to the tin bath. Depending on the product's shape and dimensions, the Jig can be custom-designed to allow quick changeover, easy installation, and convenient maintenance. For products requiring high positioning accuracy, the machine can additionally integrate sensors or a Vision camera to verify the product position before starting the cycle.

Safety and Fume Extraction System

Because the machine operates at high temperatures, it is equipped with various safety features such as protective doors, interlock switches, emergency stop buttons, and warning systems for temperatures exceeding permissible limits. In addition, the fume extraction system collects tin vapors and flux fumes generated during operation, helping to maintain a safer production environment and protect operators.

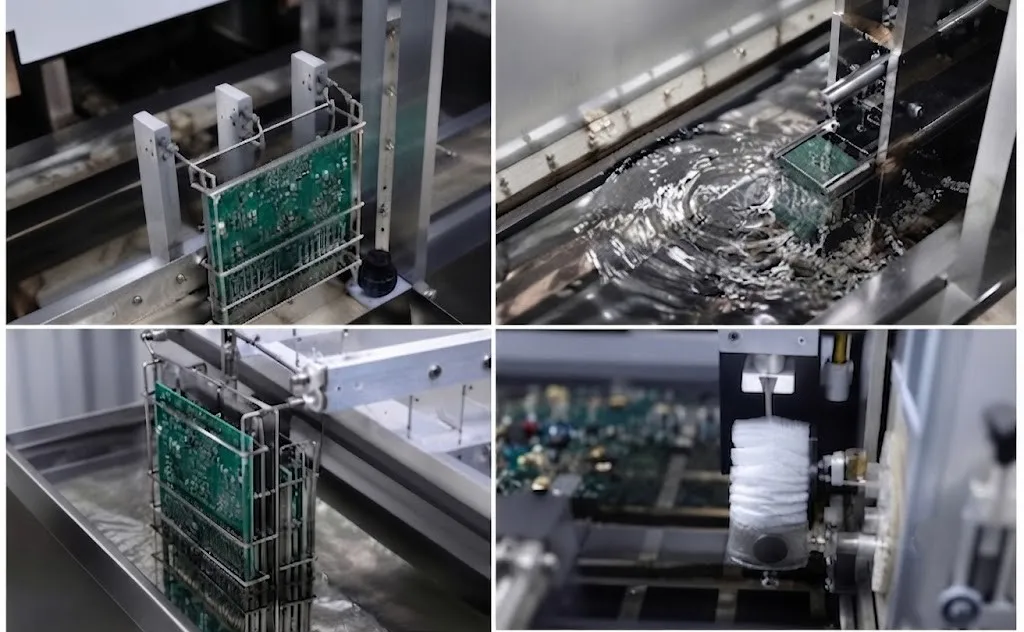

Advantages of an Automatic Tin Dipping Machine

Automatic tin dipping machines are equipped with various advanced features to precisely control the soldering process and meet the requirements of electronics manufacturing lines. Depending on the model, the equipment can also be integrated with additional automation functions and connected to other production systems.

Improved Solder Joint Quality

The entire dipping process is precisely controlled in terms of temperature, dipping time, and dipping depth, ensuring that the tin adheres evenly to all component pins. This helps minimize defects such as insufficient tin, excessive tin, solder bridging, or uneven solder surfaces, while improving the mechanical strength and electrical conductivity of the product.

Increased Production Productivity

The machine operates automatically with a stable cycle, reducing manual operation time and meeting the requirements of high-volume production. At the same time, the equipment reduces dependence on operator skill and improves overall production efficiency.

Reduced Operating Costs

Automation helps reduce direct labor requirements, minimize defective products, and optimize the amount of tin used. As a result, businesses can reduce production costs and improve their long-term return on investment.

Easy Integration into Automated Production Lines

The machine can be connected to robots, conveyors, automatic feeding systems, Vision cameras, or quality inspection equipment to create a closed-loop automated production line. This enables businesses to increase their level of automation, reduce product transfer time, and improve the efficiency of the entire production system.

Stable Operation and Easy Maintenance

Modern tin dipping machines use industrial components from reputable manufacturers, allowing the equipment to operate reliably and continuously in production environments. The modular design also makes maintenance, tin bath cleaning, and component replacement faster and easier, reducing machine downtime and improving equipment utilization.

Key Features of an Automatic Tin Dipping Machine

The machine uses a high-precision temperature control system to maintain a stable tin bath temperature. Operators can set the appropriate temperature for different solder alloys, helping minimize temperature fluctuations and ensure consistent soldering quality.

Precise Temperature Control

The machine uses a high-precision temperature controller that allows operators to set and maintain a stable tin bath temperature according to the specific solder alloy being used. Sensors continuously monitor the actual temperature to ensure consistent soldering performance.

Flexible Automation and Programming

The machine is controlled by a PLC combined with an HMI touchscreen, allowing operators to configure parameters such as dipping time, movement speed, and tin bath temperature. The system supports multiple production programs, enabling quick changeover between different PCB types.

Automatic Tin Supply System

The machine can be equipped with an automatic tin supply system to maintain a stable tin level in the solder bath. Material replenishment can be performed continuously, helping maintain soldering quality and minimizing interruptions during production.

Automatic Cleaning System

The machine can integrate an automatic cleaning system to remove solder dross and contaminants generated during operation. This helps maintain tin bath quality, reduce maintenance time, and extend equipment service life.

Safety Protection System

The machine is equipped with functions such as over-temperature alarms, overload protection, emergency stop buttons, and electrostatic discharge (ESD) protection to ensure the safety of the equipment, operators, and sensitive electronic components.

Monitoring and Error Warning System

The entire operating status of the machine is displayed on the control screen in real time. Operators can monitor parameters such as tin bath temperature, cycle time, sensor status, and warning signals to promptly respond when abnormalities occur. Continuous monitoring helps reduce machine downtime, improve production stability, and support more effective equipment maintenance.

Connectivity and Integration Capability

The tin dipping machine can be designed to connect with other equipment in the production line, such as conveyors, PCB feeding machines, pick-and-place robots, AOI systems, or functional testing machines. Synchronizing these systems helps create an automated production line and reduces intermediate handling operations.

In addition, depending on the customer's requirements, the control system can integrate production data storage, software connectivity, or MES systems to support production monitoring and data traceability.

Applications of solder dipping machines

In the manufacturing industry

Electronics manufacturing:

Printed circuit board (PCB) assembly: Solder dipping machines are used to solder electronic components onto PCBs, ensuring both electrical and mechanical connections between components and circuits.

Consumer electronics production: Products such as mobile phones, tablets, and other electronic devices use solder dipping technology in their manufacturing process.

Industrial equipment manufacturing

Automation equipment: Automated control systems and industrial robots commonly utilize printed circuit boards (PCBs) and components soldered using tin dipping machines.​

Telecommunication devices: Tin dipping machines assist in soldering critical components in telecommunication devices, ensuring system performance and reliability.

Consumer goods manufacturing

Smart home appliances: Devices like smart washing machines and refrigerators use PCBs and electronic components soldered with tin dipping technology.​

In medicine and biology

Medical equipment

Heart rate monitors, hearing aids: These medical devices require high-quality solder joints to ensure accuracy and reliability.​

Biosensors: Tin dipping machines are used to solder biosensors onto PCBs, facilitating the measurement of biological parameters such as glucose, heart rate, and chemical substances in the body.​

Biotechnology

DNA and RNA analysis devices: These devices often require electronic components soldered by tin dipping machines to operate accurately and efficiently.​

In vitro diagnostic (IVD) equipment: Tin dipping machines help create complex electronic circuits necessary for IVD devices used in disease diagnostics.​

Applications in biological research

Development of research equipment: Advanced biological research devices, such as PCR (Polymerase Chain Reaction) machines and centrifuges, utilize PCBs and components soldered by tin dipping machines.​

In research and development

Development of new electronic products

Prototyping: Researchers and engineers use tin dipping machines to quickly prototype new circuit designs.​

Testing and adjustment: Tin dipping technology allows for necessary testing and adjustments during the development of electronic products.​

Materials technology research

Research into tin-based alloys plays an important role in improving soldering performance and meeting the increasingly demanding requirements of modern electronics manufacturing. Although tin is the primary material used in many soldering applications, its properties can be modified by combining it with other metals such as silver, copper, bismuth, antimony, or nickel. The composition of the alloy directly affects important characteristics such as melting temperature, wettability, mechanical strength, oxidation behavior, corrosion resistance, and the reliability of the resulting solder joint.

One major research direction is the development of lead-free tin alloys to replace traditional lead-containing solder materials. Lead-free alloys such as Sn-Cu, Sn-Ag-Cu (SAC), and other modified tin-based compositions are widely studied because they can meet environmental and regulatory requirements while maintaining suitable soldering performance. Researchers continue to optimize alloy composition to reduce defects such as excessive oxidation, brittle solder joints, poor wettability, and insufficient adhesion during the soldering process. Another important area is improving the thermal and mechanical stability of solder joints. Electronic products are often exposed to temperature changes, vibration, mechanical stress, and long operating periods. Therefore, the solder alloy must maintain its mechanical integrity and electrical conductivity throughout the product's service life. Research into alloy composition helps improve resistance to thermal cycling, cracking, corrosion, and other forms of degradation.

For automatic tin dipping machines, the selection of the appropriate tin alloy is closely related to machine parameters such as bath temperature, dipping time, dipping depth, and heating capacity. Different alloys have different melting and operating temperature ranges, meaning that the heating and temperature control system must be configured accordingly. A suitable combination of alloy composition and machine parameters helps achieve stable wetting, uniform tin coverage, and consistent solder quality.

Research in soldering technology

In addition to alloy composition, controlling oxidation during tin dipping is an important area of materials technology research. When molten tin is exposed to air at high temperatures, an oxide layer and solder dross can form on the surface of the bath. Excessive oxidation can affect tin consumption, reduce process stability, and negatively influence the quality of the coating or solder joint.

Research therefore focuses on methods for reducing oxidation and controlling dross formation. Depending on the application, manufacturers may optimize bath temperature, minimize unnecessary exposure of molten tin to air, improve bath circulation, or use suitable fluxes and protective gases. Nitrogen protection can also be considered in certain configurations to reduce oxidation and improve surface quality. These technologies are particularly important for automated production because the machine must maintain stable conditions over long operating periods. A well-controlled tin bath reduces fluctuations in soldering quality and can also reduce the frequency of cleaning and maintenance.

The automatic tin dipping machine is a vital technology in the electronics industry, offering benefits such as automation, high-quality joints, increased production efficiency, and solder savings. However, considerations such as high initial cost, complexity, and limited adjustability should be taken into account.

The integration of Artificial Intelligence (AI) and the Internet of Things (IoT) can enhance data analysis and optimize the soldering process—from predicting and preventing errors to boosting efficiency and energy savings.

The advancement of robotics and full automation can further streamline the operation of solder dip machines, from component placement to final product inspection and packaging.
Soldering technology continues to evolve toward creating stronger, more precise, and consistent joints while minimizing environmental and health impacts.
Incorporating green and sustainable technologies into solder dip machine production can help reduce waste and resource consumption, while improving the overall sustainability of the electronics industry.

CNC VINA – Customized Automatic Solder Dipping Machine Solutions

CNC VINA specializes in the design, manufacturing, and integration of industrial automation systems for the electronics manufacturing industry. The automatic solder dipping machine developed by CNC VINA is customized to meet specific production requirements and can be directly integrated into existing or new production lines. The solution helps manufacturers improve process and quality control while optimizing production efficiency and throughput.

With a team of experienced engineers, CNC VINA provides comprehensive support throughout the project, including automation consulting, application-based equipment design, manufacturing, installation, operator training, commissioning, and after-sales maintenance. Our solutions are developed to meet the diverse requirements of both domestic and international electronics manufacturers.
