3-axis PCB soldering robot

Introduction to the 3-Axis PCB Soldering Robot

The 3-axis PCB soldering robot is an automated solution developed to solder electronic components onto printed circuit boards (PCBs) with high precision, consistent solder joint quality, and reliable continuous operation in industrial production environments. The system utilizes a three-axis motion mechanism combined with an intelligent soldering head to automatically position the soldering iron at the designated location, feed solder wire at a preset rate, and produce uniform solder joints on individual component leads. Compared with manual soldering, the robot significantly reduces operator-related variations while improving production efficiency and consistency across products.

As component density on PCBs continues to increase, component sizes become smaller, and soldering quality requirements become increasingly stringent, conventional manual soldering is often unable to meet the requirements for precision, production speed, and quality control in mass production. The 3-axis PCB soldering robot provides an effective solution for manufacturers seeking to automate their production processes, reduce dependence on operator skill, and improve overall product reliability.

The equipment is widely used in the production of electronic circuit boards, telecommunications equipment, consumer electronics, automotive components, medical devices, industrial equipment, and other products requiring stable and consistent solder joints. In addition to flexible programming for different PCB types, the robot can be integrated with conveyors, Vision camera systems, AOI inspection systems, automatic feeding systems, and other equipment to create a fully automated production line. With extensive experience in industrial automation, CNC VINA provides 3-axis PCB soldering robot solutions customized to each customer's specific requirements. The equipment can be configured to accommodate different product dimensions, production processes, throughput requirements, and levels of automation. In addition to improving soldering quality, the system helps manufacturers optimize production costs, increase productivity, and strengthen their competitiveness in the electronics manufacturing industry.

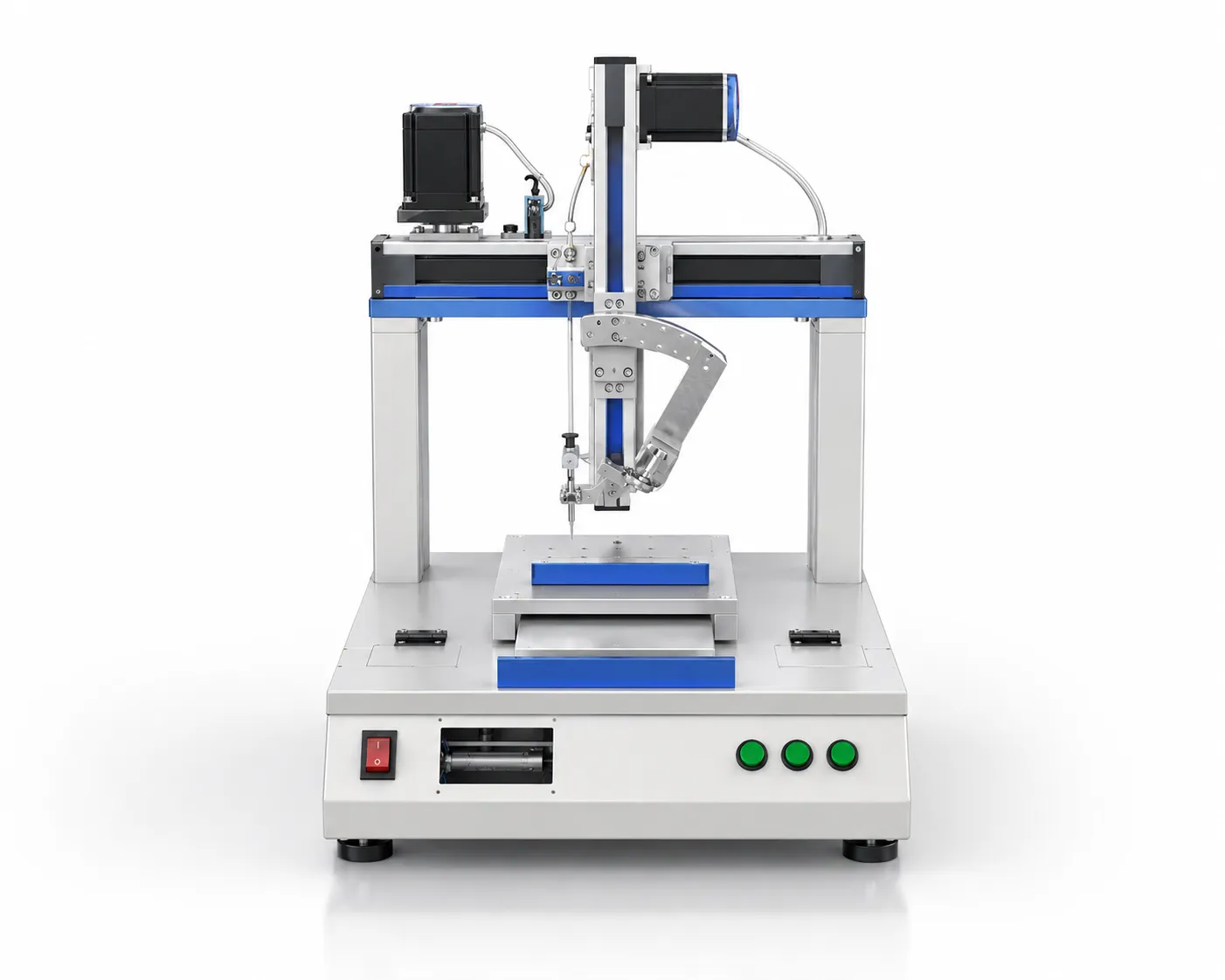

Importance of Using an Automatic PCB Soldering Machine

PCB soldering equipment plays an essential role in modern electronic manufacturing. The ability to solder components onto PCBs accurately, efficiently, and consistently is critical to ensuring the quality and reliability of finished electronic products. By automating the soldering process, these machines significantly improve production efficiency, reduce labor costs, and enhance the overall quality and consistency of electronic assemblies, making them an essential solution for modern electronics manufacturing.

Operating Principle of the 3-Axis PCB Soldering Robot

The 3-axis PCB soldering robot operates based on a fully automated process controlled by pre-programmed instructions. From product positioning and soldering head movement to solder wire feeding and solder joint formation, every stage is precisely controlled by the system to ensure consistent soldering quality and minimize production errors.

First, the PCB is placed on a dedicated fixture or conveyor and securely positioned at the working station. In an automated production line, the PCB can be transferred into the machine via a conveyor system or loading robot, reducing manual handling time and ensuring synchronization with upstream and downstream processes.

Once the PCB has been positioned, an integrated Vision camera system, if equipped, identifies reference points on the board and compensates for positional deviations. This alignment process enables the robot to accurately determine the coordinates of each soldering point, particularly for small PCBs or applications requiring high positioning accuracy.

The robot then drives the 3-axis X-Y-Z motion system to move the soldering head to each programmed soldering position. At the same time, the soldering tip is heated to the appropriate temperature according to the solder wire and components being used. The automatic solder wire feeding system supplies a precisely controlled amount of solder to the soldering tip at the preset speed and feed rate, ensuring that the solder melts at the appropriate time and forms a properly controlled solder joint.

Throughout the operation, the control system continuously monitors key parameters such as soldering tip temperature, travel speed, contact time, and solder wire feeding status. If an abnormal condition is detected, such as excessive temperature, insufficient solder wire, or a motion error, the system automatically generates an alarm, allowing the operator to take corrective action promptly and minimizing the impact on product quality.

Once all programmed soldering points have been completed, the PCB is transferred to the next process, such as AOI inspection, functional testing (FCT), or final assembly. With high repeatability and precise motion control, the 3-axis soldering robot maintains consistent soldering quality across production batches and is well suited for high-volume, high-intensity electronics manufacturing environments.

Structure of the 3-Axis PCB Soldering Robot

The 3-axis PCB soldering robot consists of multiple mechanical, electrical, and control components that operate in synchronization to ensure accurate, stable, and highly repeatable soldering performance. Depending on the customer's production requirements, the equipment can also be integrated with Vision inspection systems, automatic material handling systems, and post-soldering quality inspection solutions.

3-Axis Motion System (X-Y-Z)

The 3-axis motion system is one of the most critical components of the soldering robot. It controls the movement of the soldering head to the designated positions on the PCB according to the programmed coordinates.

The system can utilize precision transmission mechanisms such as ball screws and linear guideways combined with servo motors or stepper motors, enabling stable movement along the X, Y, and Z axes. The robot can achieve a positioning repeatability of up to ±0.02 mm, making it suitable for soldering small electronic components with high placement density.

Stable and precise motion also helps minimize vibration during the soldering process, thereby improving solder joint quality and extending the service life of the soldering tip.

Soldering Head

The soldering head is the component that directly forms the solder joint between the component lead and the PCB. Its internal heating element maintains a stable operating temperature throughout the soldering process, ensuring that the solder melts at the correct time and flows evenly onto the designated soldering area.

Depending on the product and application, different soldering tip shapes and sizes can be selected to accommodate specific component leads and working spaces. Certain configurations can also support quick soldering tip replacement, allowing manufacturers to switch between different products with minimal setup time.

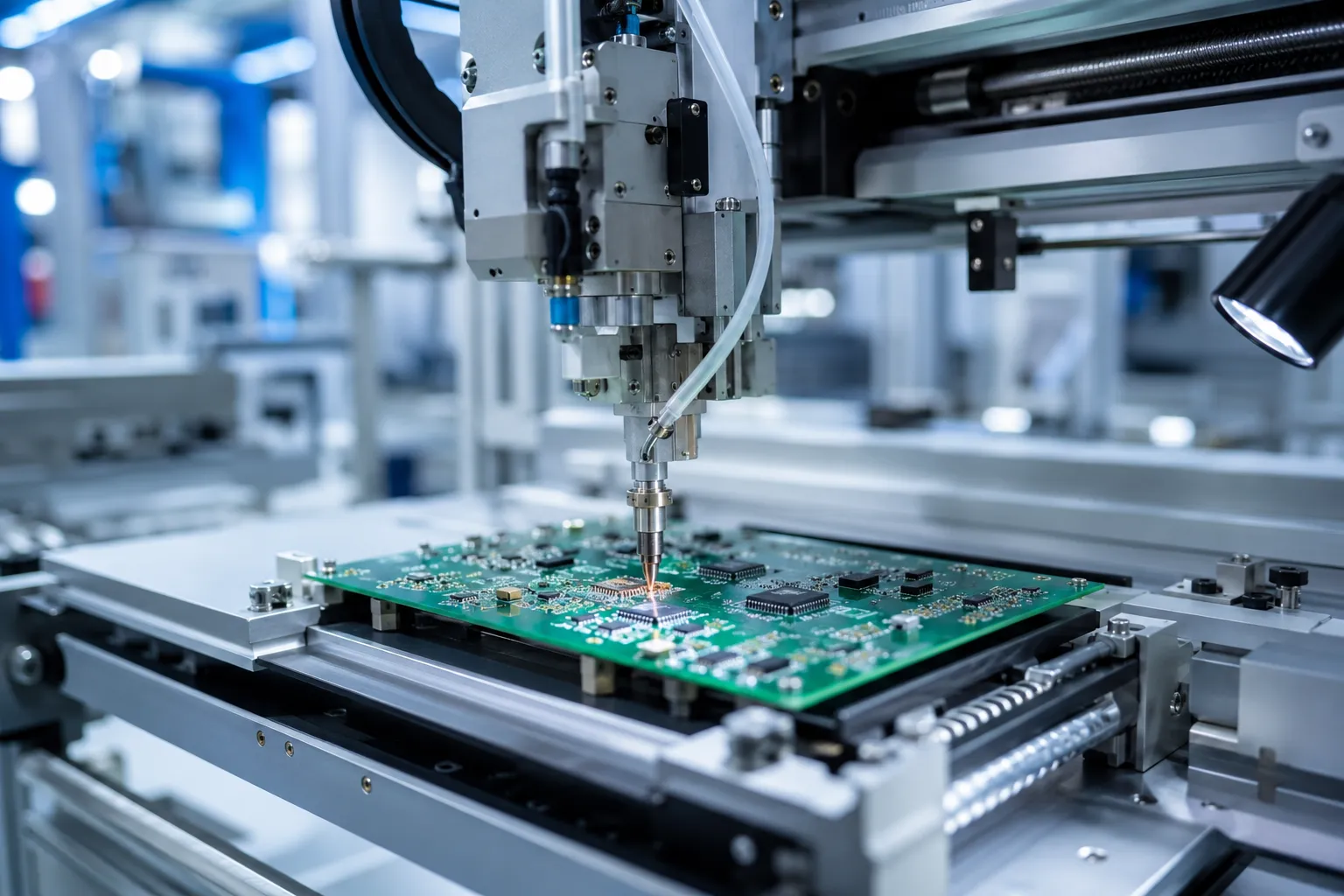

Automatic Solder Wire Feeding System

The solder wire feeding system delivers solder wire to the soldering head at a precisely controlled speed and feed rate according to the programmed parameters. Automatic solder feeding ensures a consistent amount of solder is supplied to each soldering point, reducing insufficient or excessive solder commonly associated with manual soldering.

In addition to improving solder joint quality, precise solder wire control helps optimize material consumption, reduce solder wire waste, and lower long-term production costs.

Vision Camera System

For applications requiring high positioning accuracy, the robot can be equipped with a Vision camera system to identify the PCB position and reference points on the board. The camera sends positioning data to the control system, which compensates for any positional deviation before the soldering head begins operation.

Automatic alignment minimizes the effects of fixture and loading tolerances while improving soldering accuracy for small PCBs and boards with densely arranged components.

PCB Fixture (Jig)

The PCB fixture securely holds the board in position throughout the soldering process, preventing vibration or movement that could negatively affect solder joint quality. Depending on the product dimensions and geometry, the fixture can be custom-designed to ensure accurate and repeatable PCB positioning.

A properly designed fixture not only improves process stability but also reduces loading time and facilitates quick product changeover when manufacturing multiple PCB models.

PLC Control System and HMI

The robot is controlled by a PLC combined with a touchscreen HMI, allowing operators to easily configure parameters such as soldering tip temperature, travel speed, contact time, solder wire feed rate, and soldering sequence.

The control system can store multiple soldering programs and monitor the equipment status in real time, simplifying operation and minimizing errors during product changeover.

Solder Fume Extraction System

During soldering, flux and molten solder may generate fumes and chemical vapors that can affect the working environment. The 3-axis soldering robot can be equipped with a localized solder fume extraction system positioned near the soldering head to capture fumes at the source before they disperse into the surrounding area.

This solution helps improve the working environment, reduce contamination on PCBs, and support occupational safety requirements in electronics manufacturing facilities.

Technical Specifications of the 3-Axis PCB Soldering Robot

Key Features of the 3-Axis PCB Soldering Robot

The 3-axis PCB soldering robot incorporates a range of advanced functions designed to meet industrial requirements for solder joint quality, production efficiency, and continuous operation. By automating the soldering process, the system not only improves positioning and process accuracy but also reduces dependence on operator skill and ensures consistent product quality across production batches.

Precise Temperature Control

The robot utilizes a high-precision temperature control system to maintain a stable soldering tip temperature throughout the operation. Operators can set the appropriate temperature according to the solder wire, electronic components, and PCB materials being used, ensuring that the solder melts under the required process conditions.

Accurate temperature control helps minimize defects such as cold solder joints, overheating, and PCB pad damage while improving the mechanical strength and electrical conductivity of the solder joints.

Flexible Programming

The PLC and HMI control system enables multiple soldering programs to be configured and stored. Parameters such as soldering coordinates, travel speed, contact time, solder wire feed rate, and temperature can be flexibly adjusted according to each product specification.

With program storage capabilities, manufacturers can quickly switch between different PCB models without having to reconfigure the entire process, helping reduce setup time and improve production efficiency.

Automatic Solder Wire Feeding System

The robot automatically feeds solder wire according to the programmed feed rate, ensuring that each soldering point receives the appropriate amount of solder. The solder feeding process is synchronized with the movement of the soldering head, producing uniform solder joints while minimizing material waste.

Precise solder wire control also helps reduce defects such as excessive solder, insufficient solder, and solder bridging, particularly when working with high-density PCBs.

Intelligent Vision Camera System

For high-precision applications, the 3-axis soldering robot can be integrated with a Vision camera system to identify the PCB position and Fiducial Marks before soldering begins. The system automatically compensates for deviations between the actual PCB position and the programmed coordinates, ensuring that the soldering head moves accurately to each designated point.

Automatic alignment reduces positioning errors caused by fixture tolerances and improves soldering accuracy for small components and high-density PCB layouts. It also helps reduce defect rates during production.

Automatic Soldering Tip Cleaning System

During continuous soldering operations, flux residue and solder oxides may accumulate on the soldering tip, affecting heat transfer and soldering quality. To maintain stable performance, the robot can be equipped with an automatic soldering tip cleaning system that operates according to a preset cycle or program.

Regular cleaning keeps the soldering tip in optimal condition, maintains stable heat transfer, extends tip service life, and reduces equipment maintenance requirements.

Monitoring and Fault Alarm System

Throughout operation, the control system continuously monitors parameters such as soldering tip temperature, solder wire feeding status, axis position, and sensor signals. If any parameter exceeds the permitted range or an abnormal condition occurs, the system displays an alarm to allow the operator to take timely corrective action.

Continuous monitoring helps minimize machine downtime, prevent defective products from progressing through the production process, and improve overall production quality control.

Production Line Integration and Connectivity

The 3-axis PCB soldering robot can be integrated with conveyors, automatic loading robots, AOI inspection systems, FCT equipment, and other automated production equipment to create a fully integrated production line.

Synchronization between equipment reduces intermediate handling operations, improves production efficiency, and optimizes overall line throughput. Depending on the customer's requirements, the system can also incorporate production data logging and connectivity with manufacturing management software to support production monitoring, statistical analysis, and traceability.

Applications of Automatic PCB Soldering Machines

Automatic PCB soldering machines are widely used across a variety of industrial applications. Their ability to perform precise, consistent, and high-quality soldering makes them an essential solution for modern electronic manufacturing.

Consumer Electronics

Smart electronic devices: Automatic PCB soldering machines are used to solder small, densely packed components on high-density interconnect (HDI) PCBs used in smartphones, tablets, and other compact electronic devices.

Home appliances: Automated soldering ensures reliable solder joints in products such as televisions, refrigerators, washing machines, and other smart home appliances incorporating complex PCB assemblies.

Industrial Equipment and Automation

Control systems: PCBs used in industrial controllers and programmable logic controllers (PLCs) require reliable solder joints to ensure stable and consistent operation.

Robotics: High-precision soldering is essential for PCBs installed in robotic arms and automated systems used in manufacturing and assembly lines.

Sensors and actuators: Automatic soldering machines are used to assemble PCBs for various sensors and actuators deployed in industrial automation applications.

Telecommunications

Mobile network infrastructure: Automatic soldering systems are used to assemble PCBs for base stations, repeaters, and other critical telecommunications infrastructure equipment.

Satellite communications: The equipment ensures reliable soldering of electronic components used in satellite communication equipment and ground stations.

Aerospace and Defense

Avionics systems: Highly reliable solder joints are critical to the performance and safety of avionics systems used in aircraft.

Defense equipment: Automatic soldering systems help ensure the reliability of PCBs used in military communication systems, radar systems, and other defense electronics.

CNC VINA – Custom 3-Axis PCB Soldering Robot Design and Manufacturing

CNC VINA specializes in the design and manufacture of automation equipment for the electronics manufacturing industry, including 3-axis PCB soldering robots. With extensive experience in implementing automation projects for domestic and international manufacturers, CNC VINA provides customized solutions based on each customer's actual production requirements, including PCB dimensions, production capacity, process specifications, and desired level of automation.

In addition to equipment design and manufacturing, CNC VINA provides comprehensive support including solution consulting, programming, installation, commissioning, technology transfer, and after-sales maintenance. This enables manufacturers to quickly deploy the equipment, achieve stable operation, and maximize its long-term production value.

Automatic PCB soldering machines are an essential part of modern electronics manufacturing. They play a critical role in achieving accurate, consistent, and high-quality solder joints, thereby improving the performance, reliability, and overall quality of electronic products. By reducing manual operations and human-related errors, these systems help manufacturers meet the growing demands for productivity, process stability, and quality in the electronics manufacturing industry.

Advancements in automated PCB soldering technology are not only improving production efficiency and soldering quality but also helping manufacturers reduce operating costs and enhance workplace safety. The integration of AI, IoT, advanced motion control, Vision technology, and intelligent soldering technologies is expected to further shape the future of electronics manufacturing, providing more efficient, flexible, and reliable automation solutions.
