Introduction to Semi-Automatic Dispensing and Glue Application Machines

Semi-automatic dispensing and glue application machines are automation systems designed to dispense and apply adhesive onto product surfaces according to predefined positions, paths, and dispensing volumes. Instead of requiring operators to manually apply adhesive using conventional tools, the system controls the dispensing process through pumps, valves, dispensing nozzles, and motion mechanisms, ensuring consistent adhesive application and reducing dependence on operator skill.

Unlike fully automatic dispensing systems that are directly integrated into production lines, semi-automatic dispensing and glue application machines typically require operators to perform certain tasks, such as loading the workpiece onto a fixture, pressing the start button, and removing the finished product after the dispensing cycle is completed. The adhesive dispensing process itself is carried out automatically according to the programmed parameters. This solution is well suited for manufacturers looking to improve the consistency and quality of their adhesive application process without the need to invest in a fully automated production line.

Depending on the type of adhesive, workpiece material, product dimensions, adhesive path geometry, and production requirements, CNC VINA can customize the machine configuration to meet specific application needs. The system can be equipped with X-Y-Z axis mechanisms, stepper motors, mini robots, industrial robots, or a combination of rotary mechanisms and jigs to achieve precise and consistent adhesive application for different product designs.

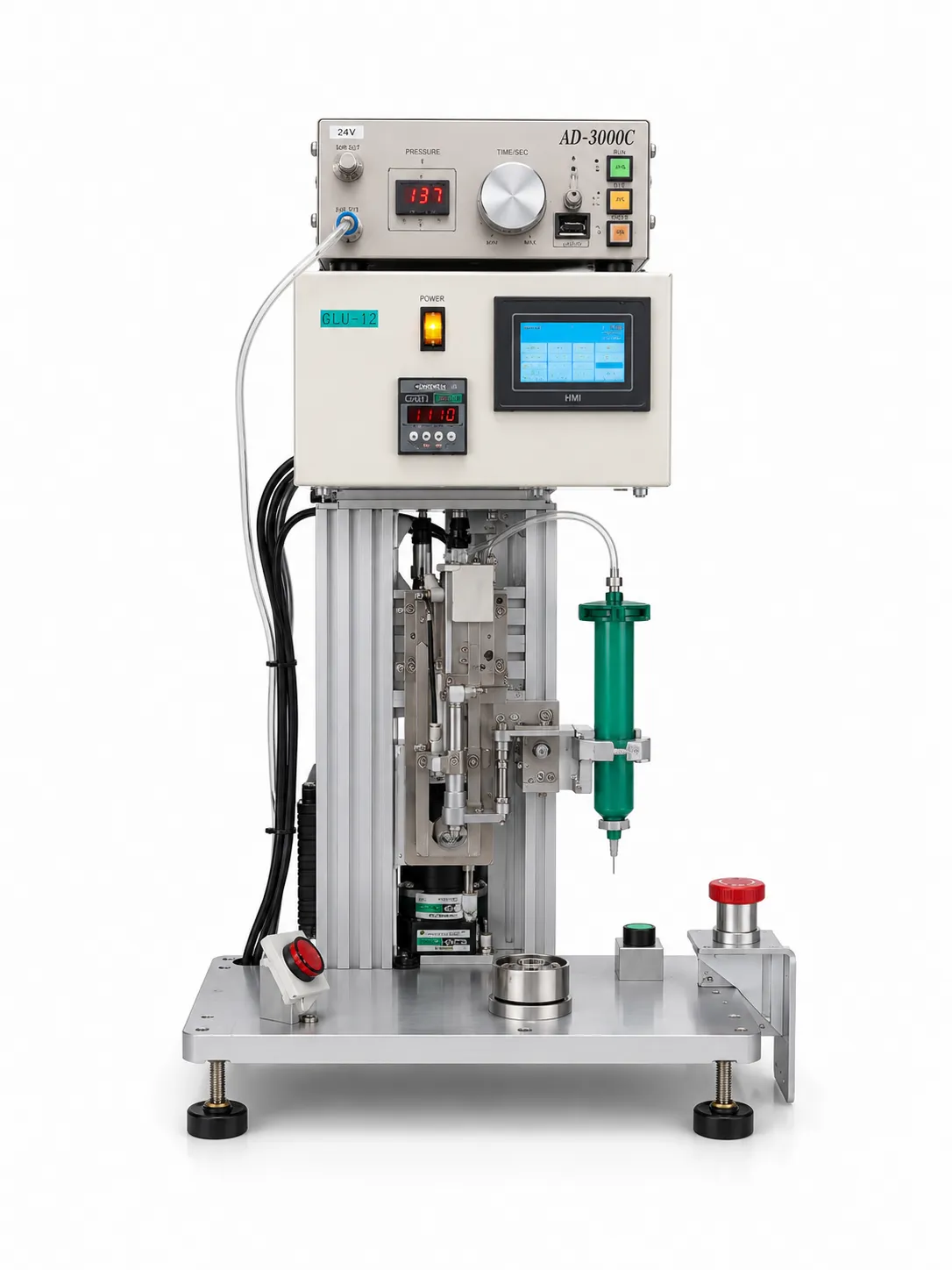

Semi-automatic dispensing and glue application machines

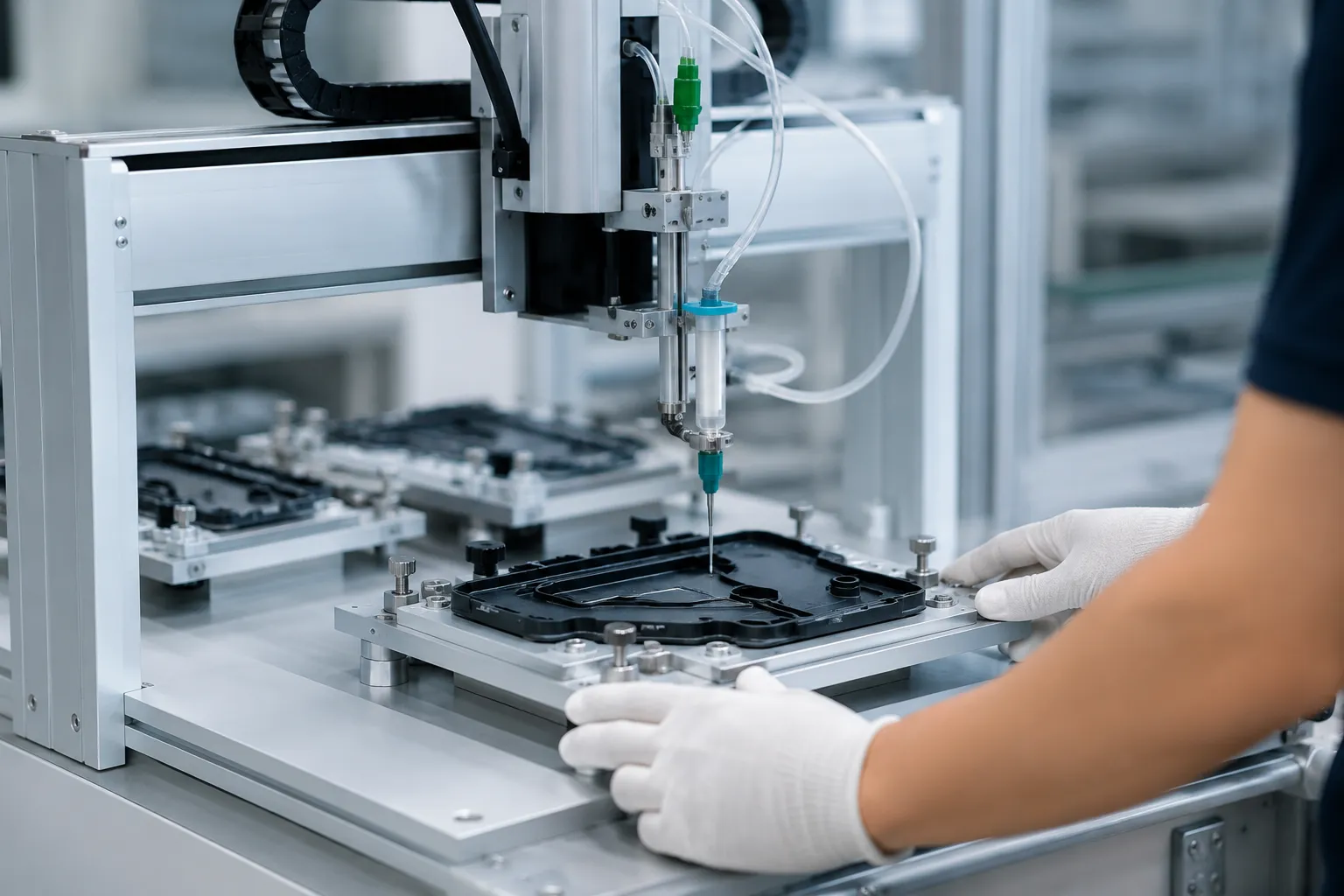

Operating principle of Semi-Automatic Dispensing and Glue Application Machines

The machine is designed to minimize manual operations while maintaining the flexibility required for operators during the production process.

First, the operator places the workpiece onto a dedicated jig and positions the jig assembly in the machine’s working area. Once the workpiece is confirmed to be correctly positioned, the operator starts the dispensing cycle. The control system then activates the adhesive dispensing mechanism. The pump delivers adhesive from the storage tank through the piping system to the dispensing nozzle. At the same time, the motion mechanism moves the dispensing nozzle or the workpiece along the programmed trajectory.

Throughout the dispensing process, parameters such as dispensing time, pressure, movement speed, and dispensing position are controlled according to the preset program. Once the adhesive path is completed, the system stops dispensing and returns the mechanism to its initial position. The operator then removes the finished workpiece from the jig and transfers it to the next process, such as assembly, curing, drying, or inspection. In this way, the operator is primarily responsible for loading the workpiece, starting the machine, and unloading the finished workpiece, while the adhesive dispensing process is performed automatically according to the programmed parameters.

Main components of a Semi-Automatic Dispensing and Glue Application Machine

The configuration of semi-automatic dispensing and glue application machines designed by CNC VINA can be customized according to the workpiece and production process. However, a typical system generally consists of the following main functional assemblies:

Adhesive Storage and Dispensing System

The adhesive tank or container serves as the storage unit for the adhesive before it is delivered to the dispensing system. Depending on the type of adhesive and required production volume, the system can use dedicated reservoirs, adhesive containers, or other suitable storage solutions. For certain adhesives that require specific storage conditions, the storage system can be equipped with additional functions such as agitation, heating, pressure control, or adhesive level sensors.

Adhesive Pump and Delivery System

The pump delivers adhesive from the storage system to the dispensing nozzle. The pump type is selected based on the adhesive viscosity, physical properties, and required dispensing flow rate. The adhesive delivery lines must also be properly selected to minimize leakage, clogging, and fluctuations that could affect dispensing stability.

Adhesive Dispensing Nozzle

The dispensing nozzle is the component that directly applies adhesive onto the product surface. Depending on the application, the machine can be equipped with dispensing nozzles and adhesive valves suitable for the specific material and dispensing requirements. Standard dispensing components can be sourced from specialized manufacturers. By combining the dispensing nozzle with a pressure regulator, timer, control valve, or pumping system, the adhesive volume can be controlled according to the required parameters. For applications requiring adhesive temperature control, the machine can also be equipped with heating functions and over-temperature alarms.

Motion Mechanism

The motion mechanism determines the movement path of the dispensing nozzle or workpiece during the adhesive application process, directly affecting the accuracy and geometry of the adhesive bead. Depending on the required dispensing pattern, workpiece dimensions, and accuracy requirements, the machine can employ various motion configurations, including X-Y-Z axis mechanisms, stepper motors, mini robots, industrial robots, rotary jigs, or dedicated motion mechanisms designed specifically for individual products.

For products requiring circular or ring-shaped adhesive paths, such as speaker diaphragms, speakers, and other symmetrical components, CNC VINA can utilize a rotary jig mechanism to create relative movement between the workpiece and dispensing nozzle. This approach helps simplify the machine structure while producing a continuous and stable adhesive bead that follows the required profile.

For products with complex adhesive paths, multiple dispensing points, or applications requiring multi-directional nozzle movement, the system can utilize a multi-axis motion mechanism. The dispensing nozzle follows a pre-programmed trajectory while its height and movement speed are precisely controlled to ensure accurate and consistent adhesive application along the entire dispensing path.

Jig and Workholding Fixture

The jig is one of the key components of a semi-automatic dispensing machine. It positions and securely holds the workpiece throughout the adhesive dispensing process. CNC VINA can design customized jigs according to the specific shape and dimensions of each product, ensuring accurate positioning and minimizing deviations during operation.

For products that need to rotate during adhesive dispensing, the jig can be integrated with a rotary mechanism to generate the required adhesive path profile.

Control System

The control system manages the machine's operating sequence, motion, dispensing time, movement speed, sensor signals, and safety conditions. Depending on project requirements, the system can utilize a PLC, microcontroller, or dedicated control board. For machines that need to handle multiple production programs, the control system can be configured to allow operators to easily select or adjust parameters according to each product model.

Sensors and Auxiliary Systems

In addition to the main assemblies, the machine can be equipped with product detection sensors, position sensors, adhesive level sensors, pressure regulators, cooling fans, lighting systems, and warning mechanisms. The selection of auxiliary components depends on the actual requirements of each production line and the characteristics of the adhesive being used.

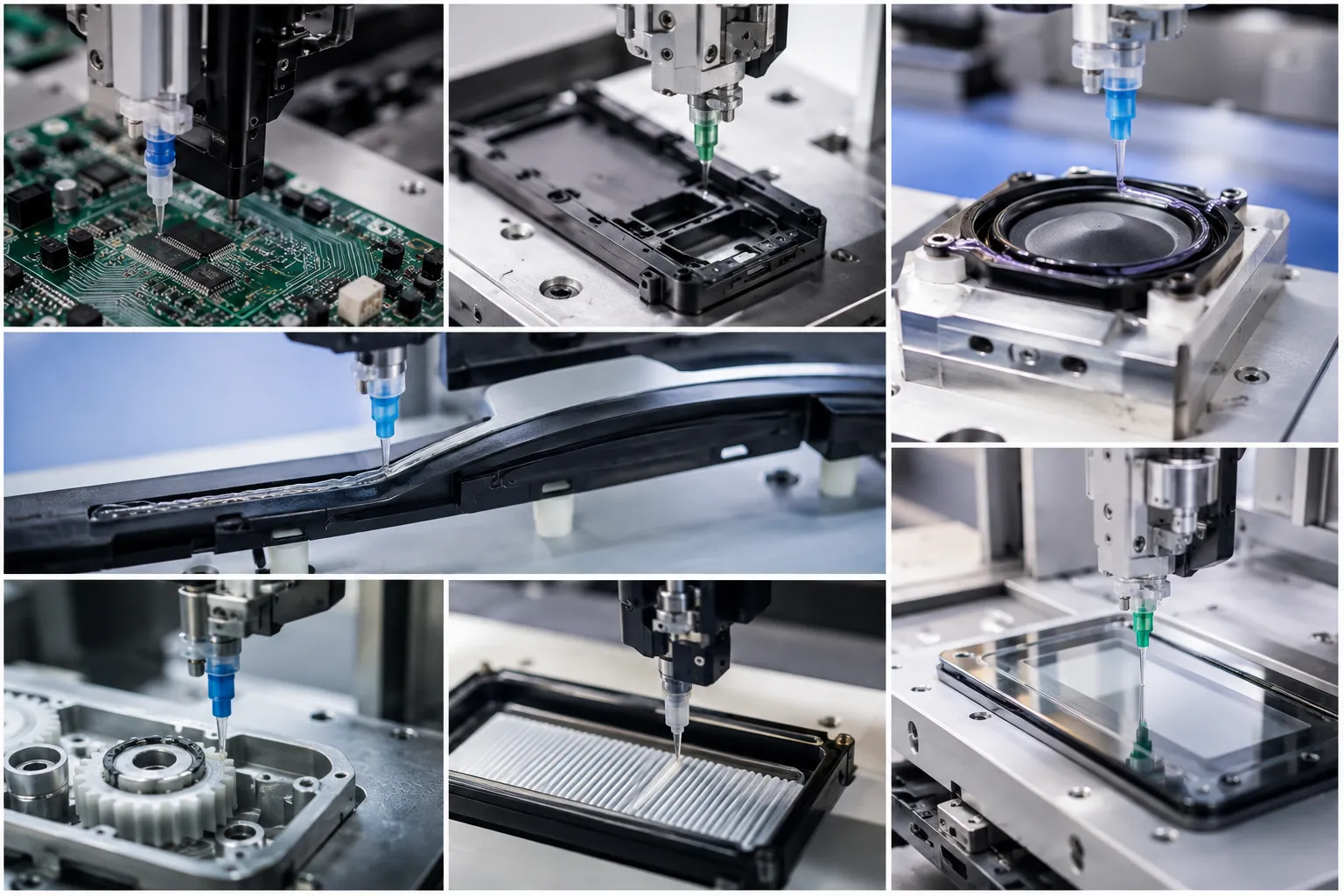

Applications of Semi-Automatic Dispensing and Glue Application Machines

Electronic component and PCB assembly

In the electronics industry, adhesives are used to secure components, wires, modules, speakers, cameras, and other small parts onto products. The machine ensures precise adhesive dispensing at the required locations, minimizing excess or insufficient adhesive that could affect the assembly process. For products requiring circular, perimeter, or complex adhesive paths, the system can be programmed to move the dispensing nozzle along a predefined trajectory or combine nozzle movement with a rotary workpiece mechanism.

Plastic product assembly

The machine is used to dispense adhesive onto bonding areas between plastic components. Depending on product requirements, the adhesive path can be configured as dots, straight lines, curves, or closed-loop profiles. Precise control of the adhesive volume helps prevent adhesive overflow beyond the bonding area while ensuring consistent application across products.

Mechanical component and industrial equipment assembly

In certain mechanical products, electrical equipment, and industrial equipment, adhesives are used to secure, seal, or bond components. Semi-automatic dispensing machines provide precise control over adhesive volume and dispensing position, making them particularly suitable for production processes that require a high level of repeatability.

Speaker and audio equipment manufacturing

Products such as speaker diaphragms, speakers, and audio modules may require adhesive to be applied along circular or perimeter paths around the component. For these applications, CNC VINA can design a rotary jig to create relative movement between the workpiece and dispensing nozzle, thereby producing a uniform adhesive bead that follows the required profile.

Products requiring bonding, fixing, or sealing

In addition to the applications above, the machine can be designed for plastic, metal, rubber, glass, and other materials where the manufacturing process requires adhesive to be dispensed at predefined locations. Actual application suitability depends on factors such as adhesive properties, workpiece material, adhesive bead dimensions, production speed, and the specific technical requirements of each project.

Common motion configurations

One of the key considerations when designing a semi-automatic dispensing and glue application machine is selecting the appropriate method for generating relative movement between the dispensing nozzle and the workpiece. The motion mechanism not only determines the machine's working range but also directly affects dispensing position accuracy, movement speed, adhesive path formation, and overall process productivity.

Depending on workpiece dimensions, adhesive path geometry, the number of dispensing locations, required accuracy, and actual production volume, CNC VINA can select X-Y-Z axis mechanisms, rotary jigs, stepper motors, mini robots, industrial robots, or a combination of multiple motion configurations within the same system.

X-Y-Z Axis Dispensing

The X-Y-Z axis mechanism is one of the most common configurations for dispensing machines that require precise control of the nozzle trajectory. The X and Y axes provide movement along the working plane, allowing the dispensing nozzle to reach different positions on the product surface, while the Z axis adjusts the distance between the nozzle and the dispensing surface.

Simultaneous control of the three axes enables the system to perform various adhesive patterns, including straight lines, curves, perimeters, zigzag patterns, and profiles programmed according to specific coordinates. This configuration is particularly suitable for products with multiple dispensing locations or non-uniform geometries. For example, a single product may require adhesive to be dispensed at multiple points, along a perimeter around a component, and then at another location. In such cases, the X-Y-Z system can be programmed to control the movement sequence and nozzle position for each stage of the dispensing process.

Depending on the required accuracy and operating speed, the X-Y-Z system can utilize stepper motors, servo motors, or suitable linear drive mechanisms. For applications requiring multiple production programs, the control system can store different dispensing trajectories, allowing operators to select the appropriate program for each product model. This configuration offers a high degree of flexibility and is suitable for a wide range of products with different geometries.

Rotary Jig Dispensing

For products with circular, ring-shaped, or rotationally symmetrical adhesive paths, a rotary jig provides a simple and effective solution. The workpiece is securely mounted on the jig and rotated around a defined axis, while the dispensing nozzle remains at the appropriate position to create a continuous adhesive bead along the product profile. When the rotational speed and adhesive dispensing rate are precisely synchronized, the resulting adhesive bead can achieve a high level of uniformity. This configuration is suitable for applications such as dispensing adhesive around speaker diaphragms, speakers, ring-shaped components, and circular parts.

Compared with multi-axis systems, a rotary jig can simplify the motion mechanism and reduce the overall investment cost. However, this configuration is most suitable for products with relatively simple geometries. For complex adhesive paths or applications involving multiple dispensing locations, it may need to be combined with an X-Y-Z axis mechanism or another motion system.

Stepper motor and linear motion dispensing

Stepper motors are commonly used to drive linear motion mechanisms in dispensing machines, particularly when the system requires precise control of position and movement speed without the complexity of a robotic configuration. The motor can be combined with lead screws, rack-and-pinion systems, belts, or other transmission mechanisms to move the dispensing nozzle or product fixture.

The main advantages of this configuration include a relatively simple structure, easy integration into dedicated machines, and programmable motion control. The movement speed of the dispensing nozzle can be adjusted according to the adhesive dispensing rate, helping prevent excessively thick adhesive beads when the nozzle moves too slowly or insufficient adhesive application when it moves too quickly.

For machines dedicated to one or a limited number of products with relatively stable production processes, a stepper motor-based motion mechanism can be a practical solution. It provides sufficient flexibility without requiring investment in a robotic system with capabilities beyond the actual application requirements. Depending on the required accuracy, load capacity, and operating speed, CNC VINA can select the appropriate motor and transmission mechanism for each axis.

Industrial robot dispensing

For applications requiring a wide range of motion, high speed, greater flexibility, or integration with automated production lines, an industrial robot can be used to control the adhesive dispensing system. With multiple degrees of freedom, the robot can approach the workpiece from different directions and execute complex trajectories that may be difficult to achieve with conventional linear motion mechanisms.

Industrial robots are particularly suitable for large workpieces, applications with multiple dispensing locations, or processes requiring multiple operations to be integrated within the same working area. For example, the robot can dispense adhesive at multiple locations on a product and then move to another position to perform the next operation, or coordinate with fixtures, conveyors, and other automation equipment.

Another notable advantage of industrial robots is their scalability for future expansion. As production volume increases or the manufacturer seeks to automate additional processes such as product handling, inspection, assembly, or material transfer, the robot can become part of an integrated automation system rather than being limited to adhesive dispensing alone.

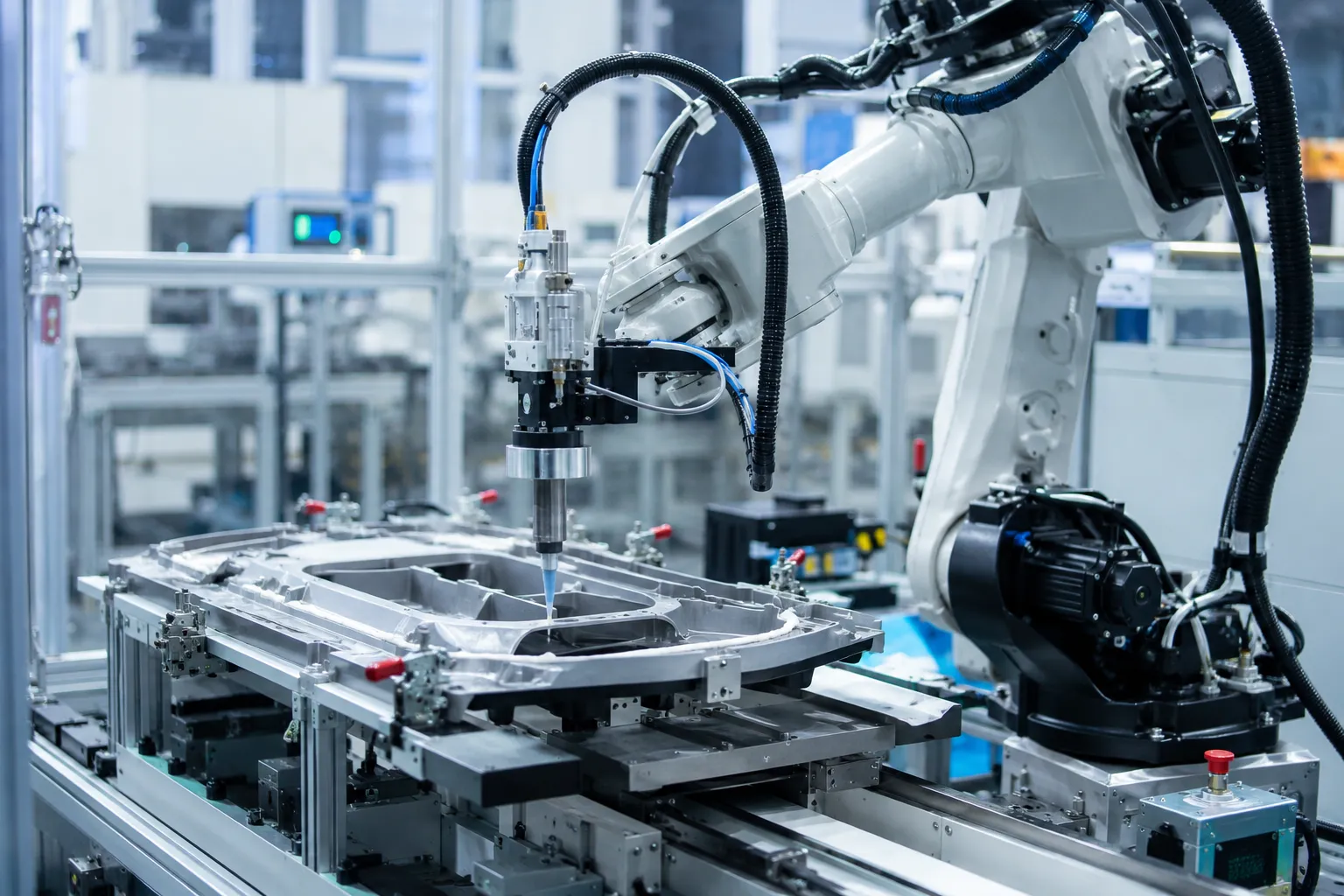

Industrial robot dispensing

Machine Operating Procedure

The basic operating procedure can be carried out through the following steps:

Step 1: Prepare the Adhesive and Inspect the Machine

Check the adhesive level, dispensing system, dispensing nozzle, tubing, pressure, and other required operating conditions.

Step 2: Load the Workpiece onto the Jig

The operator places the workpiece into the dedicated fixture, ensuring that it is correctly positioned.

Step 3: Start the Dispensing Cycle

After confirming that the workpiece has been properly positioned, the operator presses the start button or activates the control mechanism provided on the machine.

Step 4: Automatic Adhesive Dispensing

The pump delivers adhesive to the dispensing nozzle, while the motion mechanism moves the nozzle or workpiece along the programmed trajectory.

Step 5: Complete the Cycle and Unload the Workpiece

Once the adhesive path is completed, the system stops the dispensing cycle. The operator removes the workpiece from the jig and transfers it to the next process. The actual operating procedure can be customized according to the requirements of each production line and the machine's level of automation.

Advantages of Semi-Automatic dispensing and glue application machines

Better adhesive volume control compared with manual application

The adhesive volume is controlled through the parameters of the dispensing system and operating program. As a result, variations between individual products can be reduced compared with fully manual adhesive application. Depending on the adhesive type and product requirements, parameters such as dispensing time, pressure, and nozzle movement speed can be adjusted to achieve the appropriate adhesive volume. This helps stabilize the dispensing process and minimize insufficient or excessive adhesive during production.

Consistent and Uniform Adhesive Beads

The programmed motion mechanism guides the dispensing nozzle along a predefined trajectory. This is particularly important for products requiring continuous adhesive beads with precise positioning and consistent geometry. When the operating parameters are properly configured, the nozzle can maintain a stable movement speed and consistent distance from the product surface throughout the dispensing process.

As a result, adhesive bead quality can be made more consistent from one product to another, while common defects such as misaligned, discontinuous, or inconsistent adhesive beads can be reduced.

Reduced Dependence on Operator Skill

With manual adhesive application, bead quality may vary between operators or production shifts. The machine helps standardize the process and reduce dependence on individual operator skill. Once the dispensing program and parameters have been configured, the operator primarily performs tasks such as loading the workpiece, positioning it on the jig, and starting the cycle. This allows manufacturers to maintain more consistent product quality, particularly for processes requiring highly repetitive operations and precise adhesive application.

Increased Productivity

The machine performs the adhesive dispensing process at a consistent speed, making it suitable for repetitive production. The operator only needs to load and unload the workpiece, reducing the time required for manual adhesive application. When the dispensing cycle is properly optimized, processing time per product can be better controlled while minimizing waiting time between production stages. This provides a practical basis for improving productivity without requiring an immediate transition to a fully automated production line.

Reduced Material Consumption

Precise adhesive volume control helps minimize excessive dispensing, dripping, and adhesive overflow beyond the bonding area. This contributes to lower adhesive consumption and reduced material costs. For high-value adhesives or applications with strict dispensing volume requirements, stable adhesive control can provide significant economic benefits during production. At the same time, minimizing excess adhesive reduces the amount of material that needs to be cleaned or processed after the dispensing operation.

Flexibility for Product Changeovers

For systems equipped with programmable functions, dispensing parameters and trajectories can be modified according to different product models. This is an important advantage for manufacturers producing multiple products on the same system. Operators can select the appropriate program for each product instead of performing the entire adhesive application process manually. When combined with suitable jigs and workholding mechanisms, the machine can accommodate different product configurations and dispensing positions within the same production environment.

Reasonable Investment Cost

Compared with a fully automated production line, a semi-automatic machine generally requires a more moderate investment and simpler configuration, making it suitable for manufacturers looking to automate individual production processes step by step. The operator remains involved in workpiece loading and unloading, while the precision-critical adhesive dispensing process is performed by the machine. This approach allows manufacturers to gradually increase their level of automation without immediately investing in an overly complex system. It is also a practical solution for applications where production volume is not yet high but improved dispensing stability and process consistency are required.

CNC VINA Customized Semi-Automatic Dispensing and Glue Application Machines

CNC VINA provides custom-designed and manufactured semi-automatic dispensing and glue application solutions rather than applying a fixed configuration to every product. Based on the workpiece, adhesive type, required dispensing profile, production capacity, and automation requirements, the engineering team can select the appropriate mechanical configuration, dispensing system, nozzle, motion mechanism, and control system.

Depending on the application, the machine can utilize PLCs, microcontrollers, stepper motors, X-Y-Z mechanisms, mini robots, industrial robots, or rotary jigs. Standard dispensing components from specialized manufacturers can also be selected to meet the technical requirements of each project. For processes requiring additional operations after adhesive application, the system can also be designed to integrate processes such as UV curing, drying, heating, inspection, or conveyor-based product transfer. This enables manufacturers to gradually develop a production process with a higher level of automation.

Semi-automatic dispensing and glue application machines are a suitable solution for manufacturers looking to improve the stability and productivity of their adhesive dispensing processes while maintaining the flexibility of a semi-automatic production model. By integrating the adhesive pump, dispensing nozzle, motion mechanism, jig, and control system, the machine provides better control over adhesive position, volume, and bead geometry for each workpiece. Depending on the characteristics of the adhesive and product, the machine can be configured with various solutions such as X-Y-Z axes, rotary jigs, mini robots, or industrial robots. Selecting the appropriate configuration not only improves adhesive bead quality but also helps reduce material waste, minimize manual operations, and increase production efficiency.

If your company is looking for a dispensing machine, glue application machine, or semi-automatic dispensing system, CNC VINA can provide consultation and develop a solution based on the actual workpiece, adhesive type, dispensing profile, and required production volume. In addition to dispensing machines, CNC VINA also provides related automation solutions, including automatic dispensing and UV curing machines, semi-automatic UV curing machines, and customized automation systems.

To select the appropriate machine configuration, manufacturers can provide a product sample, adhesive specifications, images or drawings of the required adhesive path, and target production volume. Based on these inputs, the machine configuration can be specifically engineered rather than selected from a standard setup.
