Pallet stretch wrapping machine

A pallet stretch wrapping machine is equipment used to secure and protect goods on pallets by wrapping stretch film around the entire load at a preset speed, number of wrapping cycles, and film tension. Depending on the level of automation, the machine can be operated manually, semi-automatically, or integrated into an automated packaging line to meet different production volumes and transportation requirements. Compared with manual wrapping, the machine provides more consistent control over the wrapping process, reduces manual handling, and helps minimize load shifting during storage and transportation. When selecting a suitable machine, businesses should consider factors such as load dimensions, weight, required throughput, and film type. So, what are the main components, operating principle, and applications of a pallet stretch wrapping machine? Let’s explore the details with CNC VINA in the following article.

 Introduction to shrink wrapping machine

In manufacturing and logistics operations, packaged goods need to be securely stabilized before being stored or transported. For goods arranged on pallets, stretch wrapping helps bind individual items into a stable unit, minimizing load movement during handling while providing protection against dust, moisture, and other external factors. As packaging volumes increase, a pallet stretch wrapping machine enables businesses to achieve more consistent control over wrapping speed, the number of wrapping cycles, and film tension compared with manual wrapping methods.

The importance of stretch wrapping in industrial packaging

Stretch wrapping plays an important role in industrial packaging for several reasons. First, it helps secure and protect goods throughout storage and transportation. By tightly wrapping palletized goods with stretch film, the packaging helps protect the load from dust, moisture, and physical impacts while maintaining its overall stability during handling and transportation. In addition, stretch wrapping improves load stability and reduces the risk of goods shifting or falling during transportation, contributing to safer and more efficient handling. The process also supports the organization and modernization of packaging and logistics operations by facilitating the handling, storage, and movement of palletized goods throughout the supply chain.

Benefits of using a pallet stretch wrapping machine

A pallet stretch wrapping machine offers several benefits for businesses involved in manufacturing, warehousing, and packaging operations. One of the key advantages is its ability to provide more consistent control over the wrapping process. By controlling film tension and wrapping parameters, the machine helps maintain a stable layer of stretch film around the load, reducing the risk of insufficient or excessive wrapping and improving load stability. The machine can also improve packaging efficiency by automating a process that would otherwise require significant manual effort. This helps reduce repetitive manual handling and can improve the consistency of film consumption between wrapping cycles. When the appropriate film and wrapping parameters are selected, the machine can also help optimize film usage and reduce unnecessary material consumption.

Another advantage of a pallet stretch wrapping machine is its versatility. Depending on the machine configuration and operating parameters, it can accommodate palletized goods with different dimensions, weights, and load characteristics. This makes stretch wrapping machines suitable for a wide range of manufacturing, warehousing, distribution, and logistics applications.

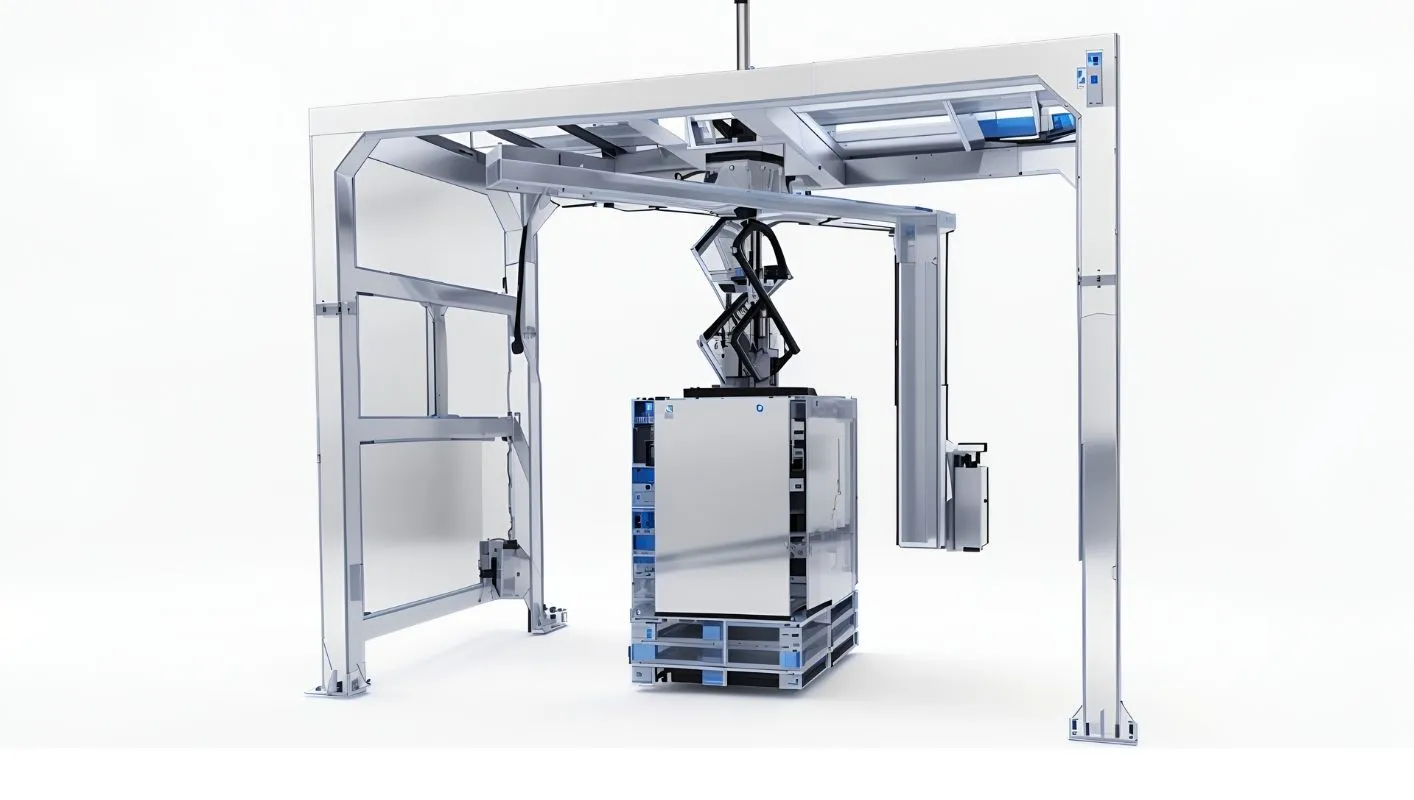

Technical specifications of the pallet stretch wrapping machine

Types of shrink wrapping machines

Manual shrink wrapping machine

Manual pallet stretch wrapping machine: Operating process and features

The manual pallet stretch wrapping machine should be installed in a suitable location that allows convenient loading and unloading of pallets. After the load is placed on the turntable, the operator presses the foot pedal once to start the turntable and begin wrapping the stretch film around the load. Once the wrapping process is complete, the operator presses the foot pedal again to stop the machine, cuts the film, and secures the film end against the load to complete the wrapping cycle.

The pallet stretch wrapping machine consists of a turntable, stretch film holder, and adjustable rollers for controlling film tension, along with a foot pedal for operation. Before starting the wrapping process, the operator only needs to connect the machine to the power supply and position it on a suitable surface that can safely support the weight of both the machine and the load.

Ideal applications for manual pallet stretch wrapping machines

Manual pallet stretch wrapping machines are suitable for small-scale packaging operations where palletized goods need to be secured efficiently without requiring a high level of automation. They are particularly suitable for businesses with relatively low packaging volumes or operations where flexible, operator-controlled wrapping is preferred.

Advantages and Limitations of Manual Pallet Stretch Wrapping Machines

Manual pallet stretch wrapping machines offer advantages in terms of initial investment cost and ease of operation, making them suitable for businesses with low packaging volumes or limited automation requirements. Their relatively simple construction allows for straightforward operation without requiring extensive setup before wrapping. The operator can also adjust the wrapping process and film tension according to the characteristics of each load. In addition, the uncomplicated structure of the equipment makes routine cleaning, inspection, and maintenance relatively convenient.

However, the main limitation of a manual pallet stretch wrapping machine is its dependence on operator involvement. When handling a large number of pallets or oversized loads, manual wrapping can require more time and physical effort. The consistency of the wrapped film also depends on the operator's skills, pulling force, and handling technique, making it more difficult to maintain uniform wrapping results across different pallets without standardized operating procedures. In addition, operators should follow proper working postures and safety procedures

Semi-automatic shrink wrapping machine

How does a semi-automatic pallet stretch wrapping machine work?

With a semi-automatic pallet stretch wrapping machine, the operator places the pallet on the turntable, secures the leading end of the stretch film to the load, and sets the required wrapping parameters. When the machine starts, the turntable rotates to wrap the film around the pallet, while the film carriage controls film feeding and tension during the wrapping process. Once the preset number of wrapping cycles has been completed, the operator handles the film end and removes the pallet from the turntable before starting the next cycle. Compared with fully manual wrapping, the machine provides more consistent wrapping performance while reducing the physical effort required from the operator.

Key features of a semi-automatic pallet stretch wrapping machine

Turntable: The turntable supports the pallet and provides rotational movement during the wrapping process. This movement distributes the stretch film around the load according to the preset number of wrapping cycles and helps achieve consistent film coverage across the pallet.

Film carriage: The film carriage holds and guides the stretch film while controlling film tension during wrapping. Proper tension adjustment helps prevent the film from being either too loose or excessively stretched, contributing to better load stability after wrapping.

Wrapping parameter settings: Depending on the machine configuration, the operator can adjust parameters such as turntable speed, number of wrapping cycles, and film tension. These settings allow the machine to accommodate different load dimensions and characteristics.

Applications of semi-automatic pallet stretch wrapping machines

Semi-automatic pallet stretch wrapping machines are suitable for businesses with moderate pallet packaging requirements that need to improve productivity compared with manual wrapping. They can be used in manufacturing plants, warehouses, distribution centers, and areas where goods are prepared for transportation. These machines are particularly suitable for operations that do not require fully automated packaging but still need consistent control over wrapping speed, the number of wrapping cycles, and film tension.

Advantages of semi-automatic pallet stretch wrapping machines

Improved packaging productivity: The machine automatically performs the wrapping movement once the pallet has been positioned, reducing the time and physical effort required compared with fully manual wrapping.

Consistent wrapping performance: Parameters such as turntable speed, number of wrapping cycles, and film tension can be adjusted according to the machine configuration, helping maintain more consistent film coverage between wrapping cycles.

Suitable for different production scales: With a lower level of automation and investment than a fully automated system, a semi-automatic machine is suitable for businesses looking to improve their packaging operations without requiring a fully integrated packaging line.

Limitations of semi-automatic pallet stretch wrapping machines

Operator involvement is still required: Operators must place the pallet on the turntable, secure the film to the load, and remove the pallet after the wrapping cycle is completed.

Limited throughput for high-volume operations: For packaging lines that require continuous pallet processing and minimal manual intervention, businesses should consider automatic pallet stretch wrapping machines or systems integrated with conveyors.

When businesses need to handle higher packaging volumes and further reduce manual operations, an automatic pallet stretch wrapping machine can be integrated with conveyors and other equipment to create a continuous packaging process.

Automatic shrink wrapping machine

Automatic process and features

An automatic pallet stretch wrapping machine can operate with minimal manual intervention, making it an ideal solution for high-volume packaging and production processes. When goods are wrapped by an automatic pallet stretch wrapping machine, the load is typically transferred by a conveyor system to the wrapping area. The machine then automatically feeds and stretches the film to the required tension, cuts the film after the wrapping cycle is completed, and transfers the wrapped load out of the machine via the conveyor system.

Features of an automatic pallet stretch wrapping machine include:

An automatic pallet stretch wrapping machine is equipped with various features designed to increase the level of automation and maintain consistent pallet packaging performance. The conveyor system allows pallets to enter and exit the wrapping area without manual handling at each cycle, enabling the machine to be connected with upstream and downstream processes. The automatic film carriage feeds and controls film tension and, depending on the configuration, can provide pre-stretching of up to 250%, helping optimize film usage and maintain load stability.

Through the control system, operators can set parameters such as the number of wrapping cycles, wrapping mode, and film tension according to the requirements of different loads. With automatic cycle operation and conveyor integration, the machine is suitable for high-volume packaging lines where reduced manual intervention is required. For safety, the machine may be equipped with features such as safety locks, light curtains, and emergency stop buttons to control the operating area and reduce operational risks. Depending on the configuration, a remote monitoring system may also allow operators to monitor machine status, support fault detection, and assist with equipment inspection and maintenance.

Advantages and limitations of automatic pallet stretch wrapping machines

Advantages

• High efficiency: An automatic pallet stretch wrapping machine can operate quickly and continuously, handling a large volume of goods with minimal downtime. This makes it suitable for industrial operations with high packaging demands.
• Consistent wrapping performance: Processes such as load positioning, film wrapping, film tension control, and film cutting can be automated, helping improve wrapping consistency and maintain more uniform packaging results.
• Reduced labor requirements: Automated wrapping reduces the need for manual intervention during the wrapping process, allowing operators to focus on other tasks and helping reduce labor requirements.
• High throughput: With continuous operation, an automatic pallet stretch wrapping machine can wrap a large number of pallets within a relatively short period, improving overall packaging productivity.
• Control and customization: The control system allows operators to program and adjust parameters according to the requirements of different loads and packaging processes.
• Reduced film consumption: With film-saving functions, the machine can optimize film usage according to load dimensions and wrapping requirements, helping reduce material consumption and packaging costs.

Limitations

• Higher investment cost: Automatic pallet stretch wrapping machines generally require a higher initial investment than less automated solutions. The upfront cost may therefore be a consideration for businesses with limited investment budgets.
• Greater system complexity: Automated systems have more complex structures and control systems and require appropriate technical knowledge for installation, setup, and operation. Businesses may need qualified technicians to maintain and troubleshoot the equipment.
• Maintenance requirements: Regular maintenance is essential to keep the machine operating reliably and minimize interruptions to the packaging process.
• Operator skills: Although automatic pallet stretch wrapping machines require minimal manual intervention during normal operation, operators still need to understand the machine's operating procedures, control system, and safety requirements to operate and maintain the equipment properly.

Components of a pallet stretch wrapping machine

Turntable or rotating platform

Functions and importance of turntables

It is an important component of the shrink wrapping machine with the main function of holding and rotating the pallet during the wrapping process. When the goods are placed on the turntable, the rotating motion helps the film to be wound around the goods, ensuring the necessary tension for the film. Plays an important role in ensuring the film is wrapped evenly, reducing the possibility of goods moving or being damaged during transportation.

Consider materials and design

When designing a turntable for a shrink wrap machine, durable materials such as steel or aluminum are used to be able to withstand the load of the goods and the deterioration caused by the continuous rotation process. The materials selected need to be durable, wear-resistant and able to be used for a long time. The turntable design needs to include features such as anti-slip surfaces, preventing goods from moving during rotation, and the ability to adapt to different sizes and shapes of goods. The speed and direction of the turntable can be adjusted to suit different winding methods and speeds.

The dispenser contains shrink film

The purpose of the shrink film dispenser

Serves to supply film and wrap film around pallets. The film supply unit holds the film roll and is responsible for unloading the film and creating tension for the film when rolling. By controlling and stably tensioning, the shrink film feeder ensures the film is tightly wrapped around the goods. The ability to adjust the film tension of the film dispenser makes it easier to customize for each different commodity.

Methods of using membranes (Pre-stretch, manual)

The pre-tension method involves having the film stretched before being wrapped around the goods, using a feeder with a pre-tension feature to maximize the use of the film roll and the quality of the wrapping.

The manual method depends on the operator's strength to wrap around and create tension for the film, which requires a lot of human strength.

Factors to consider when choosing a shrink film dispenser

• Conformity of the supply unit with the machine model to ensure installation and operation.

• Customizability of the dispenser, flexible with different film types and tensions depending on the nature of the goods.

• Durability and ease of maintenance are also considerations, the membrane feeder needs to withstand long periods of continuous use and require minimal maintenance.

• Membrane dispenser features, whether pre-tensioned or manual.

Control panel and programming options

Overview of control panel features

• Start/stop button: Starts and stops the machine and allows manual control when required.

• Emergency stop: Allows the operator to immediately stop the wrapping process in the event of a fault or emergency.

• Parameter adjustment: Operating parameters can be easily adjusted directly through the control panel.

• Fault diagnosis: Provides real-time information about the machine status, detected faults, and required maintenance.

• Password protection: Prevents unauthorized access and changes to machine operating parameters.

Options for programming load wrapping parameters

The machine's control panel allows operators to set wrapping parameters according to the characteristics of each load. Turntable speed can be adjusted to control the wrapping time and film coverage around the pallet. Film tension can also be set according to the dimensions, weight, and characteristics of the goods, helping prevent the film from being too loose or excessively stretched during wrapping. In addition, operators can set the number of wrapping cycles and select the required wrapping mode, such as spiral wrapping, cross wrapping, or other modes depending on the machine configuration.

Safety features and considerations

The importance of safety features in a pallet stretch wrapping machine

Safety features are essential for protecting operators and maintaining the integrity of the packaging process. Pallet stretch wrapping machines contain various moving components, heavy loads, and potential hazards, such as the turntable and film carriage. Without appropriate safety measures, there is a risk of accidents, injuries, and equipment damage. Therefore, appropriate safety features are necessary to maintain a safe working environment.

Common safety features and their functions

Pallet stretch wrapping machines are commonly equipped with safety features such as emergency stop buttons, which allow the machine to be stopped immediately when a problem or hazardous situation occurs. Light curtains and safety guards help prevent access to hazardous areas while the machine is operating. Shock absorbers and sensors may also be integrated to detect obstacles and stop the machine to prevent collisions. In addition, some machines may have designated safety zones that operators must stay clear of during operation.

Operator training and safety procedures

Although safety features are essential, operator training and compliance with safety procedures are equally important. Operators should receive appropriate training on how to safely operate a pallet stretch wrapping machine, including how to use the machine's safety features. They should also understand potential equipment hazards and follow proper procedures for loading goods, replacing stretch film rolls, and performing machine maintenance.

Safety instructions should be clearly displayed near the machine, emphasizing the importance of safe operation, equipment protection, and proper material handling. Regular inspections and assessments of the packaging process can also help improve workplace safety and ensure that required safety procedures are properly followed.

Key factors and considerations when selecting a pallet stretch wrapping machine

Load capacity and dimensions

Understanding load weight and dimensions

When selecting a pallet stretch wrapping machine, it is essential to understand the weight and dimensions of the loads to be wrapped. This includes the load height, width, and length. Accurately measuring the load ensures that the machine can accommodate the required load characteristics. Overloading the machine may cause equipment damage and reduce operating efficiency, while selecting a machine that is significantly larger than the actual requirements may result in an inefficient investment.

Ensuring compatibility between load requirements and machine capacity

To ensure compatibility with the load, the turntable should have sufficient dimensions to safely support and rotate the load. The machine's turntable or conveyor system should also have sufficient load capacity to handle the heaviest loads expected during operation. This helps ensure stable and efficient machine performance.

Film usage and efficiency

Factors affecting film usage and efficiency

Several factors can affect stretch film consumption, including the wrapping method, film tension, film thickness, and load stability. Understanding these variables helps businesses evaluate film consumption and make more appropriate decisions when selecting a suitable pallet stretch wrapping machine.

Benefits of using less film while maintaining load integrity

Reducing film consumption can lower material costs and reduce the amount of plastic waste generated, contributing to more sustainable packaging operations. Using less film also means that film rolls need to be replaced less frequently, which can help reduce downtime and improve overall line productivity.

Machine durability and maintenance

The importance of machine reliability and durability

A reliable and durable pallet stretch wrapping machine is an important factor in maintaining an efficient packaging process. Reliable equipment helps minimize unexpected breakdowns and maintain stable productivity. Good machine durability and reliability can also reduce maintenance costs, protect packaged goods, and contribute to a more professional packaging operation.

Recommended maintenance practices for pallet stretch wrapping machines

To keep a pallet stretch wrapping machine in optimal operating condition, appropriate maintenance practices should be followed. Regular cleaning, monitoring of component wear, and lubrication of moving parts are important maintenance tasks. Businesses should also follow the manufacturer's recommended maintenance schedule and identify potential equipment issues at an early stage before they develop into major faults. Proper preventive maintenance helps extend machine service life while maintaining reliable and efficient wrapping performance.

A pallet stretch wrapping machine should be selected based on factors such as load dimensions and weight, machine load capacity, required packaging speed, film consumption, and the level of automation required for the production line. A suitable machine not only helps stabilize the wrapping process but also provides better control over film tension, the number of wrapping cycles, and film coverage according to different load characteristics. For businesses with high packaging volumes, selecting a machine that can be integrated with conveyors and other related equipment can further reduce manual handling and maintain a continuous packaging process. In addition to equipment selection, proper operation, regular cleaning, and inspection of moving components are also important for maintaining stable performance and extending machine service life. When delivering equipment, CNC VINA provides the catalogue and guides customers on proper operation, use, and maintenance procedures, helping businesses operate the equipment according to technical requirements. With experience in implementing industrial automation and packaging solutions, CNC VINA can advise on suitable pallet stretch wrapping machine configurations based on each customer's load characteristics, production volume, and operational requirements. Selecting the right configuration from the beginning helps businesses achieve better control over packaging efficiency and load stability during storage and transportation.
