CNC machining service

Precision CNC machining and custom machining services

Precision CNC machining and custom machining services are among the key services developed by CNC VINA to meet a wide range of customer machining requirements. Depending on the part specifications, material, tolerance requirements, and production volume, CNC VINA can implement various machining solutions, including 5-axis CNC milling, 3-axis CNC milling, CNC turning with automatic bar feeding, twin-spindle CNC turning, wire EDM, and waterjet cutting. CNC VINA's CNC machining services are suitable for a wide range of applications, from prototyping and one-off machining to batch and mass production. Machined products include machine components, mechanical parts, automotive and motorcycle components, electronic equipment components, and custom mechanical parts manufactured according to technical drawings. Depending on the technical requirements, parts can be machined from a wide range of materials, including metals, plastics, and composite materials.

The machining process is carried out based on the technical drawings and specific requirements of each product, with particular attention to workholding and fixturing methods, machine and cutting tool selection, machining parameters, dimensional tolerances, and post-machining quality inspection. Selecting an appropriate machining process helps maintain dimensional accuracy, ensure consistent quality across parts, and meet production requirements ranging from small-volume orders to mass production.

CNC machining capabilities

CNC VINA operates a comprehensive range of CNC machining equipment supported by an experienced technical team specializing in precision mechanical machining. The equipment is arranged to accommodate different types of parts and machining requirements, from components with relatively simple structures to complex parts requiring high levels of precision. Depending on the characteristics of each product, CNC VINA can select milling, turning, or other suitable machining processes to meet requirements for dimensions, tolerances, positional accuracy, and surface finish.

CNC turning

CNC VINA provides precision CNC turning services for rotational components with varying dimensional, tolerance, and production requirements. The current equipment includes:

• 30 CNC turning machines.
• 06 twin-spindle CNC turning machines integrated with automatic bar feeding systems.

Combining different types of CNC turning machines enables CNC VINA to select the most suitable equipment based on part characteristics, production volume, and manufacturing requirements. For high-volume orders, automatic bar feeding systems can help reduce manual handling time, maintain consistency between machining cycles, and improve overall production efficiency.

CNC milling

CNC milling is a machining process that uses rotating cutting tools and a CNC control system to shape workpieces according to technical drawings. Depending on the product geometry, number of machine axes, required accuracy, and part complexity, 3-axis, 4-axis, 4+1-axis, or 5-axis CNC milling machines can be selected. When machining parts with multiple surfaces, complex geometries, or multi-directional machining requirements, selecting an appropriate machine configuration can help reduce the number of setups, minimize accumulated deviations, and improve tool accessibility to the areas requiring machining. For each product, the machining method should be determined based on the material, part geometry, tolerances, surface finish requirements, production volume, and actual workholding conditions.

CNC VINA provides CNC milling based on technical drawings and machining requirements, supporting applications ranging from prototyping and one-off machining to batch and mass production. Our technical team works in conjunction with the CNC milling equipment to select suitable machining methods for each type of part, particularly components with complex structures or stringent requirements for dimensional accuracy and positional relationships.

CNC milling machine capabilities

CNC VINA's current CNC milling equipment includes:

• 02 5-axis CNC milling machines.
• 10 4+1-axis CNC milling machines.
• 300 3-axis CNC milling machines.
• A team of more than 20 technicians supporting machining and production operations.

With a wide range of machine configurations, CNC VINA can select suitable equipment and workholding methods based on the characteristics of each part. 3-axis CNC milling machines are suitable for many parts with conventional geometries, while 4+1-axis and 5-axis machines can be used for components requiring multi-face machining or involving complex geometries. The combination of equipment, workholding methods, machining programming, and quality inspection enables CNC VINA to control dimensional requirements, tolerances, positional relationships, and surface finish in accordance with technical drawings.

Wire EDM machining

Wire EDM machining (Electrical discharge machining) is a machining process that uses electrical discharges generated between a wire electrode and the workpiece to cut or profile components. This technology is suitable for parts with complex geometries, profiles that are difficult to machine using conventional cutting methods, or applications requiring high-precision machining of slots, grooves, and intricate contours. Wire EDM can be used to machine a wide range of electrically conductive materials, particularly heat-treated steels and other high-hardness materials. Depending on the material, workpiece thickness, profile geometry, and technical requirements, appropriate machining parameters must be selected to control dimensional accuracy and surface quality. CNC VINA provides wire EDM machining based on technical drawings and machining requirements, supporting one-off parts, prototypes, and production runs. The current equipment includes:

• 05 molybdenum wire EDM machines.
• 03 brass wire EDM machines.

The use of different wire EDM systems enables CNC VINA to select suitable machining methods based on part characteristics, material, and production requirements. For components with complex profiles or areas that are difficult to access using conventional machining methods, wire EDM can provide a suitable solution for producing the required geometry in accordance with technical drawings.

CNC machining service for cutting copper wire

Quality control capacity

CNC VINA is an ISO 9001-2015 certified company, undergoing training, guidance and assessment for IATF certification. To ensure quality before delivering products to customers, the ability to test and control quality is also given top priority by CNC VINA. With the invested equipment, we are confident in controlling quality. the best.

•      05 Automatic CMM measuring machine.
•      05 Hardness measuring machine.
•      01 Profile and roughness measuring machine.
•      01 Scanner.
•      05 (sets) Calipers, clocks, micrometers, height gauges, keels, test batteries, test gauges....

Automatic CMM measuring machine

CNC machining capabilities

CNC VINA provides precision CNC machining for components ranging from standard mechanical parts to complex geometries and tight-tolerance components. Our CNC machining capabilities cover milling and turning operations, with equipment suitable for different workpiece sizes, materials, and production requirements.

CNC milling

Our CNC milling equipment is capable of machining components with complex geometries and demanding dimensional requirements.

• Maximum machining travel: 2,600 × 1,100 × 900 mm
• Minimum machining range: 500 × 400 × 330 mm
• Equipment: CNC machining centers from DMG MORI and FANUC

The available machining range varies by machine and is selected based on the dimensions, geometry, material, and technical specifications of each component.

CNC turning

CNC turning is used to manufacture cylindrical and rotational components with consistent dimensions and repeatable accuracy.

• Maximum machining size: 990 × 430 mm
• Maximum spindle speed: 1,700 rpm

Specific turning capacity, including maximum workpiece diameter and length, depends on the machine configuration and component specifications.

Machining tolerances

CNC VINA applies general dimensional tolerances in accordance with ISO 2768, unless otherwise specified on the technical drawing. The applicable tolerance class is determined based on the drawing requirements and machining specifications of each component.

Materials we machine

CNC VINA sources raw materials with traceable origins and material specifications compliant with applicable ASTM or JIS standards. We select materials based on the required mechanical properties, operating conditions, dimensional stability, surface finish, and application of the finished component.

Metal materials

• Aluminum
• Copper
• Brass
• Stainless steel

Engineering plastics

• POM (Delrin)
• PP (Polypropylene)
• PC (Polycarbonate)
• ABS
• PA (Nylon)
• HDPE
• PEEK
• PE (Polyethylene)

Surface treatment for CNC machined parts

Surface treatment is available as a finishing option for CNC machined components, helping enhance surface protection, appearance, wear resistance, corrosion resistance, or hardness depending on the selected process. CNC VINA can arrange suitable surface treatment based on the material, application, and required finish of each component.

Anodizing

Anodizing forms a protective oxide layer on aluminum surfaces to improve corrosion resistance, surface hardness, and wear resistance. It also provides a consistent decorative finish and is commonly applied to mechanical components, automotive parts, precision equipment, and other aluminum components.

• Material: Aluminum
• Available colors: Black, gray, red, yellow
• Surface finish: Smooth or matte

Electroplating

Electroplating applies a thin metallic coating to the component surface to enhance corrosion resistance, durability, surface properties, and appearance. The plating specification can be selected according to the base material and application requirements.

• Materials: Aluminum, steel, stainless steel
• Available colors: Silver, gold, red, and other colors depending on the plating process
• Surface finish: Smooth or glossy

Polishing

Polishing improves surface smoothness and appearance by removing surface irregularities and refining the machined finish. The final surface finish is controlled according to the material, abrasive grade, and customer specifications.

• Materials: Aluminum, copper, brass, stainless steel
• Color: Natural color of the base material
• Surface finish: Smooth or glossy

Painting and powder coating

Painting and powder coating provide protective and decorative finishes for machined components. Depending on the required coating system, components can be finished using spray painting or electrostatic powder coating. For powder coating, charged powder particles are electrostatically deposited onto a grounded workpiece and then cured to form a durable coating.

• Materials: Steel, stainless steel, cast iron
• Color: According to customer specifications and applicable color standards
• Surface finish: Smooth or glossy

Sandblasting

Sandblasting uses abrasive media to clean and prepare component surfaces, remove contaminants, and create a consistent surface texture. It can also be used as a surface preparation step before painting or other finishing processes.

• Materials: Steel, aluminum, copper, stainless steel
• Color: Natural color of the treated material or according to the subsequent surface treatment
• Surface finish: Matte or textured

Heat treatment

Heat treatment uses controlled heating and cooling cycles to modify the mechanical properties of metal components. Depending on the selected process, it can increase hardness, wear resistance, strength, and service life while meeting the performance requirements of the finished part.

• Materials: Steel and other heat-treatable metals
• Surface: According to the selected heat treatment process and subsequent surface treatment

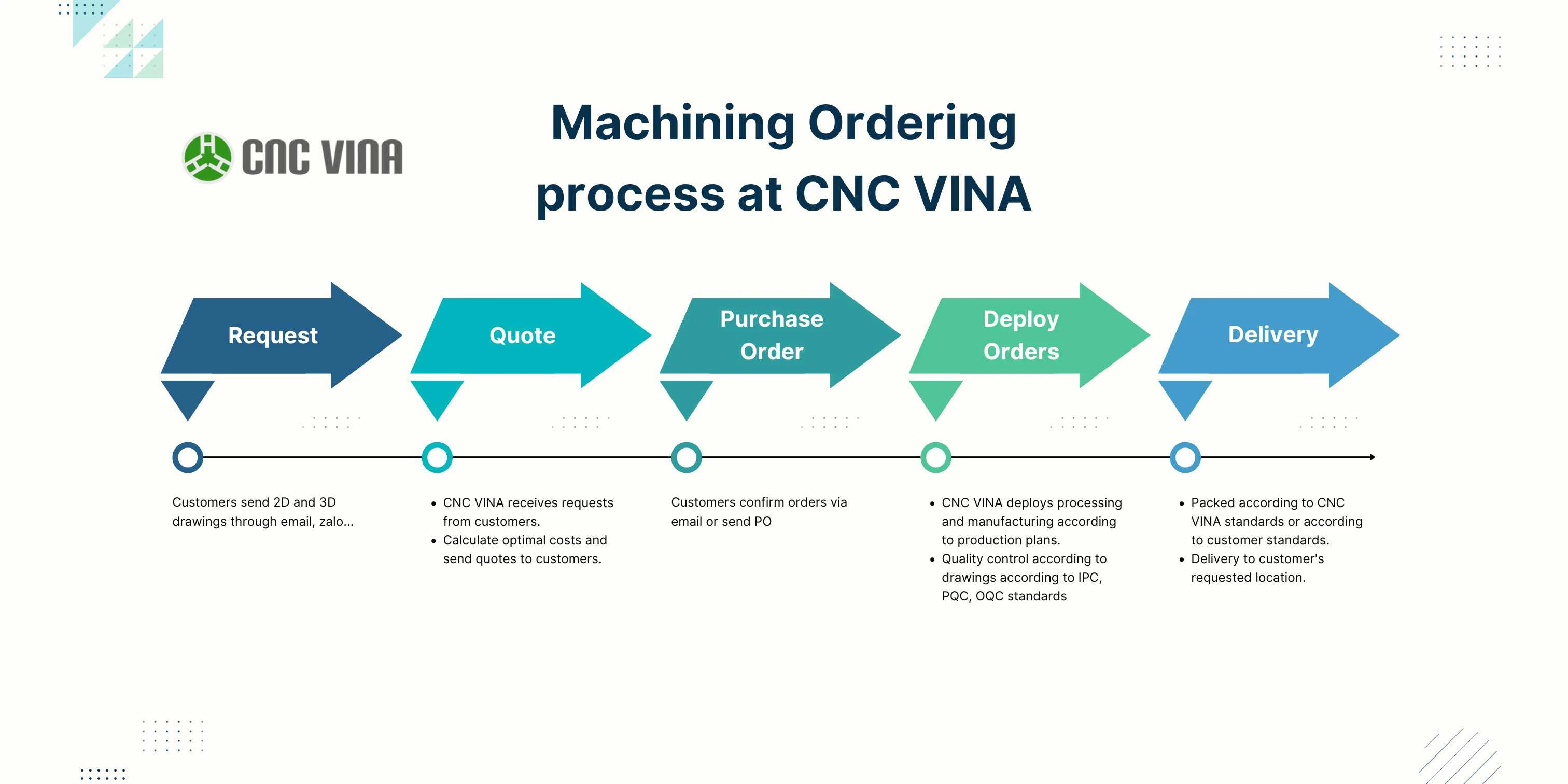

CNC machining ordering process at CNC VINA

Machining ordering process at CNC VINA

Why choose CNC VINA for CNC machining services

CNC VINA provides CNC machining services based on technical drawings and machining requirements, covering applications from prototyping and one-off machining to mass production. Depending on product characteristics, material, tolerances, production volume, and finishing requirements, CNC VINA can select suitable machining methods and equipment for each order. The service process can cover the entire workflow, from drawing receipt, technical requirement analysis, and machining method selection to manufacturing, quality inspection, surface treatment, packaging, and delivery according to customer requirements. Integrating multiple stages into a single workflow provides customers with greater convenience when placing orders and tracking their products.

Diverse machining capabilities

CNC VINA operates a range of equipment for different machining processes, including 3-axis, 4+1-axis, and 5-axis CNC milling, CNC turning, wire EDM, and other suitable machining technologies. Depending on the geometry and requirements of each component, the machining method is selected based on factors such as:

• Material and characteristics of the workpiece.
• Part dimensions and geometry.
• Dimensional and positional tolerances.
• Surface roughness and surface finish requirements.
• Required production quantity.
• Workholding method and accessibility to the machining areas.

Selecting the appropriate equipment and machining process helps achieve better control over product quality, machining time, and production efficiency for each type of order.

From prototypes to mass production

CNC VINA handles a wide range of production volumes, from prototyping and one-off machining to small-batch and mass production. For each production scale, workholding methods, machining programs, machine selection, and production organization can be adjusted to suit actual requirements. For new products or components with complex technical requirements, prototype machining allows customers to evaluate the geometry, dimensions, and compliance with specifications before proceeding with larger production quantities. When transitioning to mass production, the process can be optimized in terms of setup time, machining cycle time, and inspection procedures to maintain consistency across products.

Quality control based on technical requirements

Product quality is controlled based on the technical drawings, tolerances, and specific requirements of each order. CNC VINA is ISO 9001:2015 certified and has a range of inspection and measurement equipment for checking dimensions, geometry, position, hardness, surface roughness, and other relevant technical characteristics. Depending on the requirements, products can be inspected using automatic CMM systems, hardness testers, profile measuring equipment, surface roughness testers, and measuring tools such as micrometers, calipers, dial indicators, height gauges, pin gauges, and inspection gauges. Inspection methods are selected according to the characteristics of each product to identify deviations, control critical characteristics, and verify product conformity before delivery.

Product finishing support

In addition to mechanical machining, CNC VINA can coordinate post-machining finishing processes according to the requirements of each order, including anodizing, electroplating, polishing, sandblasting, painting, and heat treatment. The selection of surface treatment or heat treatment depends on the material, part function, mechanical property requirements, corrosion resistance, hardness, surface roughness, and aesthetic requirements. After finishing, products are inspected, packaged, and prepared for delivery according to the requirements agreed with the customer.

Flexibility for each order

Each CNC-machined product may have different requirements regarding material, tolerances, production volume, machining methods, and delivery schedules. Therefore, CNC VINA reviews technical information and discusses requirements with customers to determine a suitable machining approach before production begins. Customers can provide 2D drawings, 3D models, or other relevant technical information for CNC VINA to evaluate machinability and propose an appropriate production solution. For components with complex structures, discussing machining datums, workholding methods, tolerances, and inspection requirements in advance helps minimize potential issues during production.

Images of CNC-Machined products at CNC VINA

The images below showcase selected products and components machined by CNC VINA, illustrating different product types, materials, and machining processes. The selection of machining methods, equipment, and inspection procedures is determined based on the specific technical requirements of each product.

Lathe processed products

Customers looking for CNC Machining, CNC Turning, CNC Milling, and related machining services are welcome to contact:

VIETNAM TECHNOLOGY APPLICATION & CNC JOINT STOCK COMPANY

Factory: Song Cung Industrial Cluster, Dong Thap Commune, Dan Phuong District, Hanoi, Vietnam

Office: Rox Tower (Rox Center Goldmark City), No. 136 Ho Tung Mau Street, Phu Dien Ward, Hanoi, Vietnam

Tel.: +84.916 63 9355 / +84.915 74 4664

Website: www.cncvina.com.vn ; www.cncvina.net

Email: Sales01@cncvina.com.vn / Sales03@cncvina.com.vn
