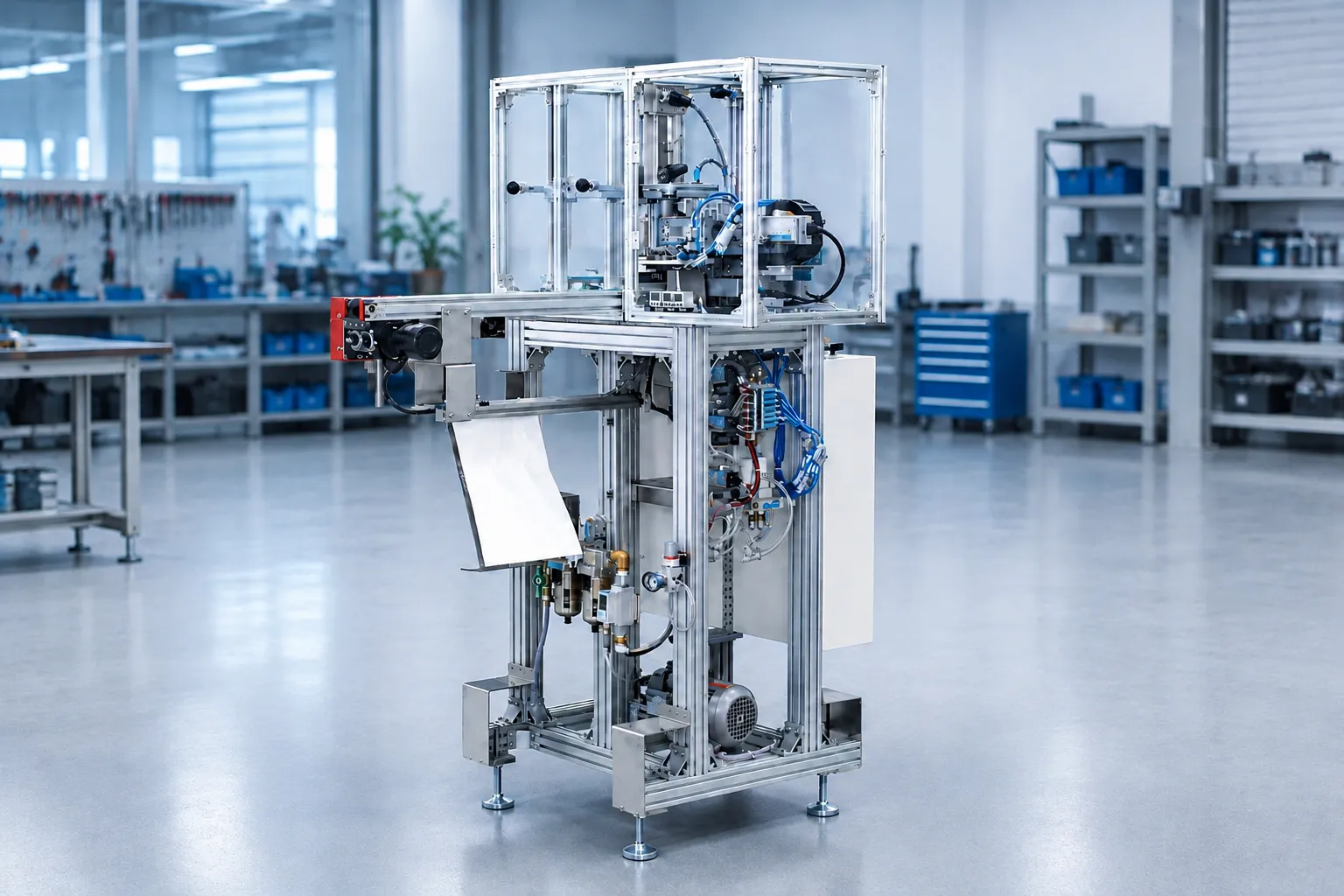

Automatic speaker diaphragm flash trimming machine

Introduction to the Automatic speaker diaphragm flash trimming machine

Automatic speaker diaphragm flash trimming machine is a dedicated automation system designed and manufactured by CNC VINA to automate the removal of excess flash generated during the molding or casting process of speaker diaphragms. The machine integrates a positioning JIG, Robot Cylinder mechanism, trimming die, conveyor system, and sensors to perform a series of operations, including product feeding, positioning, flash trimming, and discharge of the processed products. For speaker diaphragms, flash generated during the molding or casting process needs to be removed before the products proceed to subsequent processing and assembly stages. When this operation is performed manually, operators must repeatedly position and process each individual product, while the quality and consistency of the trimming may vary depending on the operator's technique. For high-volume production lines, automating the flash trimming process provides better control over product positioning, processing sequence, and cycle time, while improving overall production consistency.

CNC VINA’s Automatic Speaker Diaphragm Flash Trimming Machine is developed based on the specific model and process requirements of each product. The machine is configured in a modular structure, integrating the product feeding area, gripping mechanism, trimming die, and conveying system into a coordinated automatic cycle. In addition to speaker diaphragms, this operating principle can also be evaluated and adapted for certain injection-molded plastic products that require flash removal using a dedicated trimming die.

What is an automatic speaker diaphragm flash trimming machine?

The Automatic speaker diaphragm flash trimming machine is an automated system designed to remove excess flash or residual material from speaker diaphragms after the molding or casting process. Instead of manually processing each product with a knife or cutting tool, the machine positions the product in a dedicated trimming die and automatically performs the trimming operation. A typical machine cycle includes receiving the product on a dedicated JIG, conveying it to the feeding position, transferring the product into the trimming die, removing the flash, and discharging the processed product onto the output conveyor. Sensors are installed at critical positions to verify the status of the product and machine mechanisms before the next operation is initiated.

One of the key aspects of the machine is its ability to accurately control product positioning before trimming. For speaker diaphragms with high-precision profiles, the product must be correctly aligned with the trimming die. Therefore, the JIG, gripping mechanism, and trimming die are designed and coordinated according to the specific product model.

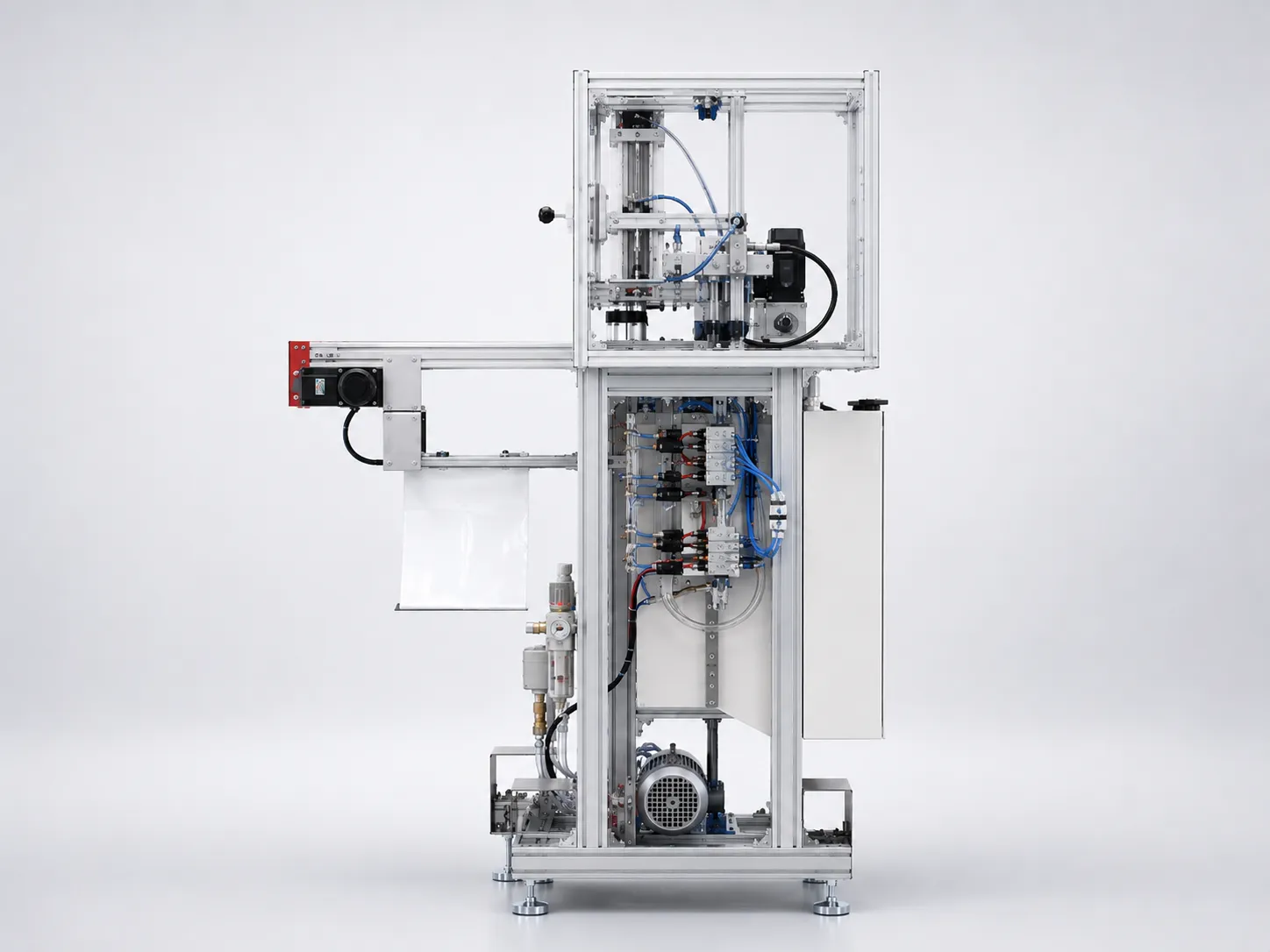

Structure of the automatic speaker diaphragm flash trimming machine



Product feeding and conveying system

After the molding or casting process is completed, the speaker diaphragm is placed on a dedicated JIG. The JIG moves along the conveyor to the machine’s product feeding position. Using a JIG helps maintain a stable product position during transportation. Once the product reaches the designated position, the system verifies its status, and the gripping mechanism picks up the speaker diaphragm and transfers it to the trimming area. After the trimming process is completed, the gripping mechanism transfers the processed product onto the output conveyor. The JIG can then return to its initial position to receive the next product for the subsequent cycle.

Robot cylinder mechanism

The Robot Cylinder serves as the primary motion mechanism for transferring products into the trimming die and removing them after the trimming process. The mechanism operates according to a predefined stroke and sequence, ensuring stable and repeatable product loading and unloading. For a flash trimming machine, the positioning accuracy of the product transfer mechanism is particularly important because the position of the speaker diaphragm before pressing directly affects the final trimming profile. Therefore, the Robot Cylinder is integrated with the JIG and product position detection points to ensure that the product is accurately transferred to the designated working position.

Flash trimming die

The trimming die is the main assembly responsible for removing excess flash from the speaker diaphragm. The die profile is manufactured according to the shape of the product and the specific areas where flash needs to be removed for each model. Using a dedicated trimming die enables the cutting operation to be repeatedly performed along the same profile during each production cycle. This provides a reliable basis for maintaining consistency in the processed products. When customers manufacture multiple speaker diaphragm models, the trimming dies and product fixtures can be designed accordingly for each product rather than using a single fixed configuration for all models.

Sensor system

Sensors are installed at product loading and trimming positions to detect the status and position of the product. This system enables the machine to verify the required conditions before proceeding to the next operation. Sensor-based verification is particularly important around the trimming die. The product must be accurately positioned before the trimming cycle begins in order to minimize errors caused by incorrect product feeding or positioning.

Pneumatic and control system

The machine incorporates a pneumatic assembly and control components within the machine frame. The pneumatic system supplies and regulates compressed air for pneumatic actuators used during product feeding, gripping, positioning, and processing. All mechanisms operate according to the programmed control sequence to ensure that the machine performs each operation in the correct order: product receiving, positioning, gripping, trimming, product unloading, and transition to the next cycle.

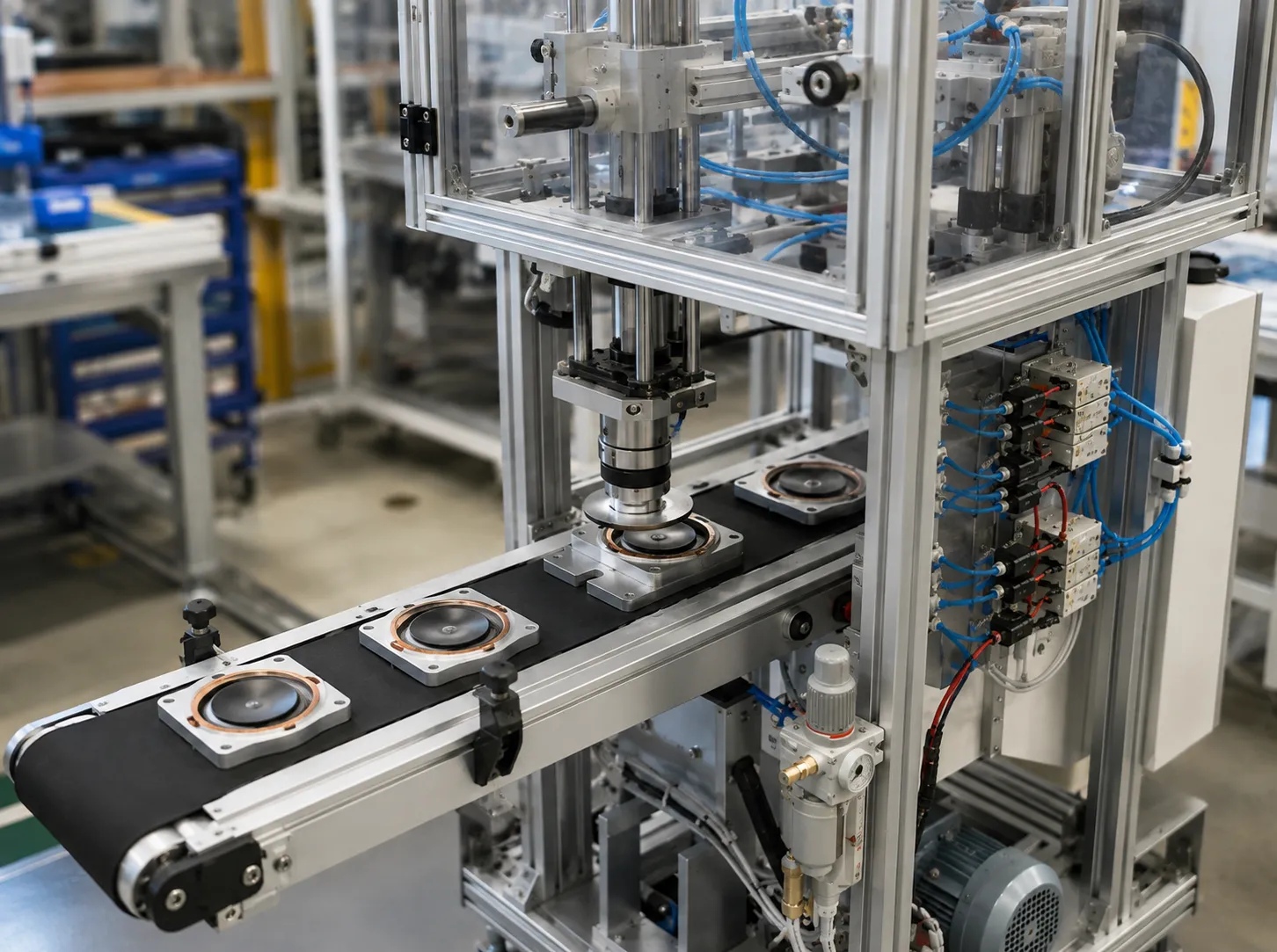

Operating principle of the automatic speaker diaphragm flash trimming machine

The machine is designed for continuous automated operation, minimizing direct manual intervention during the production process.

First, the speaker diaphragm is placed on a dedicated JIG after the molding or casting process. The JIG carrying the product moves along the conveyor to the machine’s feeding position. Once the JIG reaches the designated position, sensors verify its status, and the control system allows the gripping mechanism to begin operation.

The robot cylinder moves the gripping mechanism to the product pick-up position. The speaker diaphragm is picked up from the JIG and transferred into the trimming die. At this stage, the product is positioned according to predefined reference points to ensure accurate alignment between the product and the die profile.

Once the system confirms that all required trimming conditions have been met, the pressing mechanism performs the trimming operation. The excess flash outside the specified profile is separated from the speaker diaphragm, while the portion of the product that needs to be retained remains intact according to the designed shape. After the trimming operation is completed, the robot cylinder removes the speaker diaphragm from the die and transfers it to the output conveyor. The trimmed product is then conveyed to the next production stage, while the JIG returns to its initial position to receive a new product. The entire process is repeated according to the preset operating cycle.

Sensors installed at the product pick-up and trimming positions continuously monitor the operating conditions, helping prevent the machine from executing an incorrect sequence when the product has not been properly positioned.



Speaker membrane details before and after being cut on CNC VINA's automatic machine

Key features of the automatic speaker diaphragm flash trimming machine designed and manufactured by CNC VINA

The automatic speaker diaphragm flash trimming machine designed and manufactured by CNC VINA is developed based on the actual requirements of each product and production process, rather than using a fixed configuration for all models. Based on the dimensions, shape, flash location, and processing requirements of the speaker diaphragm, CNC VINA designs the JIG, trimming die, feeding and gripping mechanisms, and conveying system as an integrated solution to ensure accurate product positioning before trimming. This approach enables the equipment to flexibly meet the specific requirements of different production lines and can also be adapted for selected injection-molded plastic products with similar processing characteristics.

The machine is designed to automate the entire processing cycle. The conveyor system transports the JIG and products, while the Robot Cylinder performs the gripping operation, transfers the product into the trimming die, and then removes the trimmed product from the processing area. Sensors are installed at critical positions to monitor the product status and positioning, allowing the system to proceed to the next operation only when the required conditions have been satisfied. The machine is constructed with an aluminum extrusion frame, with mechanical assemblies and pneumatic components neatly integrated within the machine body, forming a dedicated system capable of stable operation and convenient integration into existing production lines.

The automatic speaker diaphragm flash trimming machine is a specialized piece of equipment used in the production of speaker diaphragms and other injection-molded plastic components. With automated operation, high positioning accuracy, and increased production efficiency, the machine helps maintain consistent product quality while improving overall manufacturing productivity. The application of automatic flash trimming technology provides significant operational and technological benefits for businesses in the electronic components and equipment assembly industries.
