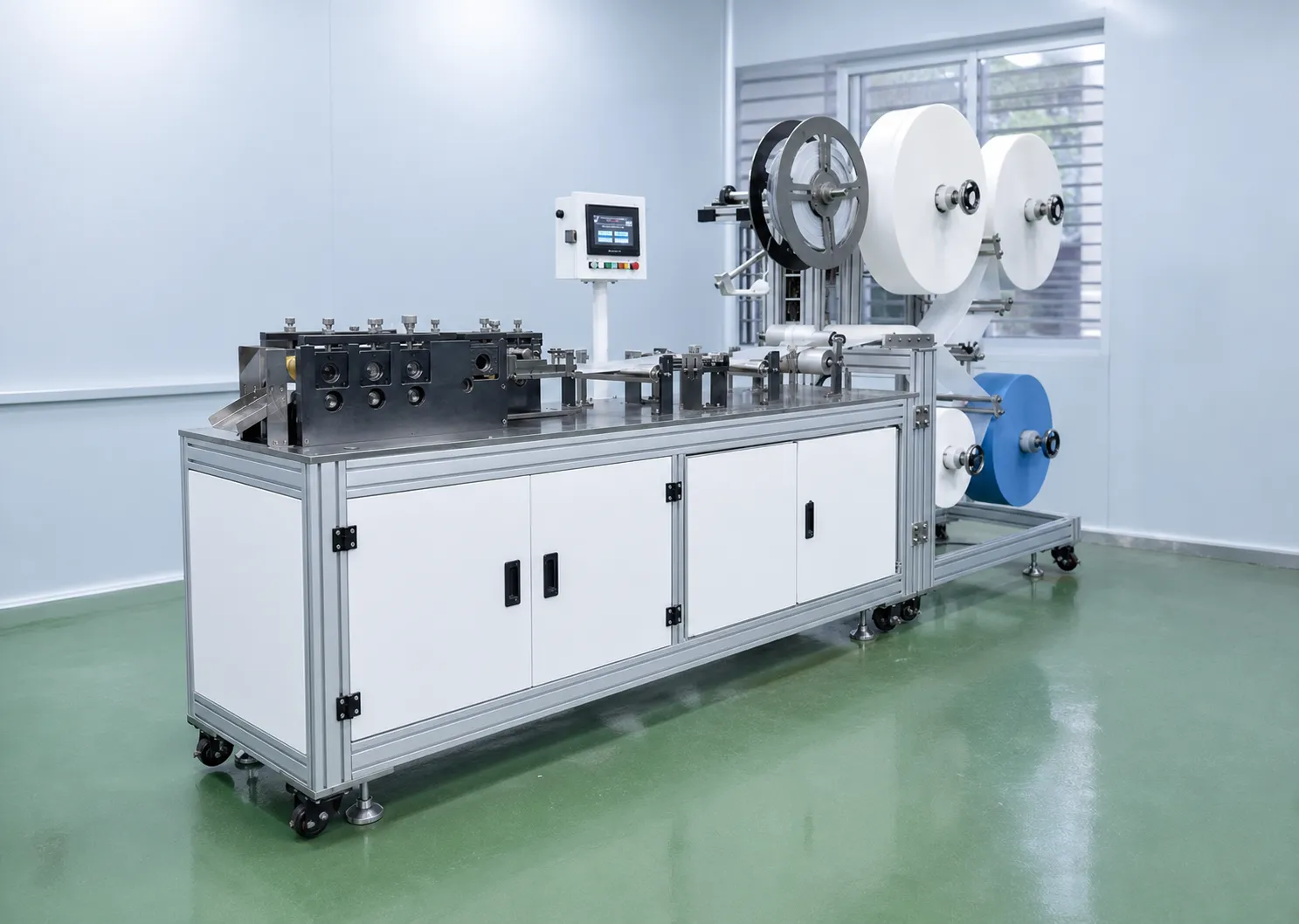

Mask body welding machine

The automatic mask body welding machine is a specialized piece of automation equipment used to form and weld multiple layers of material, creating the mask body before it moves to the earloop welding and finishing stages. Compared with manual processing, the machine provides stable control over material feeding, pleat forming, positioning, and mask body welding, helping increase production capacity while maintaining consistent product quality.

For mask manufacturers, selecting the right mask body welding machine involves more than production capacity alone. Key factors such as operating stability, adaptability to different product sizes, level of automation, integration with downstream equipment, and ease of maintenance should also be considered. With extensive experience in designing and manufacturing automation equipment, CNC-VINA provides mask body welding machines and customized mask production line configurations based on the actual production requirements of each customer.

So, how does an automatic mask body welding machine work, what are its key features, and what types of production operations is it suitable for? Let’s explore the details with CNC-VINA in the following sections.

What is a mask body welding machine?

A mask body welding machine is specialized equipment used to process the main body of a mask from multiple layers of non-woven materials. Depending on the machine configuration, the system can perform material feeding, guiding, pleat forming, positioning, and ultrasonic welding of the material layers. In a medical mask production line, the mask body welding machine is typically positioned at the initial stage of the process to produce the mask body blanks. Once the mask body has been formed and welded, the blanks can be transferred to the mask body welding machine for earloop attachment and further finishing processes.

Ultrasonic welding is used to bond layers of non-woven fabric without the need for sewing threads or adhesives. The welding process is controlled by an automated control system, helping maintain consistent welding positions and product geometry throughout continuous production.

Depending on production requirements, the machine can be designed for adult masks, children's masks, or other product sizes. The machine configuration can also be customized according to production capacity, material specifications, available factory space, and the required integration with other equipment in the production line.

Key features of the mask body welding machine manufactured by CNC-VINA

When investing in mask production equipment, manufacturers are increasingly looking beyond production capacity to factors such as operating stability, ease of maintenance, and flexibility in equipment configuration. In particular, with fully imported production lines, replacing components, troubleshooting, or modifying the equipment to meet specific product requirements can sometimes be challenging.

As a company that directly designs, manufactures, assembles, and integrates automation equipment in Vietnam, CNC-VINA can proactively customize machine configurations according to each customer's requirements. The mask body welding machine features a modular design, making it convenient to install, operate, maintain, and expand as production requirements evolve.

Video of automatic mask body welding machine with capacity up to 120 pieces/minute

Designed for mask production in Vietnam

CNC-VINA focuses on developing machine configurations that are suited to actual factory operating conditions, including power supply, compressed air requirements, installation space, and production capacity. Rather than applying a fixed configuration to every manufacturer, the machine can be customized according to the mask type, product dimensions, number of material layers, and the required connection with downstream processes.

For manufacturers that do not need to invest in a complete production line from the outset, the mask body welding machine can be deployed as an independent module. As production demand increases, additional equipment such as an earloop welding machine, automatic feeding system, conveyor, inspection equipment, or packaging modules can be integrated to expand the production line.

Precision machining and a structure designed for automated operation

The machine frame is constructed from materials suitable for industrial production environments, combining aluminum profiles, anodized aluminum, plated steel, and stainless steel. Critical mechanical components are precision-machined using CNC machines to ensure dimensional accuracy and proper alignment between mechanical assemblies during installation and operation.

Surfaces that come into direct contact with, or may come into contact with, masks are preferably made of stainless steel to facilitate equipment cleaning and maintenance. The machine features a modular design with casters and adjustable leveling feet, making it easier to move, level, and install in different areas of the factory. This structure also provides convenient access to mechanical assemblies when inspection, adjustment, or maintenance is required.

Mask body welding machine designed and manufactured by Vietnamese engineers

Stable ultrasonic welding system

Ultrasonic welding is one of the key technologies used in mask production. The system uses ultrasonic vibrations to create bonds between layers of material at the required welding points, reducing reliance on sewing or adhesive materials.

CNC-VINA uses ultrasonic generators and welding horns selected according to the technical requirements of each machine configuration. Some configurations use ultrasonic generators with a power output of approximately 2,000–3,000 W and a frequency of 15 kHz, depending on the material, product structure, and required weld characteristics.

Selecting a suitable ultrasonic generator and welding horn helps maintain welding stability while minimizing issues related to welding position and joint quality during continuous production.

PLC control and intuitive HMI interface

The machine's control system is built on a PLC combined with an HMI, allowing operators to monitor equipment status and adjust the necessary parameters directly from the screen.

The HMI interface is programmed by CNC-VINA according to operating requirements and supports both Vietnamese and English. Information related to machine status, operating modes, and warnings can be displayed clearly, making it easier for operators to monitor the equipment during production.

The control system can also be integrated with other automated mechanisms when the machine is connected as part of a complete production line.

Use of widely available industrial components

Depending on the machine configuration and technical requirements, the equipment can use electrical, control, and pneumatic components from widely recognized industrial brands such as Mitsubishi, Delta, Panasonic, SMC, and other suitable suppliers.

The use of standard industrial components makes maintenance, replacement, and troubleshooting more convenient during operation. It also allows manufacturers to take greater control of spare parts availability when the equipment is operated over an extended period.

Technical specifications of the mask body welding machine

Actual production capacity and finished product yield may vary depending on material specifications, mask dimensions, machine configuration, and operating conditions.

Advantages of a semi-automatic mask production line

A semi-automatic mask production line combining a mask body welding machine with related modules can help manufacturers balance the level of automation with investment costs. Compared with a fully manual production process, the system reduces the number of direct manual operations while providing better control over product forming and welding processes.

Reduced direct labor requirements

With a semi-automatic configuration, operators primarily perform tasks such as loading materials, monitoring machine operation, inspecting finished products, and handling any issues that may arise.

Depending on the production line configuration, the system can typically be operated by approximately 1–2 workers, helping reduce the amount of direct labor required for the production process.

All surfaces in contact with the mask are made of stainless steel.

Ultrasonic welding source imported from Korea with high stability - the heart of the mask body welding machine

Quality control and product consistency

Material feeding, guiding, pleat forming, and welding are carried out according to a predefined sequence programmed into the control system. This helps reduce variations between products caused by manual operations and maintain consistent performance during continuous production. Under the reference configuration, the finished product yield can reach approximately 95–99% when the equipment is operated with suitable material specifications and technical parameters.

Easy operation, maintenance, and improvement

The machine is designed with a modular structure, with mechanical, electrical, and control assemblies arranged relatively independently. This design makes it easier for technicians to inspect the equipment, perform maintenance, and replace components when necessary. As CNC-VINA directly designs and manufactures the equipment, requests for improvements or configuration changes can also be considered based on the manufacturer's actual products and production conditions.

Key features of the mask body welding machine

The mask body welding machine can be configured with various features to support the mask body forming process, including:

• Production of 3–4 layer mask bodies.

• Material guiding and alignment mechanisms.

• Pleat and wave forming mechanisms for the mask body.

• Ultrasonic welding of material layers.

• Intuitive HMI control interface.

• Easy adjustment and calibration of operating parameters.

• Modular design for convenient installation and maintenance.

• Capability to be upgraded or integrated with additional modules according to production requirements.

Applications of the mask body welding machine in a mask production line

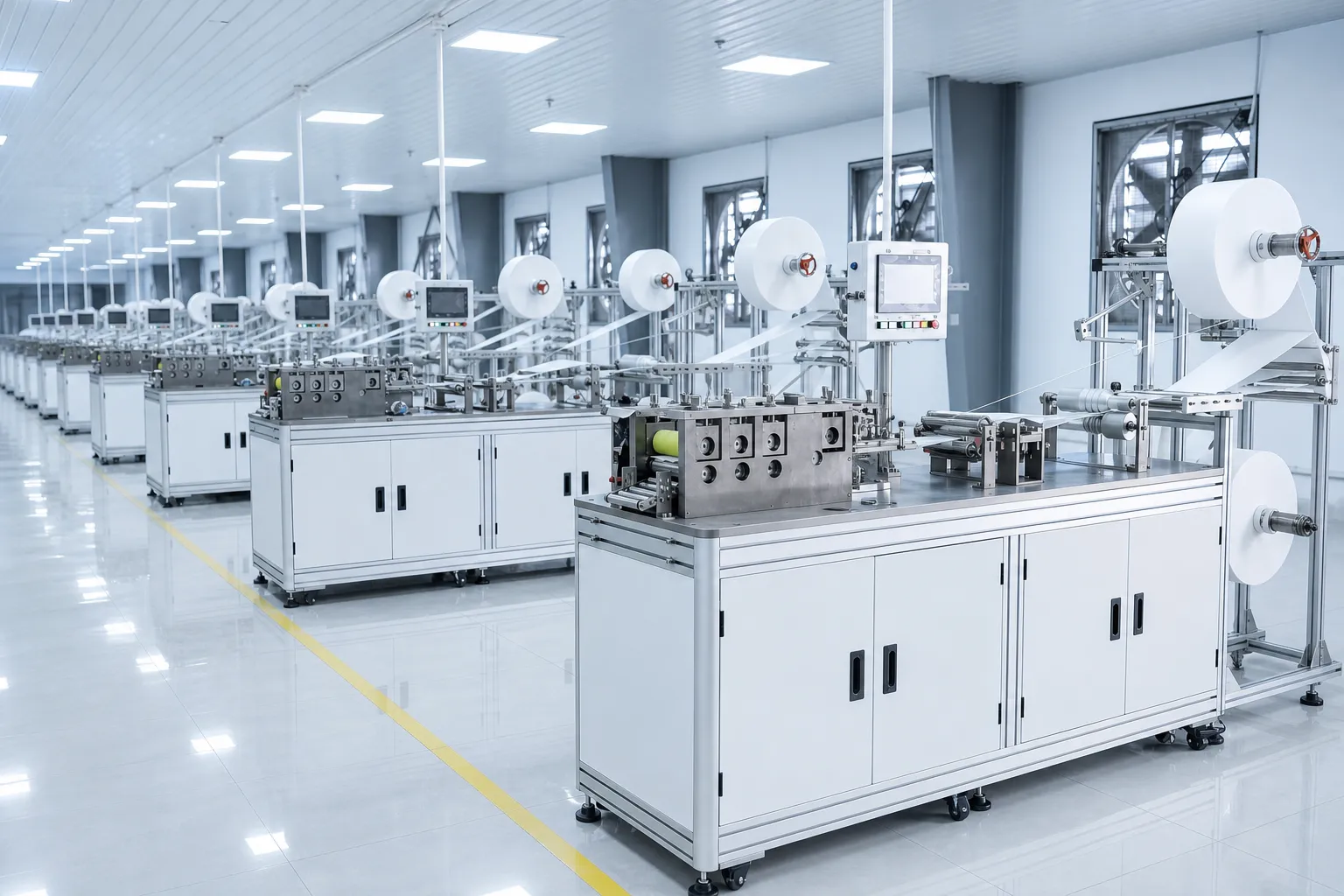

In a complete mask production line, the mask body welding machine is responsible for forming mask blanks from the incoming layers of material. Once the mask body has been formed and welded, the product can be transferred to subsequent processes for earloop attachment, inspection, and packaging. Depending on the required level of automation, manufacturers can operate the mask body welding machine as a standalone unit or integrate it with other modules through conveyor and automatic feeding systems.

A typical production line configuration may include:

Material feeding → Mask body forming and welding → Blank cutting/finishing → Earloop welding → Inspection → Packaging

With its modular design, manufacturers do not necessarily need to invest in the entire production system from the outset. They can initially deploy a mask body welding machine or an earloop welding machine, then add the remaining modules as production volume increases or a higher level of automation is required.

CNC-VINA – Design and manufacturing of Made in Vietnam mask body welding machines

One of the advantages of choosing a mask body welding machine manufactured by CNC-VINA is the ability to work directly with the company's technical team throughout the equipment design and implementation process. CNC-VINA provides services covering configuration consulting, mechanical and electrical design, machining, assembly, programming, integration, installation, commissioning, operator training, and maintenance. For manufacturers with specific requirements regarding product dimensions, production capacity, or factory layout, the machine configuration can be customized from the design stage. This approach allows manufacturers to gradually develop an automated production line instead of being fully dependent on a fixed equipment configuration.

Contact CNC-VINA for mask body welding machine consultation

If your company is looking for a Made in Vietnam mask body welding machine, mask production equipment for adult or children's masks, or a production line designed according to actual production capacity, CNC-VINA can provide consultation on a suitable configuration. Customers can discuss requirements with CNC-VINA regarding mask dimensions, number of material layers, target production capacity, level of automation, installation space, and integration with existing equipment. Based on these requirements, the technical team can recommend a suitable design, manufacturing, and implementation solution.

CNC-VINA also supports customers with production line design, manufacturing, installation, commissioning, operator training, and system upgrades according to specific requirements. Manufacturers can arrange a factory visit to see Made in Vietnam mask body welding machines in operation, discuss their requirements directly with the technical team, and evaluate the investment options before implementation.
